May. 14, 2025
Currently, there is a trend towards the enclosed and large-scale development of ferroalloy submerged arc furnaces. Guizhou Province, as a major ferroalloy production region in China, exhibits unique characteristics in the development of its ferroalloy submerged arc furnaces. Due to the unique regional natural climate characteristics and differences in industrial technology base, large-scale submerged arc furnaces are not suitable for the production of ferroalloys in Guizhou Province. Practice has shown that the comprehensive production indicators of a 16500KVA submerged arc furnace are superior to those of larger furnaces of 25500KVA and above. This article focuses on the technical equipment characteristics of the 16500KVA ferroalloy submerged arc furnace, taking into account the particularities of Guizhou Province, and provides an introduction and analysis from aspects such as main equipment and characteristics, electric furnace structural types, and main technical parameters.
(1) The primary equipment, a 16500kVA electric furnace, employs a low-hood semi-enclosed fixed furnace body. The smoke hood features a polygonal design with three flue outlets and is equipped with three hydraulic furnace doors. This furnace type facilitates smoke abatement and dust removal. The sealing of electrodes, furnace doors, and material tubes all utilize gas seals.
(2) The three electrodes of the electric furnace are arranged in an equilateral triangle configuration, with one phase positioned at the front and two phases positioned at the rear.
(3) The mechanism for the elevation and lowering of the electrode utilizes a fully hydraulic system. The clamping system offers both manual and programmable control modes. The electrode holder incorporates a bellows pressure ring.
(4) The electric furnace power regulation achieves automatic power adjustment, and the electrode pressure release implements automatic voltage-controlled release.
(5) The primary characteristic of the selection of electric furnace transformers is the adoption of on-load electric voltage regulation, with the secondary side featuring side outlet lines, and the commonly used voltage levels set within the constant power range.
To prolong the service life of electric furnace equipment, reduce thermal shutdowns, and enhance operational efficiency, the lower section of the electric furnace chimney and the sealing device are cooled using water.
(7) The processes of batching, feeding, and furnace top material distribution are controlled by centralized programming, striving for mechanization, coordinated operations, or remote control.
(8) The product casting is conducted using a floor mold casting process, wherein slag automatically flows into the slag pool through a chute for water quenching and refinement.
Adhering to the comprehensive principle that 'high-quality feedstock is the foundation, equipment technology is the condition, and operational management is the key', is a crucial assurance for obtaining superior products and advanced technological-economic indicators.

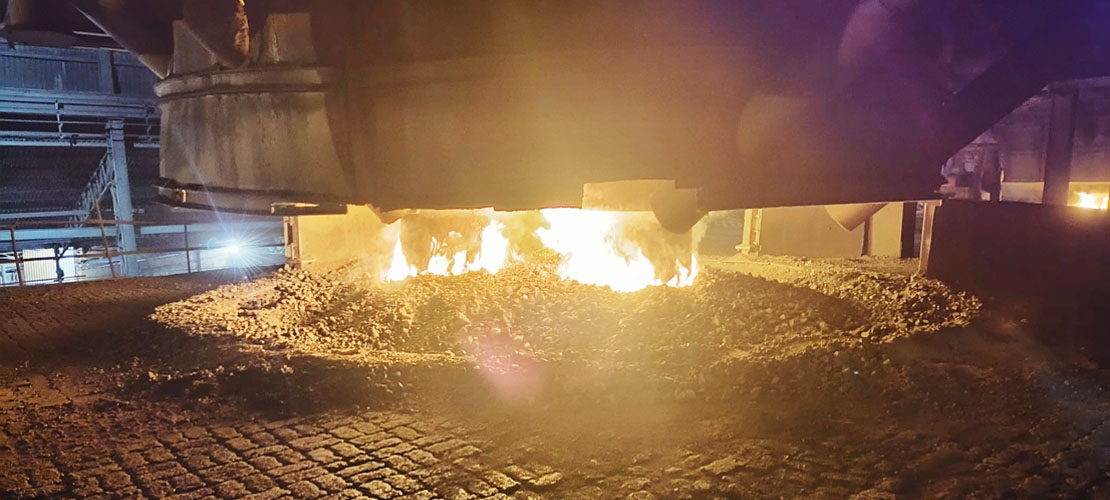

The structural type of the electric furnace is characterized by a semi-enclosed low-hood, hydraulic, stationary electric furnace.
(1) Electrode system. The elevation of the electrodes is facilitated by a hydraulic lifting cylinder, which is conducive to power regulation.
The electrode holder utilizes a combined holder structure that is currently more advanced domestically, replacing the conventional conductive jaw plate with a contact element. This design features lightweight, excellent conductivity, reliable use, long lifespan, and the capability to achieve voltage discharge, with a high degree of automation. The current is channeled into the contact element through a copper tube, and then flows into the electrode via the electrode shell fins.
(2) Furnace lid and smoke exhaust system. The furnace lid is a regular hexagon, approximately 1800mm in height. The inner side of the lid's side walls is rammed with high-alumina refractory castable. Both the framework and the lid plate are water-cooled, and the inner side of the lid plate is also rammed with high-alumina refractory castable. The furnace lid is equipped with a flue gas exhaust pipe.
The purification of furnace gas employs a dry dust removal system, with a site reserved for the construction of a complementary waste heat power generation system, to achieve the effective utilization of flue gas waste heat energy.
The furnace top sealing technology employs the 'gravity self-adjusting sealing packing' technique. Insulated furnace lining is utilized. The core section of the furnace lid incorporates current stainless steel technology.
(3) Water cooling system. Softened water is employed for cooling water in electric furnaces, preventing scaling of cooling components, thereby extending their service life and reducing the frequency of hot shutdowns.
(4) Furnace Body. The furnace body is composed of a furnace shell and a furnace lining, both fabricated from steel plates of a certain thickness. The furnace shell adopts a cylindrical shape, which offers a small heat dissipation area, high strength, ease of processing, and is conducive to energy conservation. Each electric furnace is equipped with two tap holes, arranged at an angle of 180°.
The 16500kVA silicon-manganese alloy electric furnace comprises various components, including the furnace shell, smoke hood, electrode system, charging device, circulating water cooling system, electrode sealing system, hydraulic transmission system, and electrical equipment.
This article presents an analysis of the specific circumstances of a project in Guizhou Province, focusing on the technical equipment characteristics of a 16,500KVA ferroalloy submerged arc furnace. Taking into account the unique characteristics of Guizhou Province, the article provides an introduction and analysis from various aspects, including the main equipment and its features, the structural types of electric furnaces, and key technical parameters. This aims to facilitate the better development and expansion of the ferroalloy industry in Guizhou Province, recognized as a major producer of ferroalloys.
