There are many insulation links between the EAF electrode holder and the conductive cross arm body, which greatly simplifies the cconductive cross arm structure and is a new type of electrode arm on the ultra-high power arc furnace.

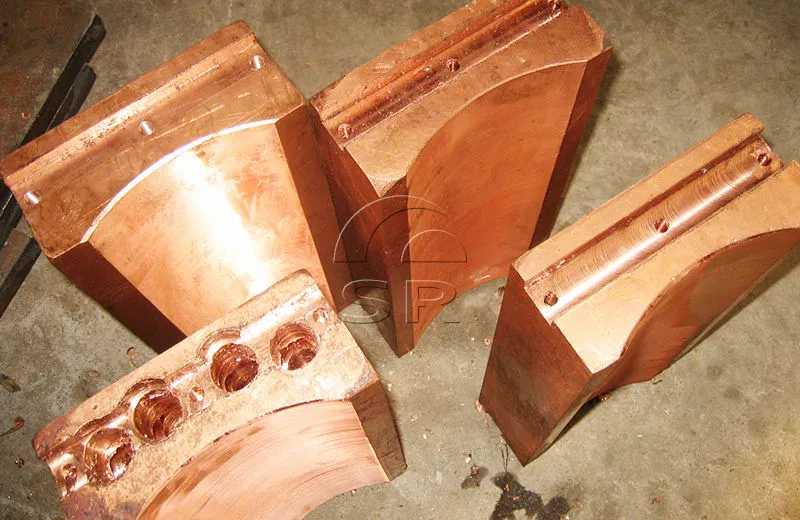

Conductive Cross Arm Introduction
There are many insulation links between the EAF electrode holder and the conductive cross arm body, which greatly simplifies the cconductive cross arm structure and is a new type of electrode arm on the ultra-high power arc furnace.
Electrode Holder Advantages
Hollow section and double-layer copper-steel composite plate are adopted, greatly reducing skin effect, reducing impedance and improving electric heating efficiency;
The box structure with hollow section and the internal water cooling channel greatly enhance the strength of the cross arm, which is conducive to electrode movement adjustment without causing vibration, and is conducive to arc stability;
The weight is lighter than the traditional steel tube conductive cross arm and the inertia is small, which is conducive to frequent lifting and adjustment of the electrode.
The requirements for conductive cross arm are light weight, good rigidity, small impedance and long service life. The electrode arm is supported on the column at one end and holds the electrode at the other end, with lifting function. The weight of the conductive cross arm is light, which means that the driving work for the lifting and regulating movement of the electrode column is relatively reduced, etc.

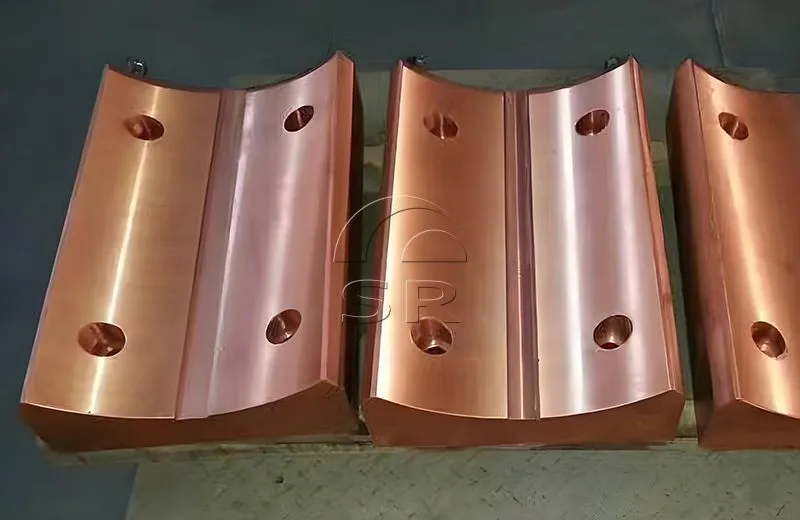

The electrode holder adopts T2 red copper with good performance. The graphite eletrode holder made by forging and cold processing can ensure good water cooling effect, improve conductivity, prevent arc strike and extend service life.
Related Products
Customized metallurgical machinery and equipment range: Electric Arc Furnace, Submerged Arc Furnace, LF Refining Furnace, Vacuum Furnace, Induction Furnace, Dust Remove System, Water Treatment Equipment, etc. Providing the most advanced equipment integration services, metallurgical equipment can be customized according to different needs of customers, and production capacity can be adjusted according to customer requirements.
Slag ladle, also name as slag pot, slag landler, slag tank, cinder pot. It is an important part in steel making production. It is used to hold the high temperature molten slag generated in the process of steel smelting.
Ordinary water-cooled cable electrode is welded with copper tube and copper bar and not closely connected with equipment;
Submerged Arc Furnace Water-cooled Roof
Submerged arc furnace water-cooled Roof is an important part of submerged arc furnace (also known as electric arc furnace, calcium carbide furnace or mining furnace), which is mainly used to close the top of furnace body and bear the high temperature and pressure in the furnace.
The submerged arc furnace water cooled compensator is a pipe device composed of inner and outer tubes, water tubes, elongation indicators and fixed supports.
The electrode lifting mechanism of electric arc furnace is composed of conductive cross arm and electrode column device.
Submerged Arc Furnace Pressure Ring
Submerged arc furnace pressure ring is used to monitor the change of air pressure in the furnace in real time, and adjust the air pressure automatically or manually according to the preset parameters to ensure the stability of air pressure in the furnace
The conductive arm of an electric arc furnace (EAF) is primarily composed of the front electrode conductive arm holder, a water-cooled clamping ring, the arm body, and the rear conductive copper plate.
Water Cooled Roof Elbow for Fume Extaction System
The Water Cooled Roof Elbow is mainly used to change the flow direction of flue gas in the flue gas emission system. Meanwhile, the water cooling system is used to reduce the temperature of the bend and its surrounding environment to ensure the stable operation of the system.
