Submerged Arc Furnace Pressure Ring

Submerged arc furnace pressure ring is used to monitor the change of air pressure in the furnace in real time, and adjust the air pressure automatically or manually according to the preset parameters to ensure the stability of air pressure in the furnace, prevent smelting problems or safety accidents caused by too high or too low air pressure, and ensure the normal operation of the submerged arc furnace.

Share:

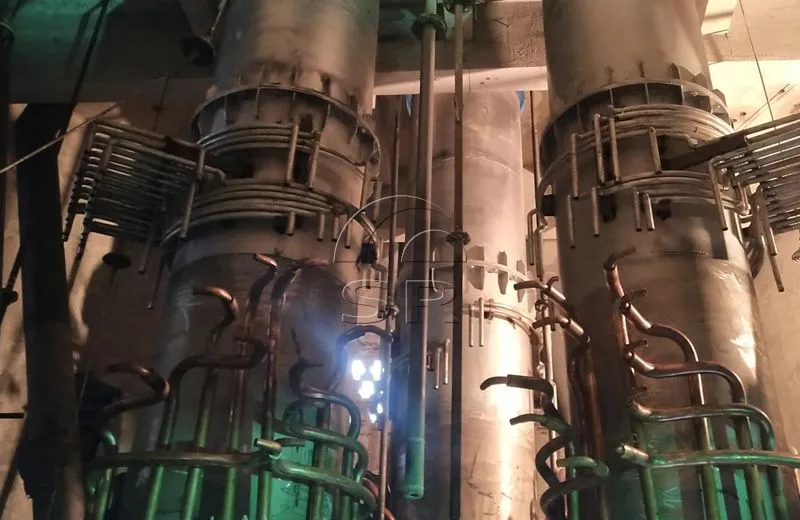

Submerged Arc Furnace Pressure Ring Introduction

Submerged Arc Furnace Pressure Ring Introduction

Submerged arc furnace pressure ring is used to monitor the change of air pressure in the furnace in real time, and adjust the air pressure automatically or manually according to the preset parameters to ensure the stability of air pressure in the furnace, prevent smelting problems or safety accidents caused by too high or too low air pressure, and ensure the normal operation of the submerged arc furnace.



The working principle of submerged arc furnace (SAF) pressure ring is based on the air pressure sensing and control system. It consists of a gas pressure sensor, a controller and an air valve. The sensor senses the air pressure change in the furnace, converts the sensed air pressure value into an electrical signal and transmits it to the controller. The controller compares the received signal with the preset parameters, and then regulates the opening of the air valve to achieve stable control of the air pressure in the furnace.

Application

In the practical application of submerged arc furnace, the pressure ring plays an important role. For example, in the process of smelting ferrosilicon, ferromanganese and other iron alloys, submerged arc furnace needs to maintain a certain air pressure to ensure smooth smelting process.

At this time, the pressure ring can monitor the change of air pressure in the furnace in real time and keep the air pressure stable through automatic adjustment, so as to ensure the smooth progress of smelting process and the stability of product quality.

Composition

Submerged arc furnace pressure ring is mainly composed of air pressure sensor, controller and air valve. Among them, the air pressure sensor is responsible for sensing the air pressure change, the controller is responsible for receiving the signal and sending the regulation command, and the air valve is responsible for executing the command of the controller to control the air pressure in the furnace by adjusting the opening.

Characteristic

Real-time monitoring: the submerged arc furnace pressure ring can monitor the change of air pressure in the furnace in real time and feed back the change to the control system in time.

Automatic adjustment: when the air pressure in the furnace exceeds the preset range, the control system of the pressure loop can be started automatically, and the normal operation of the air pressure in the furnace can be maintained by adjusting the heating power or other relevant parameters.

Improve safety: the regulation of submerged arc furnace pressure ring can prevent explosion and other safety accidents caused by air pressure problems and improve the safety of the furnace.

Ensure stable process: by adjusting the air pressure in the furnace, the submerged arc furnace pressure ring can ensure stable operation of the furnace process and prevent smelting problems caused by air pressure fluctuation.

It ensures the safe operation of submerged arc furnace and the stability of smelting process by real-time monitoring and regulating the change of air pressure in the furnace.
