Submerged Electric Arc Furnace

Introduction to Submerged Electric Arc Furnace


Submerged electric arc furnace is mainly used for reducing and smelting raw materials such as ore, carbonaceous reducing agent and solvent.

Submerged arc furnace mainly produces ferroalloys such as ferrosilicon, ferromanganese, ferrochrome, ferrotungsten, silicon-manganese alloy, etc.

The main mechanical device design of Sanui submerged electric arc furnace combines China's national conditions and draws on international advanced technologies such as Demark and Pyremate.

Share:

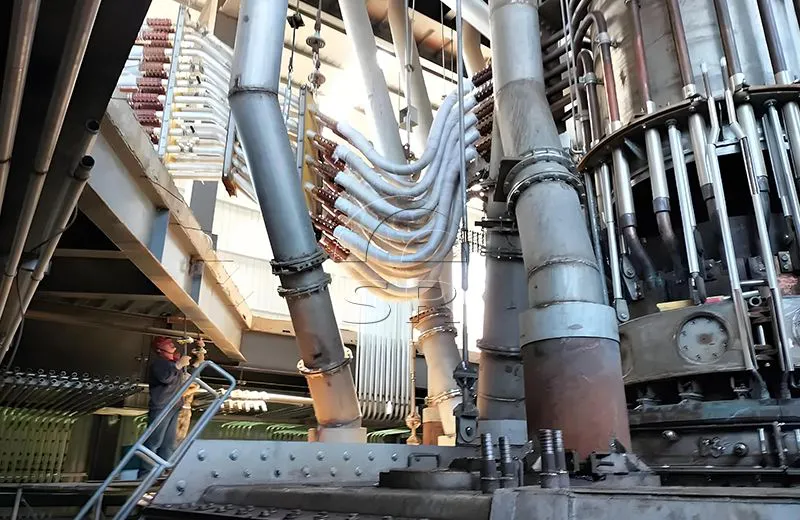

Introduction to Submerged Electric Arc Furnace

Introduction to Submerged Electric Arc Furnace

The main mechanical device design of Sanui submerged electric arc furnace combines China's national conditions and draws on international advanced technologies such as Demark and Pyremate. It adopts hydraulic pressure ring, suspension cylinder hydraulic lifting mechanism, and independently developed submerged arc furnace electrode adjustment device, which is an automatic control voltage discharge device integrating machinery, electrical appliances, pneumatics, and hydraulics, water-cooled cables, space lattice copper tube short net copper reverse parallel connection, forged copper tiles, etc.


Submerged electric arc furnace is mainly used for reducing and smelting raw materials such as ore, carbonaceous reducing agent and solvent.


It mainly produces ferroalloys such as ferrosilicon, ferromanganese, ferrochrome, ferrotungsten, silicon-manganese alloy, etc. Its working characteristics are that it uses carbonaceous or magnesia refractory materials as furnace lining and uses self-training electrodes.


The electrode is inserted into the charge for submerged arc operation, and the energy of the arc and the current passing through the charge are used to generate energy due to the resistance of the charge to melt the metal, and the charge is added successively, and the iron slag is discharged intermittently. It is an industrial electric furnace with continuous operation.

Main Uses of Submerged Electric Arc Furnace

SAF mainly used to produce ferroalloys (such as ferrotungsten, high carbon ferromanganese, high carbon ferrosilicon, high carbon ferrochromium, ferronickel alloys).

 SAF also used to produce industrial silicon, calcium carbide, corundum, yellow phosphorus, etc.

Submerged arc furnaces are used in steel, non-metal and other industries.

Characteristics of Submerged Electric Arc Furnace Equipment

1. High Temperature and Low Energy Consumption

The working temperature of the submerged arc electric furnace is as high as over 1500°C, so it can melt many high melting point metals and compounds. At the same time, because it can use waste gas such as blast furnace gas as fuel, the energy consumption during the smelting process is relatively low.

2. High Production Efficiency

The submerged arc furnace has a fast smelting speed, can handle a large amount of ore, and has the characteristics of continuous operation and efficient operation.

3. Reusable

The metal materials obtained by smelting in submersible arc furnaces can be reused, saving raw materials and reducing waste, which is in line with the concept of sustainable development.

4. Working Characteristics

Its working characteristics are that it uses carbon or magnesium refractory materials as furnace lining and uses self-training electrodes.The electrode is inserted into the charge for submerged arc operation, and the energy of the arc and the current passing through the charge are used to generate energy due to the resistance of the charge to melt the metal. The charge is added successively, and the iron slag is discharged intermittently. It is an industrial electric furnace that operates continuously.

5. The Load of the Transformer of the Submerged Electric Arc furnace is Continuous and Stable

The load of the transformer of the submerged arc electric furnace is continuous and stable, with low impedance voltage, more voltage regulation levels, smaller level difference and strong overload capacity.It can be divided into two types: load and non-excitation voltage regulation. Generally, the first few levels have constant capacity output, and the last few levels have constant current output.

Submerged Electric Arc Furnace Equipment Composition

The Submerged Arc Electric Furnace provided by submerged arc furnace suppliers mainly consists of furnace shell, furnace hood, furnace cover, furnace lining, short mesh system, water cooling system, smoke exhaust system, dust removal system, electrode shell, electrode holder, electrode pressure and lifting system, loading and unloading system, and controller , burn-through device, hydraulic system, cooling water system, tap casting system, submerged arc furnace transformer and high-voltage control and protection system, low-voltage control and protection system, computer operating system, water-cooled cable, etc.

Other accessories, dust removal, cooling tower systems, etc. are available as needed.

Sanrui Submerged Electric Arc Furnace Technical Advantages

The operation is simple and intuitive, and the human-machine dialogue effect is very friendly;

The electrode lifting speed adjustment range is large and the electrode can be raised quickly;

The non-sensitive area is continuously adjustable, and the size of the non-sensitive area can be adjusted at any time according to the furnace conditions; the system response time is short and the adjustment accuracy is high;

Fast arc stabilization, accurate current regulation, and small impact on the power grid;

Due to the use of PLC photoelectric isolation control, it has strong anti-electromagnetic interference capabilities. In addition, the system adopts a modular design, which makes the operation stable and reliable, and the failure rate is extremely low;

Using PLC programming, more complex calculations can be performed, such as three-phase power, current, voltage balance control, etc., and program modification is extremely convenient;

The operation is simple and clear, and the maintenance is convenient;

Low investment, quick results and low energy consumption.

It has strong craftsmanship and advanced software programming.

Main Technical Parameters of Submerged Electric Arc Furnace

CapacityFurnace TypeMaterialsSecondary VoltageWorking VoltageDia of ElectrodeElectrode distribution circleDia of Furnace ShellHeight of Furnace Shell
6300KVALower Gas Hood

Semi-closed
Silicon iron94~126V110Vφ780φ2000φ61003600
Manganese iron94~126v106Vφ780φ2000φ62003600
Manganese-silicon alloy94~126V106Vφ780φ2000φ62003600
High-carbon chromium iron94~126V106Vφ780φ2000φ62003600
Silicon100~132V130Vφ600φ1900φ59003400
Ferronickel128~272V200Vφ720φ2100φ72004200
12500KVALower Gas Hood
Semi-closed
Silicon iron120~168V141Vφ1020φ2600φ76004300
Manganese iron120~168V138Vφ1020φ2600±50φ76004300
Manganese-silicon alloy120~168V138Vφ1020φ2500±50φ76004300
High-carbon chromium iron120~168V146Vφ1020φ2600φ76004300
Silicon120~184V152Vφ900φ2500φ73004200
Ferronickel222~322V250Vφ960φ2800φ85004800
16500KVALower Gas Hood

Semi-closed
Silicon iron136~190V154Vφ1200φ3000φ82004400
Manganese iron136~190V144Vφ1200φ3200φ86004800
Manganese-silicon alloy136~190V147Vφ1200φ3100±50φ86004800
High-carbon chromium iron136~190V158Vφ1200φ3000φ86004800
Ferronickel248~392V320Vφ1050φ3500φ98005200
25000KVALower Gas Hood

Semi-closed
Silicon iron90~180~240V200Vφ1250φ3200±100φ86004600
Manganese iron130~169~208V181Vφ1300φ3800±100φ86005300
Manganese-silicon alloy130~169~211V184Vφ1300φ3600±100φ86005300
High-carbon chromium iron150~220~260V210Vφ1300φ3600±100φ88005300
Ferronickel300~460V380Vφ1220φ3900φ115005600

Scope of Submerged Electric Arc Furnace Supply

As one of famous submerged arc furnace suppliers in China, Sanrui provide submerged arc furnace for sale with competitive price.

Raw material supply system: hopper, feeding pipe

Furnace body: furnace body, furnace shell, furnace bottom support beam, furnace top ring, furnace lining

Semi-enclosed furnace cover: semi-enclosed furnace top, furnace cover side panels and furnace door, electrode sealing device, chimney, outlet smoke hood and exhaust pipe

Short network: compensator, conductive copper bar, short network hanging system, collector ring and bracket, cable, conductive plate

Electrode device: electrode holding tube, electrode shell, electrode clamping device, electrode pressing device, electrode lifting device, electrode guide and distribution circle adjustment, steel platform

Short network: stainless steel bracket, compensator, water-cooled cable, stainless steel bracket, water-cooled conductive copper pipe

Cooling water system: water inlet distributor, return water tank, pressure gauge, thermometer, valve

Hydraulic system: motor, pump, filter, oil tank, control valve, accumulator

Submerged arc furnace transformer

Low-voltage electrical system

Low-voltage electrical system: low-voltage electrical control, low-voltage power supply cabinet, low-voltage protection cabinet, electrode lifting control console

Automation control system: Siemens PLC

Submerged Electric Arc Furnace Smelting Process

01

Submerged Electric arc furnace (SAF) is a closed environmentally friendly and energy-saving solution, suitable for ferroalloys (such as ferrotungsten, high carbon ferromanganese, high carbon ferrosilicon, high carbon ferrochrome, nickel ferroalloy) and industrial silicon, calcium carbide, corundum , yellow phosphorus, etc. Submerged arc furnace preheating can eliminate water and volatile components, thereby stabilizing smelting process conditions and reducing the unit energy consumption of the furnace.

02

Water injection into the furnace shell and forced ventilation at the bottom of the furnace ensure effective cooling. The thermally conductive carbon lining combined with effective cooling forms a spontaneous freezing layer on the hot side of the lining, minimizing lining erosion and improving thermal efficiency.

03

The characteristics of the submerged electric arc furnace are that it uses carbon or magnesium refractory materials as the furnace lining and uses self-trained electrodes.

04

The electrode is inserted into the charge to perform a submerged arc operation. The energy of the arc and the current passing through the charge are used to generate energy due to the resistance of the charge to smelt the metal. It is an industrial electric furnace that continuously feeds materials, taps iron slag intermittently, and operates continuously.

05

The submerged arc furnace transformer has a continuous and stable load, low impedance voltage, many voltage regulation stages, small step differences and strong overload capability.

06

Submerged arc furnaces can achieve extremely low specific energy consumption, low reducing agent and electrode consumption, and very high production throughputs. The enclosed design also minimizes dust emissions into the factory environment and surrounding atmosphere.

Sanrui Submerged Electric Arc Furnace Technology Optimization

Using the best available technology (BAT), the submerged electric arc furnace designed and manufactured by Sanrui adopts advanced tubular water-cooled furnace cover technology, tubular water-cooled furnace wall technology, copper-steel composite plate conductive cross arm technology, EBT tapping technology, large Cross-section water-cooled cable technology, PLC control technology, high-impedance technology, auxiliary energy technology such as carbon-oxygen lance and oxygen burner, oxygen-enriched operation technology and hot-metal hot charging technology, etc.

We offer a range of furnace cover designs to suit different submersible furnace applications. Closed furnace lid solutions make smelting and maintenance safer. Furnace lids are usually made of water-cooled steel plates, but combined solutions combining water-cooled steel plates and refractory materials are also available. The air-tight seal ensures low emissions and efficient collection and utilization of CO gas.

Minimize energy, coke and electrode paste consumption

Achieve high productivity and metal recovery, especially when using pellets

Purified CO gas can be effectively utilized in different factory applications

Preheat to 600ºC, each 100ºC temperature rise saves 70 kWh per ton of metal smelted

Allows you to reduce operating costs and reduce CO₂ and dust emissions

Services Provided by Sanrui

1. As one of famous submerged arc furnace suppliers in China, Sanrui can provide basic layout and layout drawings

2. Sanrui will send engineers to your factory to install and debug the machine, providing trustworthy after-sales service.

3. Sanrui provides operation and maintenance personnel training, and the smelting equipment is easy to operate and maintain.

4. Submerged arc furnace for sale with competitive price and excellent quality

5. Submerged arc furnace for sale in low investment, high production efficiency and high rate of return

6. Smelting equipment has stable performance and safe production

5. Subemerged arc electric furnace can be customized according to different needs

6. SAF production capacity can be adjusted according to customer requirements

7. Environmentally friendly, low energy consumption

As one of famous submerged arc furnace suppliers in China, Sanrui provides engineering, consulting, R&D, design, equipment supply, system integration and software preparation, construction, installation, commissioning, project management, technical services and training, production guidance, operation and maintenance, spare parts supply and other comprehensive engineering and technical services.

Send us your project details and our team of engineers will design a submerged electric arc furnace  price offer and commercial solution based on your needs.
