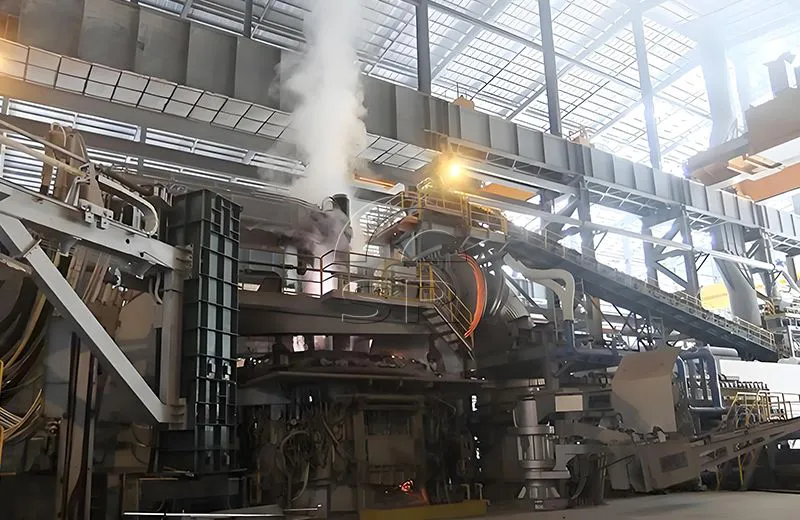

30 Ton Electric arc furnace Introduction
30 Ton electric arc furnace is used for steelmaking short process smelting, using 100% scrap steel or scrap steel + molten iron (pig iron), or scrap steel + sponge iron (DRI) as raw materials for steelmaking.
The 30 ton industrial electric arc furnace has simple furnace temperature control and small equipment footprint. It is suitable for smelting high-quality alloy steel, etc.
The annual output of a single steel mill electric arc furnace equipped with auxiliary energy is more than 210,000 tons.

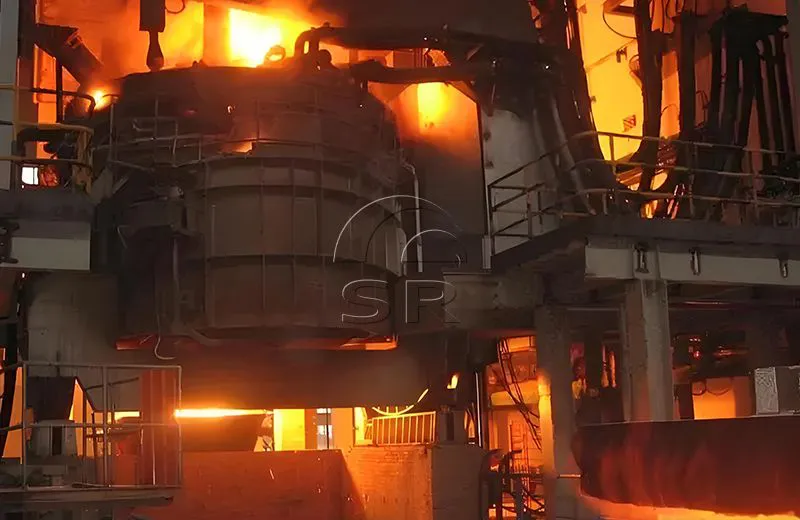

30 Ton Electric Arc Furnace Introduction
30 Ton electric arc furnace is used for steelmaking short process smelting, using 100% scrap steel or scrap steel + molten iron (pig iron), or scrap steel + sponge iron (DRI) as raw materials for steelmaking.
The scrap metal is smelted at high temperatures generated by the electric arc of the electric arc furnace electrode. An arc is formed between the charged material and the electrode. When the gas discharge forms an arc, the energy is very concentrated, and the temperature in the arc area is above 3000 ℃. The heat generated by the arc melts the scrap, and the electric arc furnace can effectively remove impurities such as sulfur and phosphorus.
The industrial electric arc furnace consists of three parts (lower furnace body, upper furnace body and furnace roof), which can be tilted hydraulically. The lower container, upper container and the inside of the top are lined with refractory materials. The outside and top of the container are usually composed of water-cooled steel structures.
The 30 ton EAF electric arc furnace has simple furnace temperature control and small equipment footprint. It is suitable for smelting high-quality alloy steel, etc.
The annual output of a single steel mill electric arc furnace equipped with auxiliary energy is more than 210,000 tons.
Main Application of 30 Ton Electric Arc Furnace
Used to melt carbon steel
high-quality alloy steel
supply molten steel to the refining equipment
30 Ton Electric Arc Furnace Equipment Features
The 30 ton HX series electric arc furnace is a top-loading type with the furnace cover unscrewed. The furnace cover is unscrewed, the material is loaded on the top, and the steel is tapped by eccentric bottom EBT. The furnace cover is upgraded and rotated, and the electrode lifting is hydraulically driven, with large-section water-cooled cables, power conduction arms (steel-copper composite plate structure), and coil water-cooled furnace cover structure type.
The EAF electric arc furance adopting comprehensive energy utilization technology, equipped with furnace door carbon oxygen gun and furnace wall cluster oxygen gun, the secondary combustion of CO escaping from the molten pool effectively makes full use of the chemical energy in the flue gas to reduce power consumption and produce foam slag.
Adopting high impedance technology, the secondary voltage is increased, long arc melting is achieved, and the arc is relatively stable.
Reduced the impact on the power grid, the short-circuit system current is smaller, reduced energy consumption and electrode consumption, and increased the effective input of electricity.
Electric Arc Furnace Equipment Composition
The 30-ton electric arc furnace equipment includes furnace body, tilting platform, molten steel transport vehicle, water-cooled furnace cover and smoke collection device, furnace cover rotating lifting mechanism, copper-steel composite conductive cross arm and electrode lifting device, secondary short network, hydraulic system, water cooling system, argon blowing system, ladle furnace transformer, high voltage system, low voltage electrical control and PLC automatic control system.
Sanrui EAF Technical Advantages
Low Power Consumption and Cost Reduction
The high current system of the EAF electric arc furnace uses pure copper as the conductive medium, and the entire loop resistance is small. Taking full account of the skin effect when current passes through conductors, the cross arm adopts a box-shaped copper-steel composite plate structure, which can effectively reduce resistance and heat generation. Reasonable high-current system layout makes various current impedances smaller.
EAF Equipment Operation is More Stable and Smelting is Safer
The entire hydraulic drive is equipped with an accumulator, which stabilizes the pressure of the hydraulic system and makes the equipment run more stably. At the same time, in emergencies such as power outages, the equipment can continue to perform unfinished operations, which improves the safety of smelting.
Electrode Consumption Reduced
The anti-electrode breakage system can effectively reduce the chance of electrode breakage during the smelting process. In particular, avoiding electrode breakage during the scrap melting process is equivalent to saving an entire furnace of molten steel and reducing economic losses.
The Equipment is Simple to Operate and Easy to Use
Electrical automation control adopts human-machine interface, which simulates the form of real furnace body and is easy to operate. Batching, loading, smelting and tapping can all be operated on the computer.
High Arc Starting Efficiency
Using a new type of electrode adjustment system, the steel mill electric arc furnace electrode lifting control breaks the previous single signal return control technology and adopts multi-signal collection and PLC signal comparison technology to increase the electrode arc starting speed and avoid long-term effects on the electric arc furnace during the arc starting process. Upper level power grid system.
Diversification of Dust Removal Systems
The dust removal systems we are equipped with are diversified and can be equipped with different forms of dust removal equipment according to the environmental protection requirements of different countries.
30 Ton Electric Arc Furnace Parameters
EAF-30 Ton Main Equipment Parameters
| Rated capacity | 30t |
| Maximum steel output | 40t (retained steel 5t) |
| Inner diameter of furnace shell | φ4300mm |
| Steel/slag tapping angle (maximum) | 20°/12° |
| Graphite electrode diameter | φ400mm |
| Graphite electrode distribution circle | φ1100mm |
| Electrode maximum stroke | 3100mm |
| Electrode lifting/lowering speed | 6/4.5m/min |
| Furnace cover lifting height | 400mm |
| Furnace cover rotation angle | ~66° |
| Hydraulic system: working pressure | 12Mpa |
| Working medium | Water-ethylene glycol |
| Compressed air system: working pressure | ＞0.4Mpa |
| Consumption | 5m3/h |
| Transformer: rated capacity | 16 MVA |
| Primary voltage | 35KV |
| Secondary voltage | 430~342.5~220V 13 levels |
| Secondary current | 26917A |
| Voltage regulation method | On-load electric voltage regulation |
| Secondary terminal outlet method | Inner sealed △ side outlet |
| Cooling method | Oil-water cooler |
| Short network: Impedance value | ≤0.65+j2.7mΩ |
| Three-phase unbalance coefficient | ≤5% |
| Cooling water system: Inlet pressure | 0.5Ｍpa (closed loop) 0.35Mpa (open loop) |
| Inlet temperature | ≤35℃ |
| Outlet temperature | ≤55℃ |
| Consumption | ~480m3/h |
30 Ton Electric Arc Furnace Transformer Technical Data:
| SN | Item | Parameter |
| 1 | Rated capacity | 16000kVA |
| 2 | Primary voltage | 35kV/350V~295V~146V |
| 3 | Voltage regulating method | 12 stage voltage motor regulating with load |
| 4 | Primary rated current | 264A |
| 5 | Secondary rated current | 26kA |
| 6 | Line connection method | Y.dll |
| 7 | Line in and out method | top in and side out |
| 8 | Cooling method | forced oil circulation water cooler |
Scope of 30 Electric Arc Furnace Supply
As one of the famous electric arc furnace manufacturers in China, Sanrui provide customized OEM manufacture service accodding to electric arc furance drawing supplied by clients as follows:
Furnace body: furnace shell, furnace door mechanism, tapping spout mechanism
Furnace roof: tubular water-cooled furnace roof, refractory center roof (this is a drawing produced by the seller, made by the buyer)
Furnace croof lifting and rotating mechanism: furnace cover lifting mechanism (cylinder, chain, gear, etc.), (Γ frame), rotating mechanism, rotating locking mechanism
Tilting mechanism: arc-shaped frame, base, tilting hydraulic cylinder
Electrode cross arm and lifting mechanism: electrode support arm, electrode clamping device, lifting mechanism
Short network: stainless steel bracket, compensator, water-cooled cable, stainless steel bracket, water-cooled conductive copper tube
Cooling water system: water inlet distributor, return water tank, pressure gauge, thermometer, valve
Hydraulic system: motor, pump, filter, tank, control valve, accumulator
High-voltage power supply system: isolation switch, voltage transformer, vacuum circuit breaker, current transformer, lightning arrester, etc.
Electric furnace transformer
Low voltage electrical system
Low-voltage power cabinet, PLC cabinet, main operating console, furnace front operating console, hydraulic operating box, control sensor, limit switch, etc.
Automation control system: Siemens PLC
Electric Arc Furnace Steelmaking Process
01
The basic process of steel mill electric arc furnace steelmaking includes slag removal, metal charging, power supply, melting, oxidation, reduction refining and tapping. Depending on the characteristics of the type of steel being smelted, there are different operating methods. The smelting process mainly consists of three phases: melting, oxidation, and reduction.
02
With the continuous development of technology, the EAF electric arc furnace steelmaking process has also undergone great changes. During the melting period, auxiliary energy is used to accelerate melting, such as injection of oil-oxygen, natural gas-oxygen or pulverized coal-oxygen. The melting time of each furnace is shortened by 15 ~20min, power consumption can be reduced by 50~60kWh/t;
03
During the oxidation period, measures such as early dephosphorization, intensive oxygen use, powder spraying to create foam slag, and rapid temperature rise can reduce the amount of oxidative decarburization from 0.3% in traditional processes to 0.1% to 0.15%, thus shortening the oxidation period by 50%. above.
04
In the reduction period, diffusion deoxidation in the traditional process is mainly replaced by precipitation deoxidation, and diffusion deoxidation is supplemented. White slag or carbide slag needs to be produced. Each furnace smelting takes 3 to 4 hours, and the power consumption is as high as 600 to 700kWh/t. Not only can the expected refining effect be achieved, but the steel quality is guaranteed and the reduction time can be shortened by more than 60%.
05
While improving the quality of molten steel, the process improvement has also increased productivity by about 20%, reduced power consumption by 10% to 15%, and reduced electrode consumption by about 8%, achieving considerable economic benefits.
Sanrui Electric Arc Furnace Technology Optimization
After optimizing EAF electric arc furnace technology, Sanrui has achieved the best balance between raw materials, scrap preheating, energy conservation and environmental protection, smelting process control, automation control, smelting cycle and production capacity. The electric arc furnace inputs electric energy into the electric arc steelmaking furnace through graphite electrodes, and uses the arc between the electrode end and the charge as the heat source for steelmaking.
The 30 ton industrial electric arc furnace uses electric energy as the heat source and can adjust the atmosphere in the furnace, which is extremely beneficial for melting steel types that contain more easily oxidized elements. Utilize high-temperature flue gas from electric furnaces to preheat raw materials through technology and equipment to achieve high efficiency, energy saving, environmental protection and high yield.
With the improvement of steel mill electric arc furnace equipment and smelting technology, and the development of the electric power industry, the cost of electric furnace steel continues to decrease. Nowadays, electric furnaces are not only used to produce alloy steel, but also to produce ordinary carbon steel and iron ore concentrate pellets.
Services Provided by Sanrui
1. Sanrui can provide 30 ton electric arc furnace foundation layout and electric arc furnace drawings
2. Sanrui will send engineers to your factory to install and debug the machine, providing trustworthy after-sales service.
3. Sanrui provides operation and maintenance personnel training, and the smelting equipment is easy to operate and maintain.
4. Competitive price and excellent quality
5. Low investment, high production efficiency and high rate of return
6. Smelting equipment has stable performance and safe production
7. Steelmaking electric arc furnace can be customized according to different needs
8. Production capacity can be adjusted according to customer requirements
9. Environmentally friendly, low energy consumption
Sanrui is rich experience in designing, manufacturing, installing, debugging and commissioning steelmaking process equipment.
Sanrui provides engineering consulting, R&D, design, equipment supply, system integration and software compilation, construction, installation, debugging, project management, technical services and training, production guidance, operation and maintenance, spare parts supply and other comprehensive engineering and technical services.
Send us your project details and our engineering team will design an electric arc furnace steelmaking production line solution according to your needs.
Related Products
Customized metallurgical machinery and equipment range: Electric Arc Furnace, Submerged Arc Furnace, LF Refining Furnace, Vacuum Furnace, Induction Furnace, Dust Remove System, Water Treatment Equipment, etc. Providing the most advanced equipment integration services, metallurgical equipment can be customized according to different needs of customers, and production capacity can be adjusted according to customer requirements.
Electric Arc Furnace Steel Making
