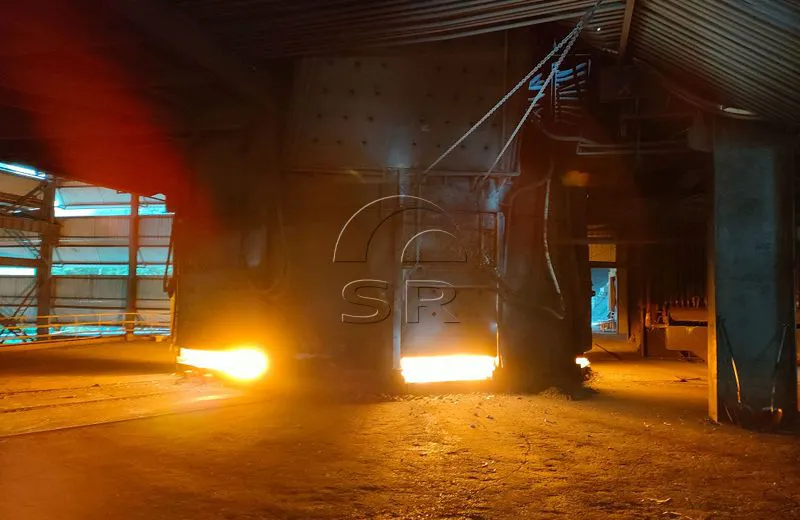

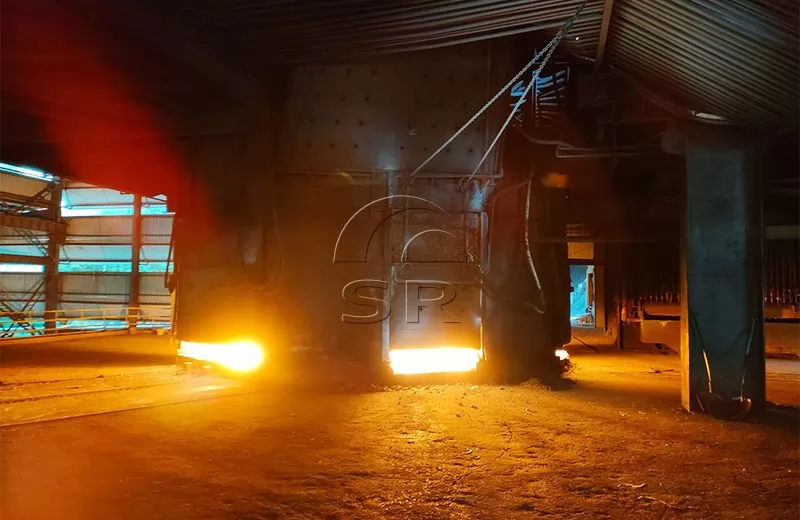

Ferrosilicon Furnace Introduction
The main mechanical device design of Sanui ferrosilicon furnace combines China's national conditions and draws on international advanced technologies such as Demark and Pyremate.
Sanrui ferrosilicon furnace is a fully enclosed, environmentally friendly and energy-saving ferrosilicon furnace solution designed for ferrosilicon smelting production.
Preheating of the silicon metal furnace can eliminate moisture and volatile components, thereby stabilizing the smelting process conditions and reducing the unit energy consumption of the furnace.
Ferrosilicon Furnace Introduction
The main mechanical device design of Sanui ferrosilicon furnace combines China's national conditions and draws on international advanced technologies such as Demark and Pyremate.
Silicon metal submerged arc furnace adopts hydraulic pressure ring, suspension cylinder hydraulic lifting mechanism, and independently developed ferrosilicon ore heating furnace electrode adjustment device, which is an automatic control voltage discharge device integrating mechanical, electrical, pneumatic and hydraulic, water-cooled cable, space lattice copper tube short net copper reverse parallel connection, forged copper tile, etc.
The main equipment of feerosilicon production electric arc furnace adopts a semi-enclosed fixed furnace type with a low smoke hood.
Silicon metal submerged arc furnace process characteristics: self-baking electrodes are selected, and the furnace lining adopts carbon bricks and high-aluminum refractory bricks.
The ferrosilicon furnace plays an important role in the ore heating and smelting process in smelting.
Main Application of Ferrosilicon Furnace
The main application of the ferrosilicon furnace is to add qualified raw materials such as silica, carbonaceous reducing agent, steel scraps, etc. into the ferrosilicon furnace according to a certain proportion of ingredients.
The high-voltage power supply is input by the submerged arc furnace transformer, short-circuit system and electrode holder system, and the electrode is inserted into the charge for submerged arc smelting.

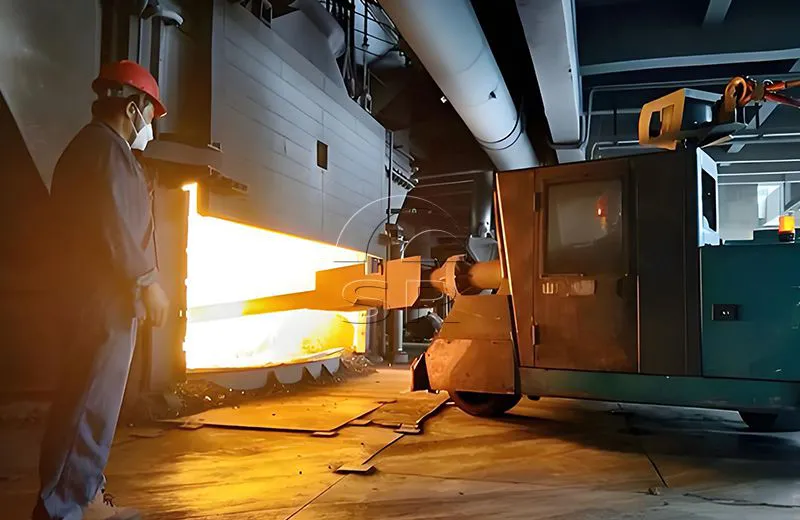

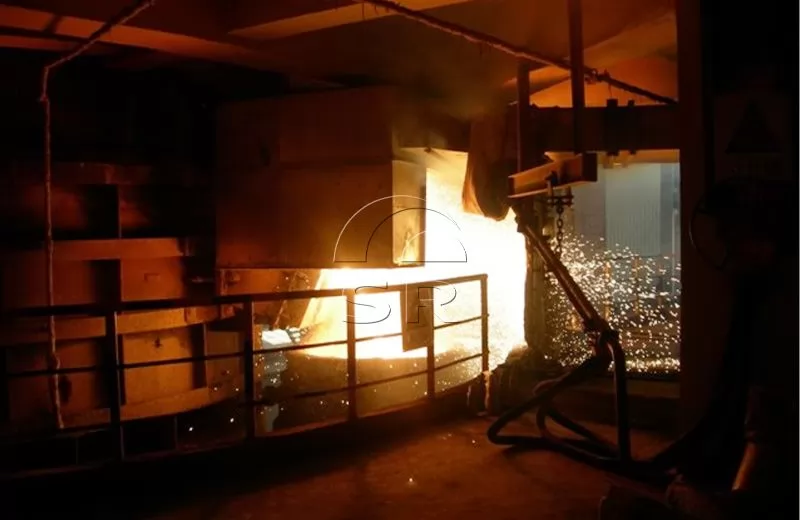

After a certain period of smelting, the iron is discharged into the ladle, crushed after casting, and quantitatively packaged and stored after finishing.
Characteristics of Ferrosilicon Furnace Equipment
1. The ferrosilicon submerged arc furnace adopts a fixed furnace body with two iron outlets.
2. Semi-enclosed low smoke hood structure.
3. Self-baking electrode, the electrode lifting adopts hydraulic manual and computer-controlled automatic lifting, the electrode is clamped by a cone ring, the conductive plate hydraulic cylinder is loosened, and two sets of friction rings and lifting cylinders are used to achieve automatic fixed-length pressing and release, and the electrode distribution circle diameter can be adjusted.

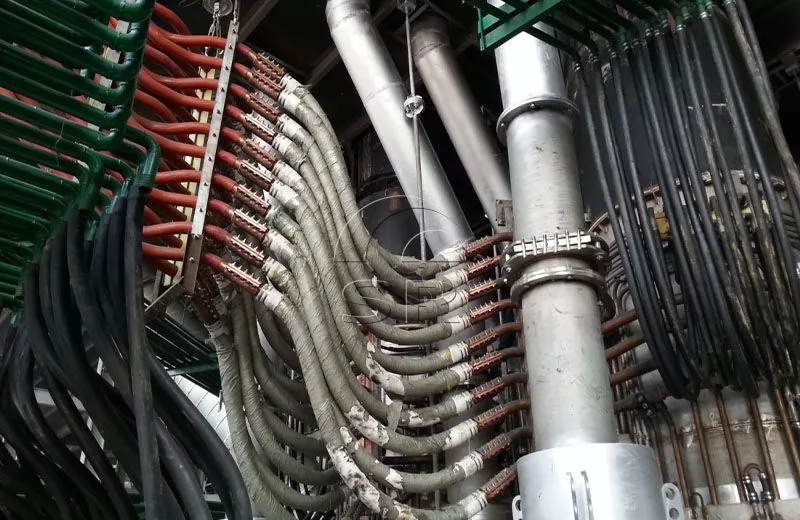

4. The short network (bus bar syastem) of silicon metal submerged arc furnace adopts a water-cooled compensator, water-cooled copper pipe, water-cooled cable and water-cooled conductive plate, and adopts a new energy-saving short net structure with an outer triangle layout.
5. The silicon metal furnace feeding system is a high-level silo chute feeding or manual feeding in front of the furnace.
6. Circulating water cooling, and the equipment is required to have a high-level backup water system to prevent damage to components caused by sudden power outages, and an over-temperature automatic alarm system is used.
7. The silicon metal furnace hydraulic system adopts a cartridge valve integrated block structure, and the hydraulic medium is water-ethylene glycol.
8. The Ferrosilicon furnace transformer adopts low-loss energy-saving transformer, which can be used for a long time with 20% overload, no-load electric voltage regulation, strong oil circulation water cooling and equipped with complete oil temperature and gas protection devices.
9. The electrode pressure and release control adopts PLC control, and the electrode lifting and lowering adopts manual control to achieve three-phase power balance.
Ferrosilicon Furnace Equipment Composition

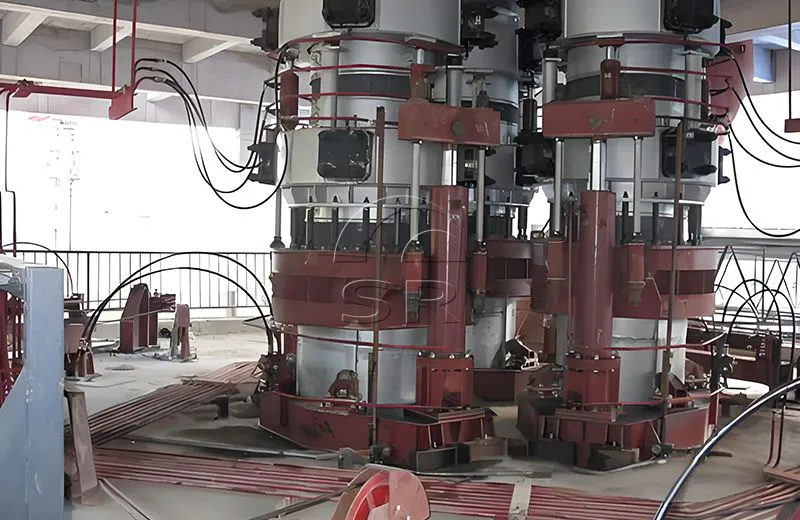

The ferrosilicon furnace is mainly composed of furnace body, furnace shell, semi-enclosed furnace cover, furnace lining, short-circuit system, water cooling system, smoke exhaust system, dust removal system, electrode shell, electrode holder, electrode pressing and lifting system, loading and unloading system, gripper, burn-through device, hydraulic system, cooling water system, short-circuit system, submerged arc furnace transformer and high-voltage control and protection system, low-voltage control and protection system, discharging system, computer operating system, water-cooling cable, etc. Other accessories, dust removal, cooling tower system, etc. can be provided as needed.
Sanrui Ferrosilicon Furnace Technical Advantages
Closed furnace type, micro-positive pressure operation, automatic furnace pressure adjustment.
Optimize short-circuit technology to ensure three-phase balance and minimum impedance value.
Fully automatic feeding, multi-point feeding in the furnace, continuous feeding, continuous smelting, automatic matching and automatic adjustment of feeding speed and electrode input power.
Automatic electrode lifting and lowering adjustment technology to achieve automatic smelting, power adjustment, high electrical efficiency and low power consumption.
Automatic detection and alarm system for furnace wall and furnace bottom temperature to ensure safe production.
Simple and intuitive operation, very friendly human-computer dialogue effect.
Simple and clear operation, easy maintenance.
Low investment, quick results, low energy consumption.
Strong processability and advanced software programming.
Main Technical Parameters of Ferrosilion Furnace
| Capacity | Furnace Type | Finished Product | Secondary Voltage | Working Voltage | Electrode diameter | Electrode Distribution Circle | Furnace Dhell Diameter | Furnace Shell Height |
| 3200KVA | Low smoke hoodSemi-enclosed | Ferrosilicon | 74～109V | 110V | φ600 | Φ1450mm | 4800mm | 3400mm |
| 4500KVA | Low smoke hoodSemi-enclosed | Ferrosilicon | 74～109V | 110V | φ650 | Φ2100 | Φ4900 | 3450mm |
| 6300KVA | Low smoke hoodSemi-enclosed | Ferrosilicon | 94~126V | 110V | φ780 | φ2000 | φ6100 | 3600 |
| 12500KVA | Low smoke hoodSemi-enclosed | Ferrosilicon | 120~168V | 141V | φ1020 | φ2600 | φ7600 | 4300 |
| 16500KVA | Low smoke hoodSemi-enclosed | Ferrosilicon | 136~190V | 154V | φ1200 | φ3000 | φ8200 | 4400 |
| 25000KVA | Low smoke hoodSemi-enclosed | Ferrosilicon | 90~180~240V | 200V | φ1250 | φ3200±100 | φ8600 | 4600 |
Scope of Ferrosilicon Furnace Supply
As one of the famous Ferrosilicon Furnace Manufacturers in China, Sanrui provide customized ferrosilicon furnace OEM manufacture service as follows:
Raw material supply system: hopper, feeding pipe
Furnace body: furnace body, furnace shell, furnace bottom support beam, furnace top ring, furnace lining
Semi-enclosed furnace cover: semi-enclosed furnace cover, furnace cover side panels and furnace door, electrode sealing device, chimney, outlet smoke hood and exhaust pipe

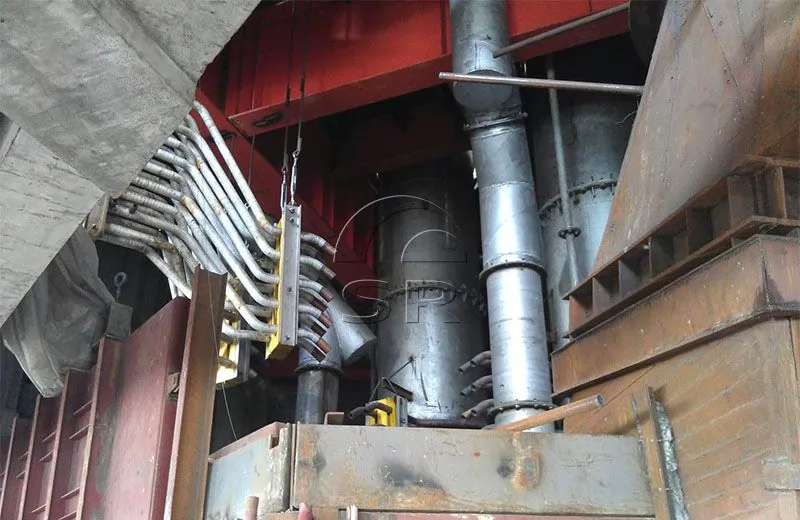

Short network: compensator, conductive copper bar, short network hanging system, collector ring and bracket, cable, conductive plate
Electrode device: electrode holding column, electrode shell, electrode clamping device, electrode pressing device, electrode lifting device, electrode guide and distribution circle adjustment, steel platform
Burning device: burning device short network, burning device guide rails and guide rods, burner body, graphite electrode, insulating material
Cooling water system: water inlet distributor, return water collection tank, cooling water pipe, return water pipe, pressure gauge, thermometer, valve
Hydraulic system: electrode clamping cylinder, friction ring clamping and releasing cylinder, electrode pressing and releasing cylinder, hydraulic pump station, motor, control valve, accumulator, external oil pipe
Ferrosilicon furnace transformer
Low-voltage electrical system: low-voltage electrical control, low-voltage power supply cabinet, low-voltage protection cabinet, electrode lifting control console

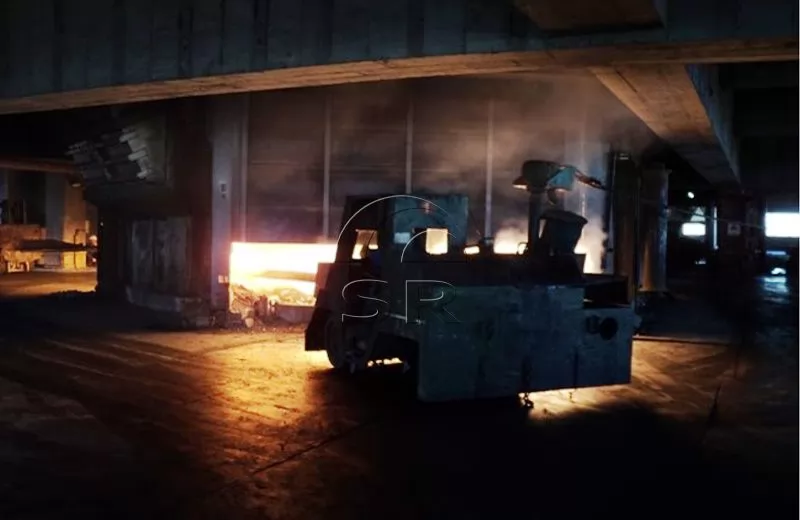

Discharging system: discharging pot, discharging car
Loading winch
Ferrosilicon Furnace Smelting Process
01
Ferro silicon metal furnace is a closed, environmentally friendly and energy-saving solution for ferrosilicon smelting production. Preheating of ferrosilicon furnace can eliminate water and volatile components, thereby stabilizing smelting process conditions and reducing the unit energy consumption of the furnace.
02
Water spraying on the shell of ferrosilicon furnace and forced ventilation at the bottom of the furnace ensure effective cooling. The heat-conducting carbon lining combined with effective cooling forms a spontaneous freezing layer on the hot surface of the lining, which minimizes lining erosion and improves thermal efficiency.
03
The characteristics of ferro silicon metal submerged arc furnace are the use of carbon or magnesium refractory materials as linings and self-training electrodes.
04
The electrode is inserted into the charge for submerged arc operation, using the energy of the arc and the current passing through the charge, and the energy generated by the resistance of the charge to melt the metal, adding materials one after another, and discharging iron slag intermittently, and operating continuously.
05
The load of the ferrosilicon furnace transformer is continuous and stable, with low impedance voltage, more voltage regulation levels, small step difference and strong overload capacity.
06
Ferrosilicon furnace can achieve extremely low unit energy consumption, low reducing agent and electrode consumption and very high production volume. The enclosed design also minimizes dust emissions into the factory environment and surrounding atmosphere.
Sanrui Ferrosilicon Furnace Technology Optimization
Using the best available technology (BAT), the ferrosilicon metal submerged arc furnace designed and manufactured by Sanrui adopts advanced tubular water-cooled furnace cover technology, tubular water-cooled furnace wall technology, copper-steel composite plate conductive cross arm technology, EBT steel-tapping technology, large-section water-cooled cable technology, PLC control technology, high impedance technology, auxiliary energy technologies such as carbon-oxygen gun oxygen burner, oxygen-enriched operation technology and hot iron charging technology, etc.
We provide a series of ferrosilicon furnace cover designs to suit different ferrosilicon furnace applications. The closed furnace cover solution makes smelting and maintenance safer. The furnace cover is usually made of water-cooled steel plate, but a combined solution combining water-cooled steel plate and refractory materials can also be used. The airtight seal ensures low emissions and efficient collection and utilization of CO gas.
Minimizes consumption of energy, coke and electrode paste
Achieves high productivity and metal recovery, especially when using pellets
Purified CO gas can be used effectively in different plant applications
Preheating to 600ºC saves 70 kWh per ton of metal smelted for every 100ºC increase in temperature
Allows you to reduce operating costs and reduce CO₂ and dust emissions
Services Provided by Sanrui
1. As an Ferrosilicon Furnace Manufacturer in China, Sanrui can provide basic layout and layout drawings
2. Sanrui will send engineers to your factory to install and debug the machine, and provide reliable after-sales service.
3. Sanrui provides training for operators and maintenance personnel, and the smelting equipment is easy to operate and maintain
4. Competitive price and excellent quality
5. Low investment, high production efficiency, high rate of return
6. Stable performance of smelting equipment, safe production
7. Products can be customized according to different needs
8. Production capacity can be adjusted according to customer requirements
9. Environmentally friendly, low energy consumption
As an Ferrosilicon Furnace Manufacturer in China，Sanrui provides engineering consulting, R&D, design, equipment supply, system integration and software development, construction, installation, commissioning, project management, technical services and training, production guidance, operation and maintenance, spare parts supply and other comprehensive engineering and technical services.
Send us your detailed project requirements, and our engineering team will design a ferrosilicon furnace production line solution based on your needs.
