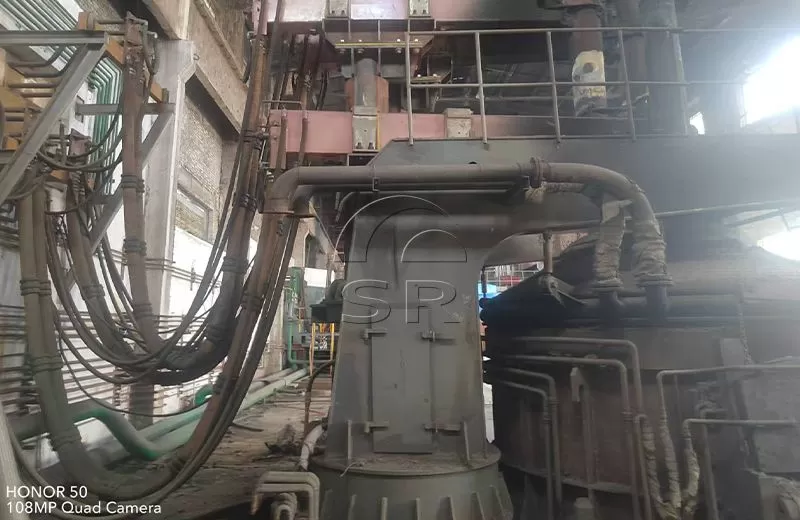

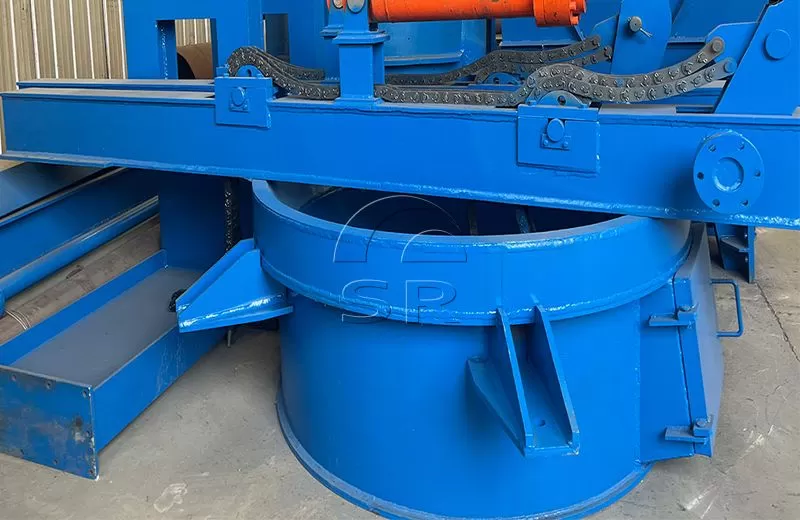

1 Ton Electric Arc Furnace Introduction
1 ton electric arc furnaces is used for melting steel titanium scrap metal.
The EAF is a device that uses the electric arc generated between electrodes to melt metal.
The principle of the mini electric arc furnace is based on the generation of direct current, which converts electrical energy into heat energy through electrodes to melt the metal.
1 Ton Electric Arc Furnace Introduction
1 ton electric arc furnaces is used for melting steel titanium scrap metal.
The EAF is a device that uses the electric arc generated between electrodes to melt metal.
The high temperature of the arc melts the metal raw materials, and the emission of pollutants can be effectively controlled through the control system and the smoke purification system.
The principle of the mini electric arc furnace is based on the generation of direct current, which converts electrical energy into heat energy through electrodes to melt the metal.
Main Uses of Electric Arc Furnace Steelmaking
Electric arc furnaces is used to smelt ordinary steel
high-quality carbon steel and various alloy steels
stainless steel
steel titanium scrap metal

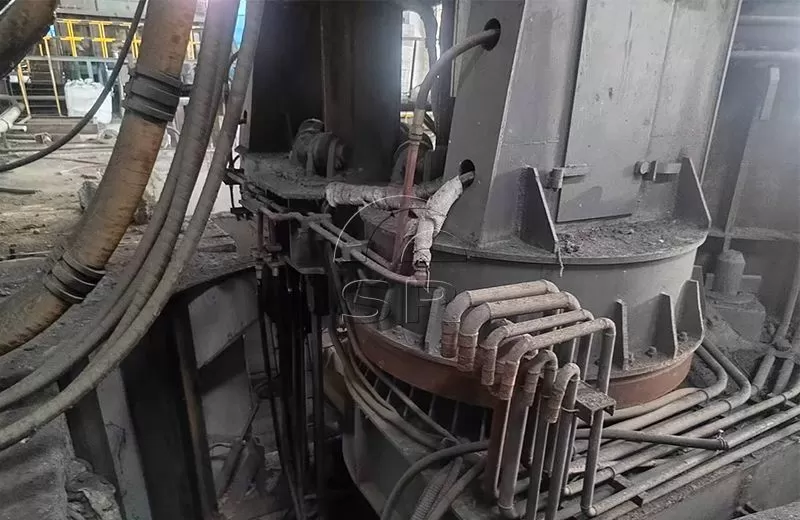

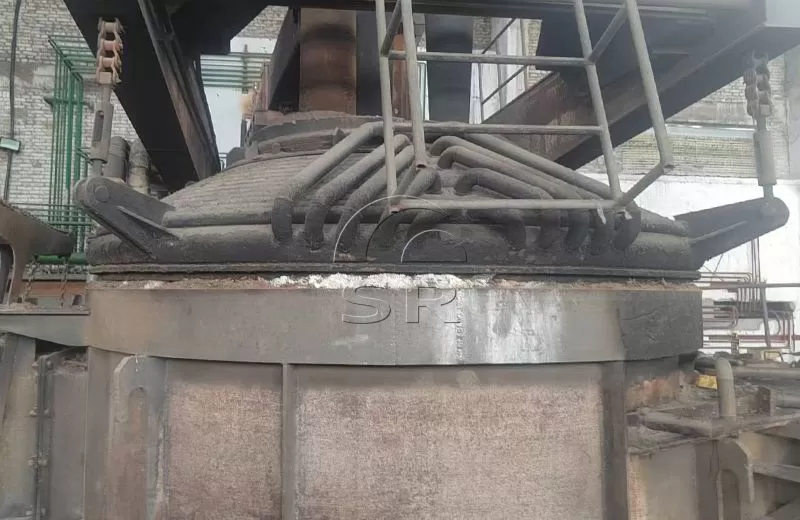

Small Electric Arc Furnace Equipment Features
1.1 ton HX series electric arc furnace is a furnace cover screw open top charging form. The steelmaking electric arc furnace is a device that uses the electric arc generated between electrodes to melt metal. The high temperature of the arc melts the metal raw materials, and the emission of pollutants can be effectively controlled through the control system and the smoke purification system.
2.The principle of the electric furnace is based on the generation of direct current, which converts electrical energy into heat energy through electrodes to melt the metal.
3.According to the power matching, iis divided into ordinary power, high power, and ultra-high power;
4.According to the operation mode, its divided into two types: right operation and right operation;
5.The steel tapping mode is divided into steel tapping from the steel tapping slot and eccentric bottom (EBT) tapping.
6.The melting furnace from small electric arc furnace manufacturer, its main feature is the use of graphite electrodes, and the furnace bottom is connected to the positive pole of the power supply. The furnace bottom is both a conductor and a melting crucible.
7.The main heat conduction mechanism of the DC electric furnace is direct and stable unidirectional convection, which is superior to the AC arc in the metallurgical process.

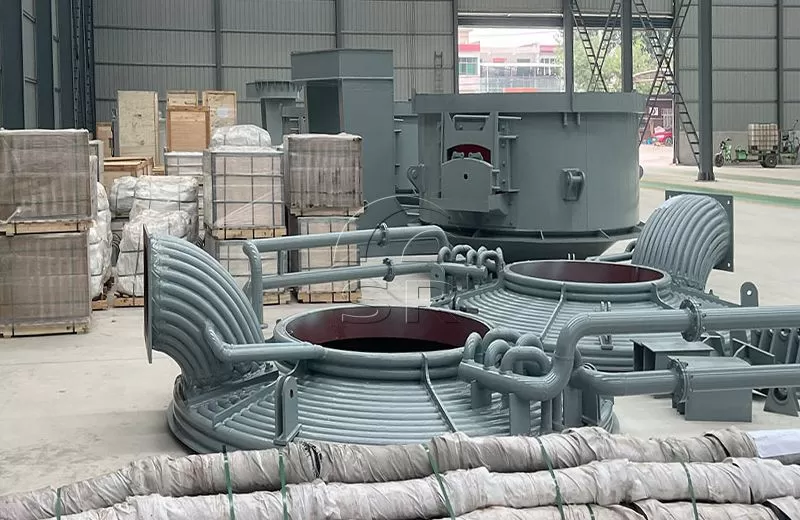

Steelmaking Electric Arc Furnace Equipment Composition
1 ton electric arc furnace complete set of equipment includes
Furnace body
Fume hood
Electrode system
Conductive network
Water cooling system
Hydraulic system
Feeding and charging system
Electric control system
Other auxiliary equipment (such as tilting platform, molten steel transport vehicle, furnace cover rotation and lifting mechanism, copper-steel composite conductive cross arm and electrode lifting device, etc.)
Mini Electric Arc Furnace Manufacturer Sanrui EAF Technical Advantages
Low power consumption, reduced cost
The high current system of the electric arc furnaces uses pure copper as the conductive medium, and the entire circuit resistance is small. Taking into full consideration the skin effect when current passes through the conductor, the cross arm adopts a box-type copper-steel composite plate structure, which can effectively reduce the resistance and heat side generation. Reasonable high current system layout makes the current impedance smaller.
Efficient energy utilization
Compared with traditional fuel furnaces, arc furnaces have higher energy utilization. It uses electric energy to directly generate high temperature without heating metal materials through combustion. This direct power conversion can improve energy utilization efficiency and reduce energy waste.
Strong flexibility
Mini electric arc furnace are suitable for the smelting and processing of various metal materials. They can process scrap steel, scrap iron, scrap aluminum and other waste materials, and produce high-quality metal products. Its flexibility makes arc furnaces widely used in many industrial fields.
Simple & convenient operation
The electrical automation control adopts a human-machine interface, which simulates the real furnace form and is easy to operate. Batching, loading, smelting, and steelmaking can all be operated on the computer.
Environmentally friendly
Since the arc furnace has no combustion product emissions, such as smoke, waste gas and waste liquid, it has a lower environmental impact. This is also one of the important advantages of small electric arc furnace in waste treatment and environmental protection applications.
We are equipped with a variety of dust removal systems, and can match different forms of dust removal equipment according to the environmental protection requirements of different countries.
1 Ton Electric Arc Furnace Main Equipment Parameters
Equipment Performance
| No | Item | Unit | Parameters | Remark |
| 1 | EAF Type | Set | Eccentric bottom tapping EBT | |
| 2 | Rated Capacity | t | 1 | |
| Average Capacity | t | 3 | ||
| Maximum Steel Output | t | 5 | ||
| 3 | Transformer Rated Power | KVA | 315 | |
| 4 | Voltage | V | 380 | |
| 5 | Rated DC Current | A | 2863 | |
| 6 | Melt Capacity | KG | 200 | |
Equipment Component Parameters
| No. | Item | Unit | Parameters | Remark |
| 1 | Transformer | |||
| Rated Power | KVA | 500-1000 | ||
| Primary Voltage | KV | 6-10 | ||
| Secondary Voltage | V | 100 | ||
| Secondary Current | A | 100-1200 | ||
| Voltage Regulation Method | On-load voltage regulation & off-excitation voltage regulation | |||
| Efficiency | η = 95% - 98% | |||
| 2 | Furnace Size | |||
| Liquid Surface Diameter | m | 1-2 | ||
| Steel Liquid Depth | m | 0.5 - 1 | ||
| 4 | Electrode System | |||
| Electrode Diameter | mm | 150/1500 | Graphite Electrode | |
| Electrode Travel | mm | 2000 | ||
| Lifting Speed | m/min | 1.5/2.5 m/min | ||
| Lifting Drive Mode | Hydraulic Control | |||

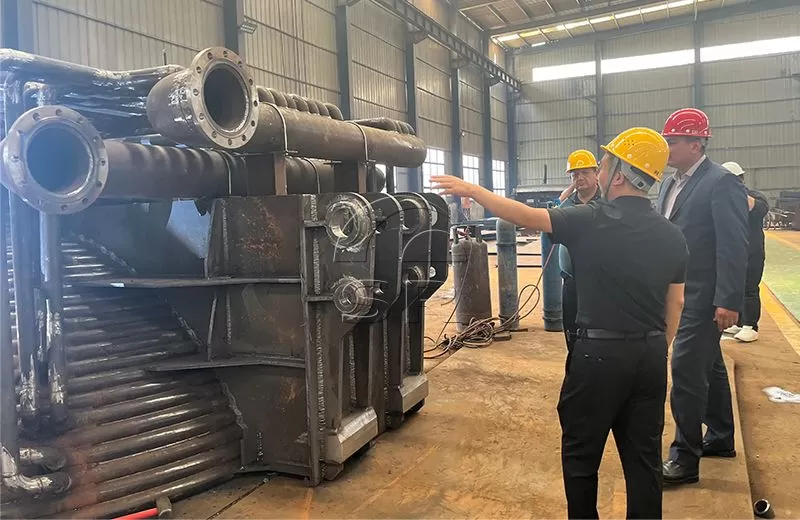

Small Electric Arc Furnace Manufacturer Scope of Supply
Furnace body: furnace shell, furnace door mechanism, steel outlet trough mechanism
Furnace cover: tubular water-cooled furnace cover, refractory center cover (this is the seller's drawing, the buyer makes it himself)
Furnace cover lifting and rotating mechanism: furnace cover lifting mechanism (oil cylinder, chain, gear, etc.), (Γ-shaped frame), Rotating mechanism, rotating locking mechanism
Tipping mechanism: arc frame, base, tilting hydraulic cylinder
Electrode cross arm and lifting mechanism: electrode support arm, electrode clamping device, lifting mechanism
Short network: stainless steel bracket, compensator, water-cooled cable, stainless steel bracket, water-cooled conductive copper pipe
Cooling water system: water inlet distributor, return water tank, pressure gauge, thermometer, valve
Hydraulic system: motor, pump, filter, oil tank, control valve, accumulator
High-voltage power supply system: disconnector, voltage transformer, vacuum circuit breaker, current transformer, lightning arrester, etc.
Electric furnace transformer
Low-voltage electrical system
Low-voltage power cabinet, PLC cabinet, main operating table, furnace front operating table, hydraulic operating box, control sensor, limit switch, etc.
Automation control system: Siemens PLC

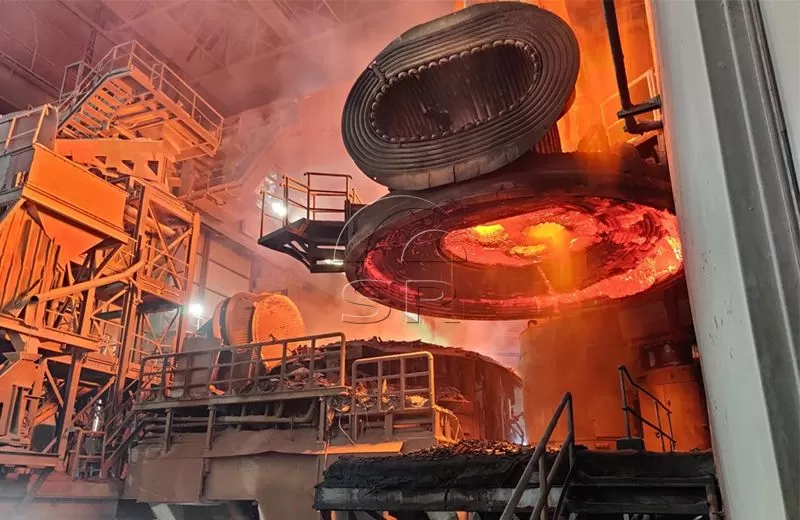

Mini Electric Arc Furnace Steelmaking Process
01
The basic process of EAF steelmaking furnace mainly includes the following steps:
02
Before steelmaking, it is necessary to clean the residual slag in the furnace and repair the furnace lining to ensure the smooth progress of the steelmaking process.
03
The scrap steel and other metal charge are loaded into the electric arc furnace as the main raw material for steelmaking.
04
Electric energy is input into the electric arc steelmaking furnace through graphite electrodes to generate electric arc as a heat source.
05
The high temperature of the electric arc is used to heat the charge so that it gradually melts into molten steel. In this process, auxiliary energy such as oil-oxygen injection, natural gas-oxygen or coal powder-oxygen may be used to accelerate the melting process.
06
Oxidant is added to the molten steel to remove impurity elements such as carbon and phosphorus in the molten steel through oxidation reaction, and the molten steel is heated and heated evenly. The main task of the oxidation period is to oxidize carbon and phosphorus in the molten steel, remove gas and inclusions, and heat the molten steel evenly.
07
After the oxidation period, reduction refining is carried out to remove oxygen and other impurity elements in the molten steel. The main task of the reduction period is to make reducing slag for diffusion, deoxidation, desulfurization, control chemical composition and adjust temperature. In the modern small electric arc furnace steelmaking process, the reduction period may adopt precipitation deoxidation as the main method and diffusion deoxidation as the auxiliary method to achieve the expected refining effect.
08
The refined molten steel is poured out of the EAF and enters the subsequent casting or rolling process.
Sanrui 1 Ton Electric Arc Furnace Technology Optimization
After optimizing the electric arc furnace technology, Sanrui has achieved the best balance between raw materials, scrap steel preheating, energy saving and environmental protection, smelting process control, automatic control, smelting cycle and production capacity. The electric arc furnaces inputs electric energy into the electric arc steelmaking furnace through graphite electrodes, and uses the arc between the electrode end and the charge as the heat source for steelmaking.
The melting furnace by mini electric arc furnace manufacturer Sanrui is a low-cost and high-efficiency method that has been applied to steel production, cobalt slag reduction smelting, nickel-copper slag reduction smelting, zinc slag reduction smelting, laterite smelting to produce nickel-iron alloys, chromite smelting to produce chromium-iron alloys, titanium slag smelting, battery waste treatment and other fields, and has broad application prospects.
The EAF furnace uses electricity as a heat source and can adjust the atmosphere in the furnace, which is extremely beneficial for smelting steel containing more easily oxidized elements. Using the high-temperature flue gas of the electric furnace, the raw materials are preheated through technology and equipment to achieve high efficiency, energy saving, environmental protection and high yield.
With the improvement of electric arc furnace equipment and smelting technology and the development of the electric power industry, the cost of electric furnace steel has been continuously reduced. Now electric furnaces are not only used to produce alloy steel, but also to produce ordinary carbon steel and iron ore pellets.
Services Provided by Sanrui
1.Mini electric arc furnace manufacturer Sanrui can provide basic layout and layout drawings.
2.Sanrui will send engineers to your factory to install and debug the machine, and provide reliable after-sales service.
3.Sanrui provides training for operators and maintenance personnel, and the smelting equipment is easy to operate and maintain.
4.Competitive price and excellent quality.
5.Low investment, high production efficiency, high return rate.
6.Stable performance of smelting equipment, safe production.
7.Products can be customized according to different needs.
8.Production capacity can be adjusted according to customer requirements.
9.Environmentally friendly, low energy consumption.
10.Rich experience in designing, manufacturing, installing, commissioning and commissioning steelmaking process equipment.
Small electric arc furnace manufacturer Sanrui provides engineering consulting, research and development, design, equipment supply, system integration and software compilation, construction, installation, commissioning, project management, technical services and training, production guidance, operation and maintenance, spare parts supply and other comprehensive engineering and technical services.
Sanrui has accumulated rich experience in the design, manufacture, installation, commissioning and commissioning of steelmaking process equipment.
Send us your project details, and our team of engineers will design an electric arc furnace steelmaking production line solution according to your needs.
