What is The Difference Between Electric Furnace and Electric Arc Furnace?

Both electric furnace and electric arc furnace are used in industrial processing, particularly metalworking, but they differ significantly in their design, operation, and applications. The primary difference between these two types of melting furnaces lies in their application and heating methods.

Electric furnaces are typically used for processes requiring precise temperature control, such as heat treating and melting non-ferrous metals. Their more direct heating method results in faster heating and higher thermal efficiency.

Electric arc furnaces are primarily used in the steel industry to melt scrap and produce high-quality steel. Electric arc furnaces use indirect heating, resulting in relatively lower thermal efficiency, but they offer advantages over electric furnaces in removing impurities, particularly dephosphorization and desulfurization.

Difference Between Electric Furnace and Electric Arc Furnace

1. Heating Mechanism:

Electric furnaces: Rely on heating elements to generate heat through electrical resistance. This method allows for precise temperature control and is ideal for processes such as annealing, tempering, or melting non-ferrous metals.

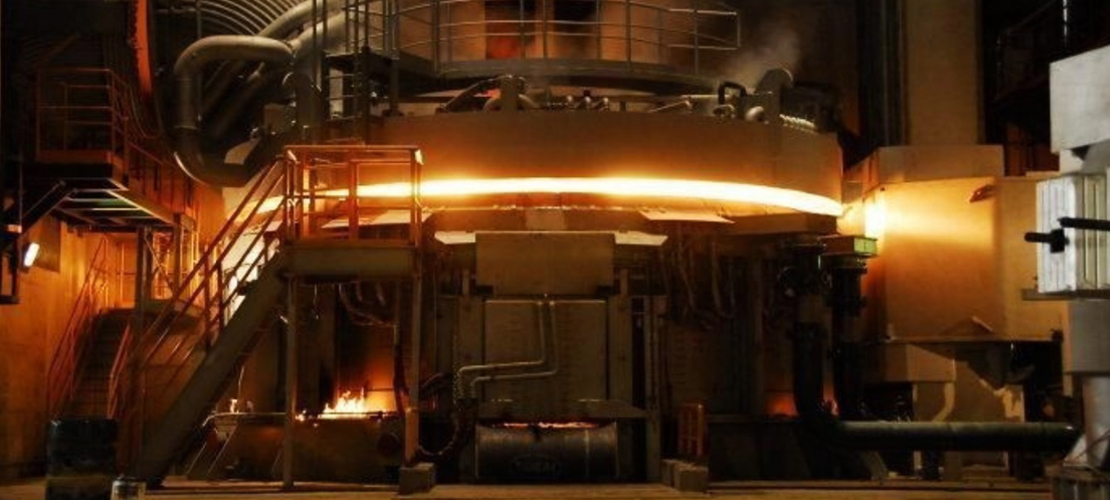

EAF: Utilize an electric arc formed between electrodes and the metal charge to generate extremely high temperatures. This method offers greater intensity and efficiency when melting large amounts of scrap.

2. Energy Efficiency:

Electric Furnaces: Large-scale metal melting is generally less energy-efficient due to their reliance on electrical resistance heating, which can be slower and more energy-intensive.

Electric Arc Furnaces: Steelmaking is more energy-efficient due to their ability to use 100% scrap and the lack of additional fuels such as coke. Therefore, electric arc furnaces are a more environmentally friendly steelmaking option.

3. Applications:

Electric Furnaces: Commonly used in processes requiring precise temperature control, such as heat treating, glassmaking, or melting non-ferrous metals such as aluminum or copper.

EAF: Primarily used in the steel industry to melt scrap and produce high-quality steel with minimal impurities. Electric arc furnaces are also used to connect small rolling mills, which are smaller and more flexible than traditional blast furnaces.

4. Scalability:

Electric Furnaces: Typically designed for smaller-scale operations, they are less adaptable to large-scale industrial processes.

Electric Arc Furnaces: Highly scalable, they can operate as either a small mill or a large industrial unit. This flexibility makes EAF melting furnaces suitable for a wide range of production volumes.

5. Environmental Impact:

Electric Furnace: While electric arc furnaces produce lower exhaust emissions than fossil fuel furnaces, their energy consumption remains high, depending on the process.

Electric Arc Furnace: They are more environmentally friendly for steel production because they reduce the need for virgin ore and minimize waste by utilizing scrap materials.

6. Metallurgical Quality:

Electric furnaces: They are suitable for processes requiring continuous and controlled heating, but may not achieve the same metallurgical quality as electric arc furnaces for certain steel grades.

EAF: Due to advances in equipment and refractories, they are capable of producing high-quality steels, including low-alloy steels, high-alloy steels, and even superalloys.

In summary, the choice of melting furnaces, whether electric furnace or electric arc furnace, depends on the specific requirements of the application, such as the scale of production, the type of material being processed, and the desired metallurgical quality.

Industrial electric furnaces excel in precision and control, while steelmaking electric arc furnaces offer advantages in steel production, such as high efficiency, scalability, and environmental friendliness.
