Analysis of the Principle, Characteristics, and Industrial Applications of Alternating Current Electric Arc Furnaces

In modern metallurgy and high-temperature materials processing industries, electric arc furnaces (EAFs) are indispensable core equipment. Among them, alternating current electric arc furnaces (AC furnaces) are widely used in steel smelting, non-ferrous metal smelting, and special material heat treatment due to their mature structure, stable operation, and wide applicability. This article will systematically introduce what an AC electric arc furnace is, its working principle, main characteristics, and typical application scenarios.

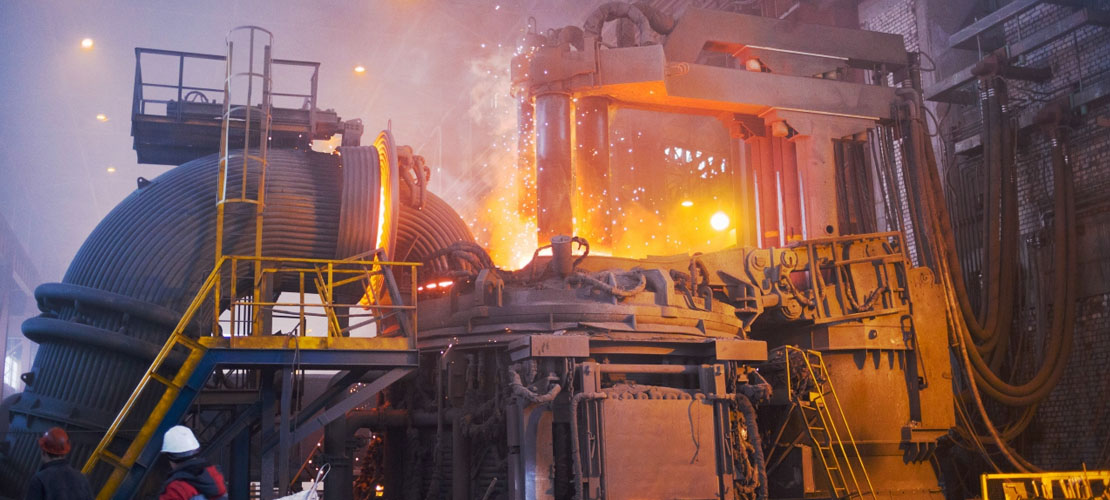

I. What is an Alternating Current Electric Arc Furnace?

An alternating current electric arc furnace is an industrial furnace that uses alternating current to generate electric arc heat to melt metal or heat furnace charge. It uses a three-phase alternating current power supply to convert electrical energy into high-temperature electric arc heat. The arc temperature can reach 3000–5000℃, sufficient to rapidly melt steel and many high-melting-point metals.

Compared to DC electric arc furnaces (DC EAFs), AC electric arc furnaces have a more classic structure and higher technological maturity, making them the earliest and most widely used type of electric arc furnace globally.

II. Basic Working Principle of AC Electric Arc Furnaces

AC electric arc furnaces typically use a three-phase AC power supply system. Their core components include:

• Three graphite electrodes

• Furnace body and lining

• Power transformer

• Electrode lifting and control system

During operation, the three electrodes are connected to three-phase AC power. When the electrodes approach the furnace charge, a stable electric arc is formed between the electrodes and the charge. The AC power continuously changes direction, causing the arc to fluctuate periodically, but under the regulation of the high-power control system, the arc maintains a continuous exothermic state.

The high temperature generated by the arc heats the furnace charge through the following methods:

• Direct radiation heating from the arc

• Convection of high-temperature gases within the furnace

• Resistant heating of the molten pool itself

The superposition of multiple heat transfer methods gives AC electric arc furnaces high heating efficiency.

III. Main Characteristics of AC Electric Arc Furnaces

1. Mature Technology and Stable Operation: AC electric arc furnaces have a long history of development, with highly mature control technology, furnace structure, and safety systems, making them suitable for long-term continuous industrial production.

2. Relatively Low Equipment Cost: Compared to DC electric arc furnaces, AC electric arc furnaces do not require complex rectifier systems, resulting in lower initial investment and maintenance costs.

3. Strong Adaptability: They can be used to smelt carbon steel, alloy steel, stainless steel, and some non-ferrous metals, with a wide range of furnace types and capacities to choose from.

4. Easy Maintenance and Upgrades: Graphite electrodes and electrical systems are highly versatile, facilitating replacement and technical upgrades, making them suitable for enterprises of different sizes.

5. High Energy Efficiency: With the support of modern automated control systems, AC electric arc furnaces can achieve precise power regulation, effectively reducing unit energy consumption.

IV. Typical Application Areas of AC Electric Arc Furnaces

Iron and Steel Smelting Industry

In the iron and steel smelting industry, AC electric arc furnaces are widely used in scrap steel smelting, alloy steel and special steel production, and are one of the core pieces of equipment in modern short-process steelmaking processes. By utilizing scrap steel as the primary raw material, AC electric arc furnaces can efficiently complete the melting, composition adjustment, and temperature control processes, significantly reducing dependence on iron ore resources and effectively decreasing energy consumption and carbon emissions.

In the production of alloy steel and special steel, AC electric arc furnaces offer advantages such as precise temperature control and flexible chemical composition adjustment, meeting the stringent requirements of high-strength steel, stainless steel, and tool steel for smelting processes. Therefore, this equipment plays a crucial role in medium and large-sized steel mills and specialized special steel enterprises.

The Foundry Industry

 AC electric arc furnaces are mainly used for melting cast steel parts, wear-resistant materials, and high-strength alloy materials. Due to the rapid heating speed and high molten pool temperature of the electric arc furnace, the melting cycle can be effectively shortened, improving production efficiency.

Furthermore, AC electric arc furnaces are highly adaptable to furnace charges, capable of handling various recycled materials, scraps, and alloy additives, which helps foundry enterprises control raw material costs. Stable arc heating and good internal temperature distribution produce a uniformly composed and consistently high-quality molten metal, providing a reliable guarantee for subsequent casting and forming.

Non-ferrous Metals and Alloys

AC arc furnaces also have significant applications in the smelting of non-ferrous metals and alloys, particularly suitable for the smelting and refining of copper alloys, nickel-based alloys, and some high-temperature alloys. Their high-temperature arc environment meets the process requirements of high-melting-point alloys, completing melting in a short time.

By precisely controlling the arc power and smelting atmosphere, AC arc furnaces help reduce metal loss and improve alloy composition stability. This makes them widely used in industries with high material performance requirements, such as aerospace, energy equipment, and chemical equipment.

Research and Experimental Furnaces

In research institutions, universities, and corporate R&D centers, small and medium-sized AC arc furnaces are often used for materials research, experimental smelting, and new process development. These devices are compact, flexible in operation, and facilitate repeated verification of different formulations and process parameters.

Research-grade AC arc furnaces can support various experimental needs, such as the development of new alloys, optimization of smelting processes, and research on high-temperature reactions, providing a reliable data foundation and technical support for industrial production. Furthermore, their expandable control system facilitates subsequent functional upgrades and improvements in experimental accuracy.

V. Conclusion

As a crucial component of the electric arc furnace technology system, AC electric arc furnaces continue to hold a significant position in the global metallurgical and high-temperature industries due to their reliability, economy, and wide applicability. For companies seeking to improve smelting efficiency, reduce production costs, and achieve stable operation, selecting a suitable AC electric arc furnace solution is of paramount importance.
