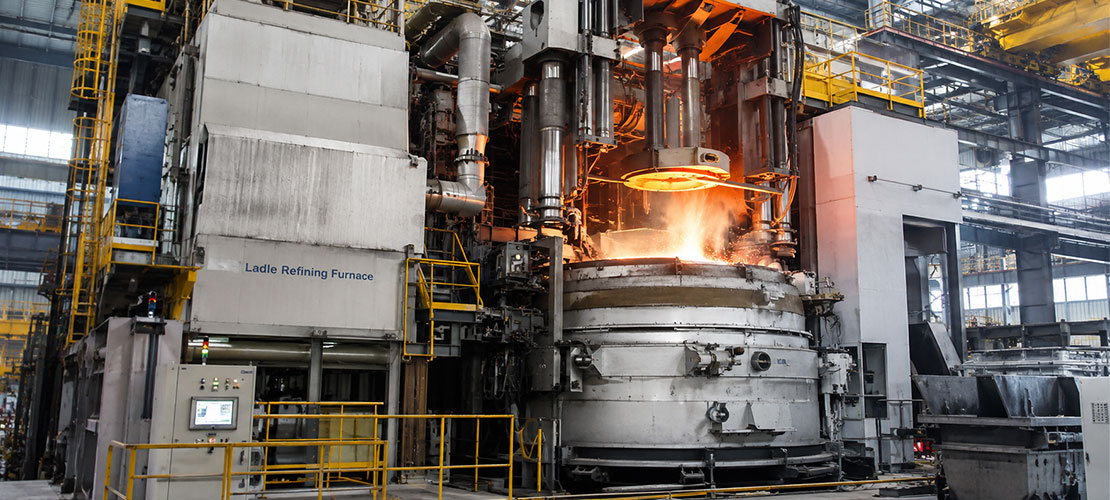

What Factors Determine the Price of Ladle Refining Furnace?

When purchasing a Ladle Refining Furnace, one of the first questions steel producers usually ask is: How much does a Ladle Refining Furnace cost? However, there is no standard price for a Ladle Furnace (LRF). Its total cost depends on the furnace capacity, electrical system, electrode equipment, water-cooling system, level of automation, dedusting system, and other configuration requirements.

Two LF Refining Furnaces with the same rated capacity may also have significantly different prices because their transformers, electrode systems, mechanical structures, control systems, and auxiliary equipment may be completely different. Therefore, instead of focusing only on the equipment price, it is better to first understand what determines the cost of a Ladle Refining Furnace and which configurations truly meet your production requirements.

I. What Determines the Cost of Ladle Refining Furnace?

The main factors affecting the cost of a Ladle Refining Furnaces include:

• Furnace capacity

• Transformer capacity

• Electrode system

• Hydraulic system

• Water-cooling system

• Level of automation

• Dedusting and fume treatment system

• Overall equipment configuration

The final price should be evaluated based on the complete equipment configuration rather than the furnace body alone.

1. Furnace Capacity

The LF furnace capacity is one of the most important factors affecting the cost of a Ladle Refining Furnace.

A unit designed to treat 10 tons of molten steel is naturally different from equipment designed to treat 30 tons, 50 tons, 80 tons, or even larger capacities. As the treatment capacity increases, the main mechanical structure, ladle transportation equipment, electrical system, electrode system, transformer, cooling system, and auxiliary equipment generally need to be upgraded accordingly.

Therefore, the first question a Ladle Refining Furnace manufacturer usually needs to understand is not "What is your budget?" but: How many tons of molten steel do you need to refine per heat?

The appropriate equipment capacity should be determined based on factors such as the existing steelmaking process, ladle size, continuous casting machine capacity, production targets, and expected refining cycle. A larger Refining Furnace does not necessarily mean a better choice. If the furnace capacity is significantly larger than the actual production requirements, the initial investment and operating requirements may increase without providing corresponding production benefits.

2. Transformer Capacity

The transformer is another important factor affecting the cost of an LRF.

During ladle refining, the transformer provides the electrical power required for arc heating to the electrode system. Therefore, transformer capacity is directly related to the heating capability and process requirements of the Ladle Refining Furnace. A higher-capacity transformer generally means a higher equipment investment, but simply choosing the largest transformer capacity is not necessarily the best solution.

The transformer should be matched according to the following factors:

• Ladle capacity

• Required heating rate

• Refining time

• Steel grade

• Production target

• Plant power supply conditions

• Overall equipment configuration

A properly matched transformer enables the Molten Steel refining Equipment to achieve the required heating performance while avoiding unnecessary investment caused by oversized electrical equipment. Modern LF systems can also improve energy utilization and electrode efficiency through advanced electrode control and process optimization.

3. Electrode System

The electrode system is an important component of an LRF and also has a significant impact on the overall equipment cost.

A typical Ladle Furnace uses graphite electrodes for arc heating. The electrode system includes electrode arms, electrode lifting mechanisms, current-conducting systems, and related electrical equipment. The design of the electrode system needs to match the transformer and actual operating conditions.

For example, a large-capacity Ladle Refining Furnace may require a more robust electrode lifting system and current-conducting system. The quality and design of these components affect not only the initial purchase price but also the long-term operating stability and maintenance requirements of the equipment.

Therefore, when comparing two LRF quotations, buyers should not only compare furnace capacity but also confirm what type of electrode system and high-current equipment are included in each quotation.

4. Hydraulic System

The hydraulic system is responsible for carrying out several important mechanical movements of the Ladle Refining Furnace. Depending on the specific furnace design, hydraulic equipment can be used for electrode lifting, furnace roof movement, rotating mechanisms, and other mechanical actions. Therefore, the configuration of the hydraulic system affects both equipment cost and operating reliability.

A simple hydraulic configuration may have a lower initial cost, while an advanced system using higher-quality components, monitoring functions, and more precise control may require a higher investment.

For steel plants operating Ladle Furnaces continuously, equipment reliability is particularly important because hydraulic system failures may cause equipment downtime and interrupt the refining process.

5. Water-Cooling System

The water-cooling system is an important component of many modern Ladle Refining Furnace designs.

The furnace roof and other equipment components exposed to high-temperature environments may require water cooling to protect the equipment and maintain stable operation.

The water-cooling system may include water-cooled panels, water-cooled furnace roofs, cooling-water circuits, water pumps, heat exchangers, monitoring equipment, and safety systems. Therefore, the complexity of the water-cooling system can also affect the overall price of the Molten Steel refining Equipment.

A properly designed cooling system should not only provide sufficient heat removal capacity but also have reliable monitoring functions and provide protection against abnormal cooling-water conditions. For example, modern LF solutions can use water-cooling safety protection and leakage detection technologies to improve equipment operating reliability.

6. Level of Automation

The level of automation is another important factor affecting differences between LRF quotations.

A basic Ladle Furnace can use relatively simple electrical and control systems, while a highly automated system may include PLC control, electrode control, process monitoring, data acquisition, automatic feeding, temperature control, and process optimization functions.

The purpose of automation is not only to reduce manual operation. A properly designed automation system can help improve process consistency, reduce operator errors, optimize energy consumption, and maintain stable molten steel quality.

Modern LF automation solutions can monitor and optimize process parameters, while more advanced systems can also integrate the Ladle Furnace with other steelmaking processes and production management systems. Therefore, before requesting a quotation, buyers should clearly define the level of automation they require.

For example: Basic Control → PLC Control → Automatic Process Control → Advanced Process Optimization. Different levels of automation may correspond to different equipment investments.

7. Dedusting and Fume Treatment System

The fume treatment system is also an important factor to consider when calculating the total cost of a Ladle Refining Furnace project.

During the refining process, fumes and dust may be generated around the electric furnace. A properly designed fume extraction and dedusting system can help collect these emissions and maintain a cleaner and safer working environment. The final configuration may include:

• Fume collection hood

• Fume ducts

• Fans

• Bag filter or other dedusting equipment

• Control system

• Supporting structures

The specific system configuration depends on the plant layout, local environmental requirements, furnace capacity, and overall steelmaking process. Therefore, an LRF quotation that does not include a dedusting system cannot be directly compared with a quotation that includes a complete fume extraction and filtration system. The price difference may not come from the furnace itself, but from the difference in the scope of supply.

8. Overall Equipment Configuration

When comparing the cost of a Ladle Refining Furnace, perhaps the most important point is the overall equipment configuration. An LRF is not simply a furnace body. Complete Molten Steel refining Equipment may include mechanical, electrical, hydraulic, cooling, automation, dedusting, and auxiliary systems. For example, a project may include:

• Ladle Furnace main body

• Water-cooled furnace roof

• Electrode arms and lifting system

• Transformer

• High-current system

• Hydraulic system

• Ladle car

• Cooling-water system

• Argon stirring system

• Alloy or wire feeding system

• Fume extraction and dedusting system

• PLC and electrical control system

• Automation and process monitoring system

The actual scope of supply varies from project to project. Some customers already have transformers, dedusting equipment, or certain auxiliary systems and only need to purchase the main LF equipment; while others require a complete turnkey solution. This difference in the scope of supply is one of the main reasons why two seemingly similar LRF quotations may have significantly different prices.

II. Why Do Ladle Refining Furnaces With the Same Capacity Have Different Prices?

This is a common question during equipment purchasing. The reason is that capacity alone cannot determine the complete configuration of an LRF. For example, two 50-ton Ladle Furnaces may have the same rated capacity, but their following configurations may be different:

• Transformer capacity

• Electrode system

• Water-cooled furnace roof design

• Hydraulic components

• Level of automation

• Dedusting system

• Auxiliary equipment

• Installation scope

• Spare parts configuration

One may be designed as a relatively basic refining unit, while the other may be configured as a highly automated production system. Therefore, when comparing LRF quotations, if buyers only compare the final price without comparing the technical scope of supply, it may be difficult to accurately evaluate the purchasing cost.

III. How to Compare Ladle Refining Furnace Quotations?

When comparing quotations from different Ladle Refining Furnace manufacturers, it is better to create a technical comparison table rather than look only at the final price. At minimum, the following items should be compared:

This makes it easier to clearly understand the equipment and services you are actually purchasing.

IV. Is a More Expensive Ladle Furnace Always Better?

Not necessarily. The best Ladle Refining Furnace is not the most expensive equipment, but the equipment whose configuration matches the customer's actual steelmaking requirements.

For example, a steel plant producing standard carbon steel may have completely different equipment requirements from a producer of stainless steel or high-grade alloy steel.

Similarly, a small steel plant with limited production capacity may not need the same level of automation as a large integrated steelmaking enterprise.

The right approach should be to balance the following factors: Initial Investment + Operating Cost + Production Capacity + Molten Steel Quality Requirements + Equipment Reliability. Rather than selecting equipment based solely on the purchase price.

V. What Information Should You Provide When Requesting a Ladle Refining Furnace Quotation?

If you are planning to purchase a Ladle Furnace, providing basic production information can help the manufacturer recommend a more suitable equipment configuration and prepare a more accurate quotation. The most useful information includes:

• Required furnace capacity: such as 20 tons, 30 tons, 50 tons, or 100 tons.

• Steel grade: carbon steel, alloy steel, stainless steel, or special steel.

• Production target: required heats or daily/hourly production.

• Existing steelmaking equipment: electric arc furnace, induction furnace, converter, or other equipment.

• Required refining functions: heating, alloy composition adjustment, desulfurization, temperature adjustment, argon stirring, etc.

• Power supply conditions: existing voltage, frequency, and power capacity.

• Automation requirements: basic operation, semi-automatic, or fully automatic operation.

• Plant layout: available space and equipment arrangement.

• Environmental requirements: local fume extraction and dedusting requirements.

• Project scope: equipment supply only, or complete installation and commissioning services

With this information, an LRF manufacturer can evaluate the equipment according to the actual process requirements and recommend a suitable configuration rather than providing a generic quotation.
