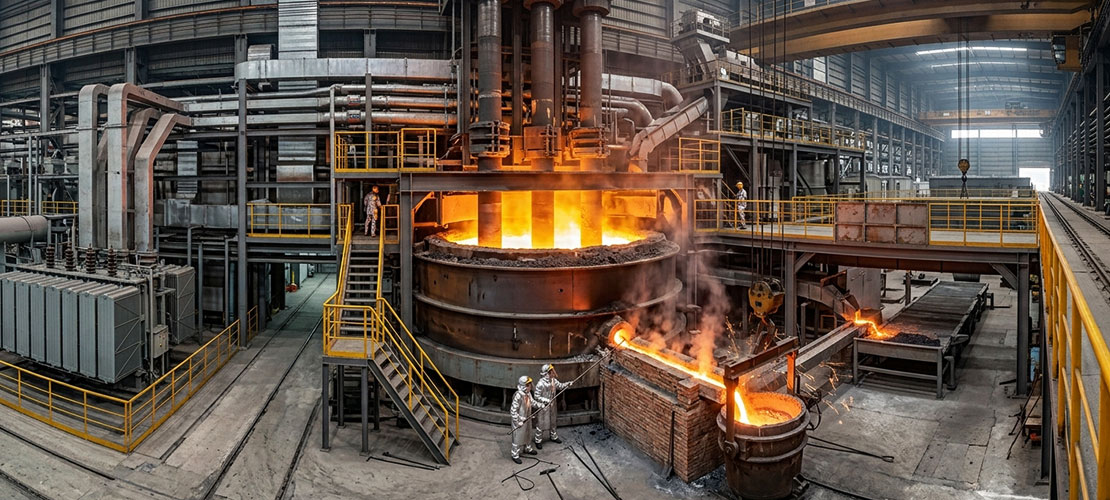

How Do Select the Capacity For an Industrial Silicon Submerged Arc Furnace?

In an industrial silicon smelting project, the Industrial Silicon Submerged Arc Furnace is one of the core pieces of equipment in the entire production system. For companies planning to build an industrial silicon production line, choosing the right furnace type and capacity is one of the key considerations during the project design stage.

So, how should the capacity of an Industrial Silicon Submerged Arc Furnace be selected? Does a higher KVA rating necessarily mean higher production efficiency?Actually, it does not. The capacity of Industrial Silicon Furnaces needs to be selected based on multiple factors, including target production, raw material conditions, power supply, production methods, equipment investment, and subsequent operating costs.

This article introduces the basic operating characteristics of an Industrial Silicon Submerged Arc Furnace, explains the meaning of SAF capacity, and discusses several key factors that need to be considered when selecting an Industrial Silicon Smelting Furnace.

I. What Is an Industrial Silicon Submerged Arc Furnace?

An Industrial Silicon Submerged Arc Furnace usually uses a submerged arc furnace for Industrial Silicon Smelting. It uses electrical energy to provide high temperatures and produces industrial silicon through the carbothermal reduction reaction between quartz/silica and carbonaceous reducing agents. Simply put, after the raw materials enter the furnace, they undergo smelting and reduction in the high-temperature reaction zone formed around the electrodes, ultimately producing molten industrial silicon, which is then discharged through the tapping system.

Industrial silicon production is a high-temperature and energy-intensive smelting process, and SAF is the primary energy input equipment in the process. According to published research, industrial silicon is generally produced through carbothermal reduction in a submerged arc furnace. The production process requires high temperatures, while electricity consumption accounts for a significant proportion of production costs.

Therefore, a suitable Industrial Silicon Furnace must not only meet production capacity requirements, but also maintain a good balance in terms of electrical energy utilization, furnace reaction stability, electrode systems, cooling, and gas treatment.

II. What Does the “Capacity” of an Industrial Silicon Submerged Arc Furnace Mean?

When selecting SAF, customers often see ratings such as: 8,000 kVA, 12,500 kVA, 16,500 kVA, 25,500 kVA, 33,000 kVA, 40,000 kVA and above. Here, kVA mainly represents the rated capacity of the furnace transformer and electrical system, and is also an important parameter commonly used to describe the scale of a submerged arc furnace. It is important to note that kVA does not equal the actual production output of industrial silicon.

For an Industrial Silicon Submerged Arc Furnace with the same capacity, actual production may vary under different raw material conditions, charge ratios, operating practices, power consumption levels, silicon recovery rates, and production schedules. Therefore, equipment should not be selected simply based on “how many tons of industrial silicon correspond to how many KVA.”

For example, a 25,500 kVA Industrial Silicon Submerged Arc Furnace can be used as a specific engineering configuration case. Some 25,500 kVA industrial silicon SAF systems use a 3 × 8,500 kVA transformer configuration and are equipped with electrode systems, short-network systems, cooling systems, charging systems, and gas treatment systems.

This also shows that furnace capacity is only the starting point for selection, rather than the complete basis for equipment selection.

III. How Should the Capacity of an Industrial Silicon Submerged Arc Furnace Be Selected?

In fact, there is no “best capacity” of industrial silicon SAF that is suitable for every project.

Submerged arc furnaces can be customized according to the requirements of different projects. Common equipment capacities may range from several thousand kVA to tens of thousands of kVA or even higher.

For example, 8,000 kVA, 12,500 kVA, 16,500 kVA, and 25,500 kVA can all serve as reference configurations for projects of different scales, but the specific parameters need to be determined according to the product, production requirements, and process conditions.

For large industrial silicon projects, 25,500 kVA is also a representative engineering configuration. Related equipment solutions generally integrate the transformer, electrodes, furnace body, short network, cooling, charging, and gas systems into an overall design.

Therefore, instead of asking: “What capacity of Industrial Silicon Submerged Arc Furnace is the best?” a more accurate question would be: “What capacity of Industrial Silicon Submerged Arc Furnace is most suitable for my production target and factory conditions?”

1. First Determine the Target Production

This is the most important factor when selecting the capacity of an Industrial Silicon Submerged Arc Furnace. The company should first determine: How much industrial silicon is planned to be produced annually?

For example, is the target a few thousand tons for small-scale production, tens of thousands of tons, or an even larger industrial silicon production project? The higher the target output, the larger the furnace capacity generally needs to be, or multiple submerged arc furnaces can be configured to meet the total production capacity.

However, it should be noted that KVA cannot be calculated based solely on annual production. Actual design also needs to consider:

• Annual operating days

• Daily operating hours

• Planned production

• Specific energy consumption per product

• Raw material quality

• Process stability

• Equipment maintenance time

Therefore, a more reasonable approach is to first determine the target annual production and production schedule, and then have the equipment manufacturer match the furnace capacity according to the process parameters.

2. Consider Local Power Supply Conditions

Industrial Silicon Smelting is an energy-intensive production process, so power supply capacity is one of the important limiting factors in Industrial Silicon Furnace selection. As furnace capacity increases, the requirements for transformers, grid capacity, power supply stability, and electrical distribution systems generally increase as well.

For example, Sanrui 25,500 kVA Industrial Silicon Submerged Arc Furnace can use a 25,500 kVA transformer configuration, with the corresponding voltage level and voltage regulation range designed according to specific requirements.

Therefore, before determining the furnace capacity, it is necessary to confirm how much power the plant can obtain and whether the local power grid can provide stable support for continuous operation. If the available power supply is limited, blindly selecting a large Industrial Silicon Submerged Arc Furnace may increase pressure on both project construction and operation.

3. Determine Furnace Type and Process Parameters According to Raw Material Conditions

The main raw materials for industrial silicon include silica/quartz as well as carbonaceous reducing agents such as coal, petroleum coke, and wood chips. Differences in the chemical composition, particle size, moisture content, reactivity, and electrical resistance of raw materials can all affect furnace operation.

Industrial Silicon Smelting is not simply a process of heating and melting raw materials, but a complex high-temperature reduction process. When raw material conditions change, the reaction zone inside the furnace, charge permeability, electrode operating conditions, and energy consumption may also change. Therefore, when selecting the capacity of an Industrial Silicon Submerged Arc Furnace, the following factors should be considered together:

Raw material properties + charge mix + smelting process + target production.

This is also why professional SAF manufacturers generally need customers to provide detailed raw material and production requirements before determining the specific furnace type and technical parameters.

4. Do Not Look Only at KVA; Consider the Electrode System as Well

Electrodes are one of the important working components of a submerged arc furnace. For industrial silicon SAF, electrodes need to operate for long periods under high-temperature and high-current conditions. Their diameter, arrangement, lifting system, and control can all affect furnace operation. As furnace capacity increases, the electrode system and related conducting system also need to be properly matched.

Therefore, when comparing different Industrial Silicon Furnaces, customers should not only ask, “What is the KVA rating of this furnace?” They should also consider: electrode type and diameter / electrode pitch circle / electrode lifting system / secondary short-network system / transformer parameters / current and voltage ranges, etc. These parameters together determine whether the submerged arc furnace can operate stably.

5. Consider Energy Consumption and Long-Term Operating Costs

For industrial silicon producers, equipment investment is only one part of the overall project cost. Electricity costs, raw material consumption, maintenance expenses, and downtime during long-term operation are equally important.

Industrial Silicon Smelting has relatively high energy requirements. Relevant research indicates that the actual energy consumption of industrial silicon production is generally around 11–13 MWh/t, although the specific level can vary depending on raw materials, processes, and production conditions.

Therefore, when selecting an Industrial Silicon Submerged Arc Furnace, instead of simply pursuing a “larger capacity,” it is better to focus on:

Specific energy consumption per product, equipment operating stability, and overall production efficiency.

For example, the design of the short-network system, electrode control, transformer efficiency, furnace structure, and cooling system can all affect equipment operation.

A larger-capacity furnace is not necessarily more economical than a properly configured medium-capacity furnace if its actual operating efficiency is not high.

6. Consider Environmental Protection and Gas Treatment Systems

Modern industrial silicon production needs to consider not only Industrial Silicon Smelting efficiency, but also gas collection and environmental protection requirements.

During submerged arc furnace operation, dust-containing gas and furnace gas are generated. Therefore, the furnace roof structure, gas collection, dust removal system, and related environmental protection equipment need to be matched with the furnace capacity.

For semi-closed or closed SAF, the corresponding gas treatment system also needs to be designed according to local environmental standards and the specific process requirements of the project.

Therefore, when selecting an Industrial Silicon Submerged Arc Furnace, the environmental protection system should not be treated as an “additional system” to be considered at the end. Instead, it should be planned together with the furnace body, electrical system, and production capacity at the initial stage of project design.

7. Consider Future Expansion Plans

If a company currently has relatively small production requirements but plans to expand its industrial silicon production capacity in the future, the furnace capacity should also take future development into consideration. There are generally two approaches:

Option 1: Choose a larger-capacity single submerged arc furnace.

This approach can reduce the number of furnace units and centralize production, but it places higher requirements on power supply, equipment investment, and project infrastructure.

Option 2: Configure multiple medium-capacity submerged arc furnaces.

This approach provides greater flexibility in production organization and capacity expansion. For example, a company can initially build one furnace and add new production lines later according to market demand.

The specific approach should be determined based on factors such as the power supply conditions, land availability, investment budget, target production, and future development plans of the project.

IV. What Other Equipment Parameters Should Be Considered When Selecting an Industrial Silicon Submerged Arc Furnace?

In addition to capacity, customers are advised to focus on the following aspects:

• Furnace Structure: Furnace dimensions, refractory lining, furnace bottom structure, and furnace cooling method can all affect equipment service life and operating stability.

• Transformer System: Transformer capacity, voltage level, voltage regulation range, and cooling method need to be matched with the process requirements of the submerged arc furnace.

• Electrode System: Electrode diameter, lifting speed, electrode control, and electrode arrangement can all affect the reaction zone and operating stability inside the furnace.

• Short-Network System: The short network carries high current, so its structural design and electrical energy losses are particularly important for large-scale SAF systems.

• Cooling System: Reliable cooling systems are required for the electrode system, short network, and certain areas of the furnace body to ensure long-term stable equipment operation.

• Charging and Gas Systems: Stable continuous charging and effective gas collection are also important for stable industrial silicon production and environmentally compliant operation.

There is no fixed answer when it comes to selecting the capacity of an Industrial Silicon Submerged Arc Furnace.

KVA can help determine the electrical scale of a submerged arc furnace, but whether the equipment is suitable for a specific industrial silicon project ultimately depends on the comprehensive match between production targets, power supply, raw material conditions, smelting processes, equipment configuration, and long-term operating costs.

For companies planning to build an industrial silicon production line, it is recommended to first clarify the target production and project conditions before determining the capacity of the Industrial Silicon Furnace, and then have a professional SAF equipment manufacturer design the furnace according to the actual process requirements.

Sanrui can provide customized Industrial Silicon Submerged Arc Furnace solutions according to different Industrial Silicon Smelting requirements, including the furnace body, electrode system, transformer, short-network system, cooling system, charging system, and gas treatment system.

If you are planning a new industrial silicon production project, you can provide your target production, raw material conditions, and local power supply conditions. Based on this information, we can further evaluate the suitable Industrial Silicon Submerged Arc Furnace capacity and equipment configuration.

FAQ

1. What unit is used to indicate the capacity of an Industrial Silicon Submerged Arc Furnace?

An Industrial Silicon Submerged Arc Furnace usually uses kVA or MVA to indicate its electrical capacity. Actual equipment selection should not be based on KVA alone, but should also take production targets, raw materials, and process parameters into consideration.

2. Does a higher KVA Industrial Silicon Furnace have higher production capacity?

Generally, a higher electrical capacity means greater production potential, but actual production is also affected by raw materials, specific energy consumption, silicon recovery rate, equipment operating conditions, and production management. Therefore, production output cannot be determined simply according to KVA.

3. Why is SAF used for industrial silicon production?

Industrial silicon is generally produced through the carbothermal reduction of silica/quartz and carbonaceous reducing agents. The process requires high temperatures and large amounts of electrical energy. SAF (Submerged Arc Furnace) can provide the high-temperature reaction environment required for Industrial Silicon Smelting and is one of the core pieces of equipment in industrial silicon production.

4. What scale of project is a 25,500 kVA Industrial Silicon Submerged Arc Furnace suitable for?

25,500 kVA can serve as a reference configuration for a large-scale industrial silicon production project, but the applicable production capacity cannot be determined by KVA alone. It needs to be designed according to the project's target production, power supply conditions, raw materials, and process requirements.

5. What is the difference between an Industrial Silicon Furnace and a Submerged Arc Furnace?

In industrial silicon production, an “Industrial Silicon Furnace” generally refers to a submerged arc furnace used for industrial silicon smelting, namely an Industrial Silicon Submerged Arc Furnace.
