What Factors Affect the Production Efficiency of a Ladle Refining Furnace?

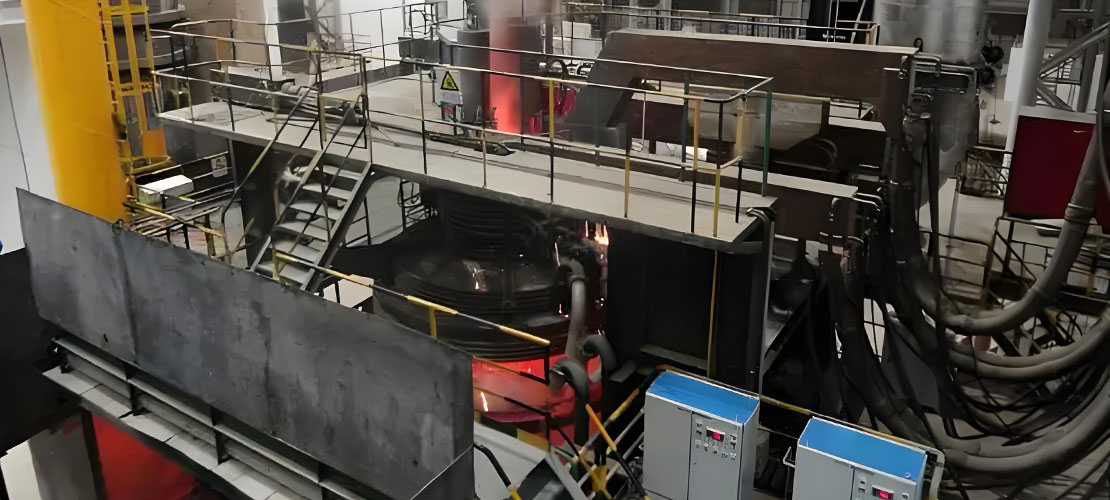

A Ladle Refining Furnace (LRF) is an important piece of smelting equipment in modern steelmaking production lines. It is mainly used for molten steel refining after tapping from an electric arc furnace or basic oxygen furnace. Through processes such as heating, alloy composition adjustment, desulfurization, and inclusion control, Ladle Furnace helps steel plants improve molten steel quality and prepare it for subsequent continuous casting.

For steel plants, the production efficiency of a Ladle Refining Furnace affects not only molten steel treatment time but also the operating rhythm, energy consumption, and production costs of the entire production line. So, what factors affect the production efficiency of a Ladle Refining Furnace? How can efficiency be optimized through equipment selection and daily operation?

I. Transformer Capacity and Heating Efficiency

Transformer capacity is one of the important factors affecting the production efficiency of a Ladle Refining Furnace. An LRF typically uses graphite electrodes to generate an electric arc between the electrodes and the molten steel, providing the heat required for molten steel heating and refining.

Under otherwise similar conditions, an appropriate transformer capacity and a stable power supply system help improve heating efficiency and shorten the time required to raise the molten steel temperature. If the transformer capacity is insufficient, the equipment may struggle to meet the target heating rate and production cycle. However, a larger capacity does not necessarily mean higher overall efficiency. The ladle capacity, initial molten steel temperature, target temperature, and actual production requirements must also be considered.

Therefore, when selecting a Ladle Refining Furnace, steel plants should consider the treatment volume, heating requirements, and production rhythm to ensure that the transformer capacity and electrode system are properly matched.

II. Ladle Capacity and Production Rhythm

Ladle capacity directly affects the amount of molten steel processed in each cycle and determines whether the Ladle Furnace can coordinate effectively with the preceding and subsequent production processes.

If the processing capacity of the Ladle Furnace does not match the tapping volume of the electric arc furnace or basic oxygen furnace, problems such as waiting for molten steel, excessive equipment loads, or poor coordination with subsequent continuous casting may occur. These issues can reduce the operating efficiency of the entire steelmaking production line.

For companies planning to build or expand steelmaking production lines, the appropriate Ladle Furnace specifications should be determined based on annual steel production, tapping volume per heat, the number of heats processed per day, and the continuous casting schedule. Selecting the right capacity can improve equipment utilization while avoiding unnecessary investment and operating costs.

III. Refining Processes and Molten Steel Quality Requirements

Different steel grades have different requirements for molten steel temperature, chemical composition, sulfur content, and inclusion control. As a result, the treatment time required for Molten Steel Refining can vary.

For example, certain high-quality steels and alloy steels require stricter control of chemical composition, desulfurization, or inclusion removal, which may require more precise process control. If the initial molten steel temperature is too low, or additional time is needed to adjust the composition after alloy additions, the refining cycle may also become longer.

Therefore, production efficiency should not be measured solely by heating speed. Molten steel quality requirements and the overall refining cycle must also be considered. By optimizing the charging sequence, properly controlling the heating process, maintaining stable process parameters, and strengthening process monitoring, steel plants can reduce unnecessary waiting and repeated treatment while meeting molten steel quality requirements.

IV. Electrode Systems and Automation Control

The electrode system is a key component of a Ladle Refining Furnace, and its operating condition directly affects arc stability and the heating process.

Electrode lifting response, electrode regulation accuracy, the condition of the conductive system, and arc stability all influence actual heating performance. If electrode regulation is unstable or related components are severely worn, electrode consumption may increase and heating efficiency may decline, potentially leading to equipment downtime.

Automation control systems help stabilize electrode regulation and the heating process while improving operational consistency. For steel plants with fast production cycles or strict molten steel quality requirements, properly configured automation functions can reduce variations caused by manual operation and help maintain more stable equipment performance.

V. Water Cooling Systems and Equipment Operating Stability

During operation, a Ladle Refining Furnace is exposed to high temperatures, arc radiation, and thermal shock. The furnace roof, water-cooled cables, and other water-cooled components must maintain reliable cooling performance under the specified operating conditions to ensure safe equipment operation.

If the cooling water flow rate is insufficient, water passages become blocked, or cooling components develop leaks, equipment operation may be affected and unplanned maintenance shutdowns may occur, reducing equipment availability.

Therefore, the water cooling system of a Ladle Furnace should be configured according to the equipment design requirements and maintained regularly. Cooling water flow rate, temperature, and pipeline conditions should be checked periodically. A stable and reliable cooling system helps reduce unplanned downtime and supports the continuous operation of the molten steel refining process.

VI. Equipment Maintenance and Key Component Quality

Equipment failures and unplanned shutdowns are other important factors affecting the production efficiency of a Ladle Refining Furnace. The electrodes and conductive components, hydraulic system, mechanical transmission devices, water-cooled components, and electrical control system all require inspection and maintenance according to actual operating conditions.

If key components are unreliable or equipment maintenance is inadequate, problems such as abnormal electrode regulation, sluggish hydraulic operation, and cooling system failures may occur. These issues can extend the refining cycle and disrupt the normal operation of the entire production line.

For steel plants, it is important to consider not only the initial purchase cost of a Ladle Refining Furnace but also equipment reliability, spare parts availability, maintenance convenience, and long-term operating costs. Choosing Refining Furnaces with a well-designed structure, reliable key components, and convenient maintenance can help improve equipment availability and reduce the risk of production downtime over the long term.

VII. How to Improve the Overall Production Efficiency of a Ladle Refining Furnace?

Improving the production efficiency of a Ladle Refining Furnace requires coordination between equipment configuration, refining processes, and production management.

• First, transformer capacity, ladle capacity, and the electrode system should be properly matched to the actual molten steel treatment volume and target production cycle. Second, refining processes should be optimized according to the quality requirements of different steel grades to reduce unnecessary heating and waiting time. Meanwhile, stable automation control, reliable water cooling systems, and standardized equipment maintenance can help reduce failure rates and improve equipment utilization.

• It is important to note that the efficiency of a Ladle Refining Furnace should not be measured simply by shortening the refining time. Only by reducing the appropriate treatment cycle and minimizing unplanned downtime while meeting molten steel quality, temperature control, and production safety requirements can steel plants genuinely improve the efficiency of the entire steelmaking production line.

The production efficiency of a Ladle Refining Furnace is affected by various factors, including transformer capacity, ladle specifications, refining processes, electrode systems, water cooling systems, and equipment maintenance. Different steel plants require different LRF configurations depending on their production scale and operating requirements.

When selecting Ladle Furnaces, companies should consider steel grade requirements, molten steel treatment volume, production rhythm, and long-term operating costs to determine the most suitable equipment solution for their processes. Appropriate equipment configuration and stable operating management can help improve molten steel refining efficiency and support reliable, efficient steel plant production.
