Types of Water-cooled Cables

Types of Water-cooled Cables

In terms of application scenarios, water-cooled cables are mainly divided into high-frequency equipment specific types (horn locking design), smelting equipment specific types (such as tin plated anti-corrosion electrodes for electric arc furnaces and submerged arc furnaces), and special scenario application types (such as sealing ring design for vacuum furnaces and cold extrusion process for single crystal furnaces).

1、 Horn locking nut water-cooled cable

The connection with the device is a conical joint, with nuts tightened to ensure maximum contact surface, reliable current transmission, and good cooling water sealing effect. Used for high-frequency equipment.

2、 Electric arc furnace water-cooled cable

The electrode surface is treated with tin plating, which is corrosion-resistant and has good conductivity. There is a lifting ring at the end for easy on-site installation. The rubber hose is fastened to the electrode with two stainless steel clamps, which are safe and reliable. The outer protective sleeve uses high-quality rubber hose, which is soft and has good bending performance. The soft wire is made of high-strength enameled wire, which is corrosion-resistant and has no surface skin effect.

3、 Coaxial water-cooled cable

Two channels of water, two channels of electricity, coaxial, less leakage inductance, low energy loss, energy-saving. 4、 The water-cooled cable electrode of the resistance furnace is processed from a whole copper rod; Soft wires are made of enameled wire, and long-term use does not produce green embroidery; The outer sheath rubber hose has high resistance to working water pressure and will not break; The cooling water circuit is unobstructed and the cooling effect is good; The outer sheath rubber hose has high breakdown voltage resistance, transmits large currents, and is safe and reliable; Multiple specifications and models for users to choose from.

4、 Electric slag furnace water-cooled cable

There are various structures for electrodes (flat flange type, horn mouth type, rotating electrode type), and there are three types of inlet and outlet positions (on the side of the electrode; on the flange plane; on the end face of the electrode); Soft wires are made of enameled wire, and long-term use does not produce green embroidery; The outer sheath rubber hose has high resistance to working water pressure and will not break; The cooling water circuit is unobstructed and the cooling effect is good; The outer sheath rubber hose has high breakdown voltage resistance, transmits large currents, and is safe and reliable; Multiple specifications and models for users to choose from.

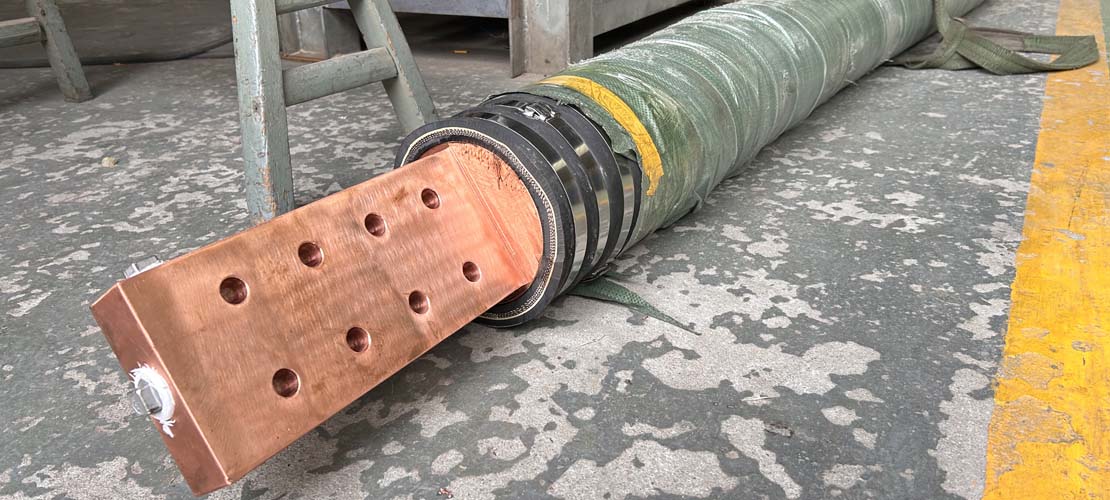

5、 Water cooling cable for mineral furnace

The electrode material is T2 copper, and the electrode structure can be made according to user requirements. The surface is treated with tin plating; The position of the inlet and outlet can be determined according to the installation location of the user's equipment. The outer sheath rubber hose is treated with high temperature fire prevention, suitable for the working environment of the mineral heat furnace, capable of transmitting high currents, and safe and reliable.

6、 Vacuum furnace water-cooled cable

One end of the cable electrode is a horn shaped locking nut type, connected to the induction coil inside the vacuum furnace. The other end of the electrode structure is a flat flange type, connected to the capacitor. The outer sheath of the cable has a tapered sealing ring to ensure sealing with the outer shell of the vacuum furnace. In the water-cooled cable part inside the vacuum furnace, the outer sheath is treated to prevent high temperature. The cooling water of the water-cooled cable directly enters the induction coil inside the vacuum furnace for circulating cooling. It is widely used in neodymium iron boron magnetic material vacuum sintering furnaces and can replace imported cables from abroad.

7、 Polycrystalline furnace water-cooled cable

The water-cooled cable electrode is connected to the coaxial electrode of the induction coil of the polycrystalline silicon purification furnace. The structure of the water-cooled cable electrode is a 90 ° elbow horn taper locking type, which ensures that it does not twist when connected to the polycrystalline silicon purification furnace, ensuring natural bending and improving the service life of the water-cooled cable.

8、 Single crystal furnace water-cooled cable

The non-contact electrode has undergone anti-corrosion treatment on the surface, and the inlet and outlet are sealed with encrypted sealing rings and connected with live threads. The soft wire is made of enameled wire (the only one in the country), which is rust proof, soft, and not easy to break. The soft wire is connected to the electric grade cold extrusion and tin treatment, and the contact effect is very good. The outer protective sleeve used is a special high-quality rubber hose customized from the rubber factory. The rubber tube and electrode are sealed tightly with purple copper clamps and connected by special equipment. The water-cooled cable has a small bending radius and a long service life.

9、 Medium frequency furnace water-cooled cable

The soft wire uses enameled wire, which has no surface skin effect when transmitting intermediate frequency current, high energy transmission efficiency, low heat generation, and the outer sheath rubber tube is not easily aged; The enameled wire has undergone softening treatment, resulting in low stress at the connection point with the electrode. When repeatedly tilting and pouring the furnace, the connection point between the water-cooled cable electrode and the soft wire will not break.

10、 High frequency machine water-cooled cable

Contactless electrode, soft wire enameled wire, used for high-frequency surface quenching, high-frequency heat transfer, high-frequency melting, without surface skin effect, energy-saving and durable.
