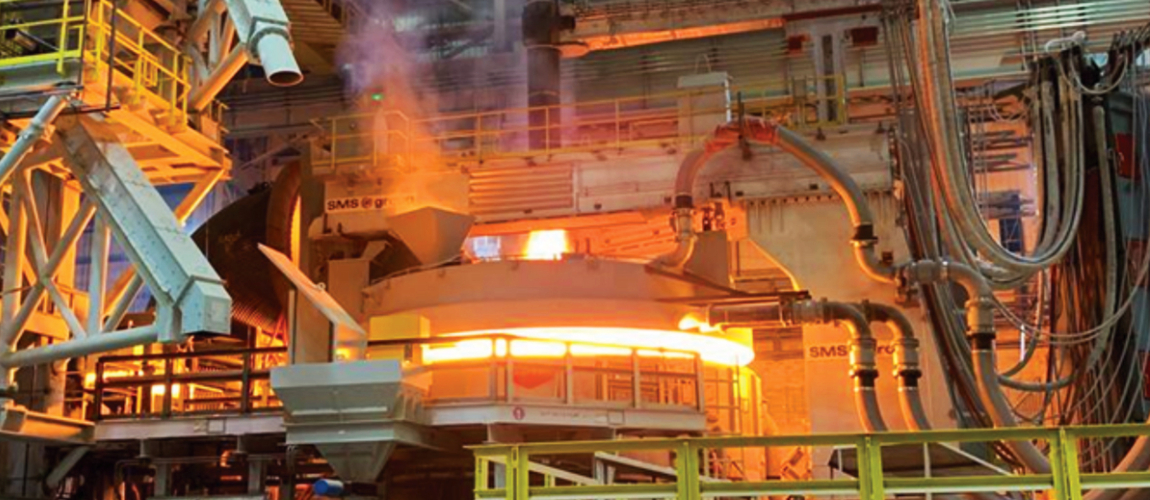

High-Efficiency Electric Arc Furnace Steelmaking Technology: The Core Path Toward Energy Saving, Environmental Protection, and Intelligent Manufacturing

High-Efficiency Electric Arc Furnace Steelmaking Technology and Future Development Trends

As the global steel industry accelerates toward greener, lower-carbon, and more intelligent manufacturing, electric arc furnace (EAF) steelmaking has become an increasingly important direction for modern steel production due to its advantages in energy efficiency, resource recycling, and operational flexibility. Particularly under global carbon reduction initiatives, EAF steelmaking technology continues to evolve, and high-efficiency production capability has become a key indicator of competitiveness for steel manufacturers.

Before the 1950s, traditional electric arc furnace steelmaking typically relied on cold scrap steel as the primary raw material. The process involved slag removal and slag replacement operations between the oxidation and reduction stages, resulting in a melting cycle of approximately 3 to 4 hours. In contrast, modern EAF steelmaking has reduced the production cycle to less than one hour through technological innovations such as large-capacity furnaces, ultra-high-power operation, auxiliary energy systems, and continuous production processes. These advancements have dramatically improved both production efficiency and energy utilization.

Large-Capacity Electric Arc Furnaces Significantly Improve Steelmaking Efficiency

One of the most significant developments in modern EAF steelmaking is the increase in furnace capacity. Early electric arc furnaces typically had capacities of only 3 to 5 tons, whereas mainstream modern EAFs now operate with tapping capacities ranging from 70 to 150 tons, with some large-scale steel plants utilizing even larger systems.

The expansion of furnace size not only increases output per heat but also drives the overall automation and mechanization of the steelmaking process. Modern large-scale EAFs are equipped with intelligent control systems, automated charging systems, automatic temperature and sampling devices, and highly efficient dust collection systems. These technologies effectively reduce manual intervention and minimize non-productive downtime.

At the same time, large-capacity EAFs offer clear advantages in thermal efficiency. Improved mechanization and automation optimize charging, power-on operation, tapping, and slag handling, resulting in lower overall energy consumption.

Today, large electric arc furnaces have become core equipment for achieving high-efficiency and low-cost steel production in modern steel plants.

Ultra-High-Power Electric Arc Furnaces Become the Core Technology of Modern EAF Steelmaking

To further increase melting speed and production throughput, modern electric arc furnace steelmaking widely adopts ultra-high-power (UHP) technology. UHP EAFs are designed with larger transformer capacities to increase power input per ton of steel, thereby intensifying the melting process.

Since the 1990s, mainstream EAF transformer power levels have reached approximately 800–1000 kVA per ton, significantly improving arc energy input efficiency.

The key advantages of ultra-high-power EAFs include:

• Shorter scrap melting time

• Higher steel output per unit time

• Lower electricity consumption per ton of steel

• Improved temperature uniformity within the molten bath

• Enhanced capability for continuous production

Because high power input enables rapid formation of stable electric arcs, modern EAF steelmaking operations can achieve significantly faster production cycles, providing strong technical support for short-process steelmaking and green steel manufacturing.

Auxiliary Energy Technologies Improve Overall EAF Energy Efficiency

The melting of scrap steel in electric arc furnace steelmaking requires a substantial amount of thermal energy. Under normal conditions, the thermal enthalpy of one ton of molten steel at 1600°C is approximately 380 kWh, while the total energy requirement for producing one ton of qualified molten steel is around 600–700 kWh.

Relying solely on three-phase electric arc heating is no longer sufficient for modern high-efficiency steel production. As a result, auxiliary energy technologies have become an essential component of modern EAF operations.

Common auxiliary energy technologies include:

• Coal-oxygen combustion systems

• Oil-oxygen burner systems

• Oxygen lance injection technology

• Wall-mounted burner systems

• Post-combustion technology

• Bottom stirring systems

In modern EAF steelmaking, auxiliary energy typically accounts for approximately 10% of total energy input, with oxygen consumption reaching 30–40 cubic meters per ton of steel.

These technologies not only provide additional heat sources but also enhance metallurgical reactions. For example, they can:

• Rapidly cut large scrap pieces

• Improve heating efficiency in cold zones

• Increase carbon content in the molten bath

• Promote foamy slag formation

• Improve chemical energy utilization

Through the combined utilization of electrical energy and chemical energy, modern electric arc furnaces achieve significantly higher energy efficiency.

Scrap Preheating Technology Becomes a Key Solution for Energy Saving and Cost Reduction

As the steel industry faces increasingly strict energy-saving and emission-reduction requirements, scrap preheating technology has become a major development focus in electric arc furnace steelmaking.

Traditional EAF systems release large volumes of high-temperature exhaust gas directly into the atmosphere, resulting in substantial energy loss. Modern scrap preheating systems recover waste heat from exhaust gases and use it to preheat scrap steel before charging, thereby reducing electricity consumption.

Widely adopted technologies include:

• Shaft furnace electric arc furnaces

• Continuous scrap preheating EAF systems

• Twin-shell electric arc furnaces

• CONSTEEL continuous charging systems

These advanced furnace designs not only improve thermal energy recovery efficiency but also enable continuous scrap conveying and preheating, further reducing non-power-on time.

Industry data shows that scrap preheating technology can significantly reduce electricity consumption per ton of steel while also lowering exhaust emissions and dust pollution, aligning with the goals of green steel manufacturing.

Reducing Non-Power-On Time Drives the Development of Continuous EAF Steelmaking

Traditional electric arc furnace steelmaking utilized separate oxidation and reduction stages, involving extensive slag removal and slag replacement operations that resulted in long non-power-on periods.

Modern EAF steelmaking has gradually eliminated the traditional three-stage operational process and optimized production techniques to enable more continuous steelmaking operations.

Examples include:

• Secondary refining technologies (LF, VD)

• Eccentric bottom tapping systems

• Automated charging systems

• Online temperature measurement and sampling

• Bottom argon stirring

• Intelligent oxygen blowing control

These technologies allow many metallurgical operations to be transferred outside the furnace, thereby shortening the furnace processing cycle and improving equipment utilization rates.

In addition, modern electric arc furnace steelmaking is gradually moving toward fully continuous steelmaking technology, which is expected to achieve even higher levels of stability, efficiency, and intelligent production in the future.

Why Electric Arc Furnace Steelmaking Has Become a Key Direction for Green Steel Manufacturing

Compared with the traditional blast furnace-basic oxygen furnace (BF-BOF) steelmaking route, electric arc furnace steelmaking offers major advantages in resource recycling and low-carbon production.

Since EAF steelmaking primarily uses scrap steel as raw material, it is fundamentally a steel resource recycling process with several significant benefits:

• High scrap recycling utilization

• Lower carbon dioxide emissions

• Cleaner energy structure

• Reduced solid waste and wastewater emissions

• Smaller plant footprint

• Shorter construction cycle

• Greater flexibility in responding to market demand

As global green manufacturing initiatives continue to expand, electric arc furnace steelmaking is becoming one of the most important technological pathways for low-carbon steel production.

Particularly with the rapid development of renewable energy and cleaner electricity generation, the future growth potential of EAF steelmaking will continue to expand.

Future Development Trends of Electric Arc Furnace Steelmaking

The future development of electric arc furnace steelmaking technology will mainly focus on four key directions: higher efficiency, greener production, intelligent manufacturing, and higher product quality.

First, strengthening the melting process while reducing energy consumption will remain a core objective. Intelligent control systems, big data analysis, and digital steelmaking platforms will further improve energy utilization and production efficiency.

Second, demand for cleaner and higher-quality steel products continues to increase. Modern EAFs are no longer limited to ordinary construction steel production but are increasingly used for manufacturing special steels, stainless steels, alloy steels, and advanced engineering materials.

In addition, environmental regulations will continue driving EAF steelmaking toward lower-carbon operations through:

• Increasing scrap utilization ratios

• Expanding the use of green electricity

• Enhancing waste heat recovery systems

• Reducing carbon emissions

• Improving resource recycling efficiency

As the global steel industry undergoes a green transformation, electric arc furnace steelmaking will undoubtedly play an increasingly important role in the future of sustainable steel manufacturing.
