Heating Principle of Metal Silicon Induction Furnace

The metal silicon induction furnace is mainly used for melting metal silicon, using the principle of induction heating. It is inductively heated to 1650-1750 degrees Celsius through a high-purity graphite crucible, and then the graphite crucible is used as a heating body to heat and melt the metal silicon.

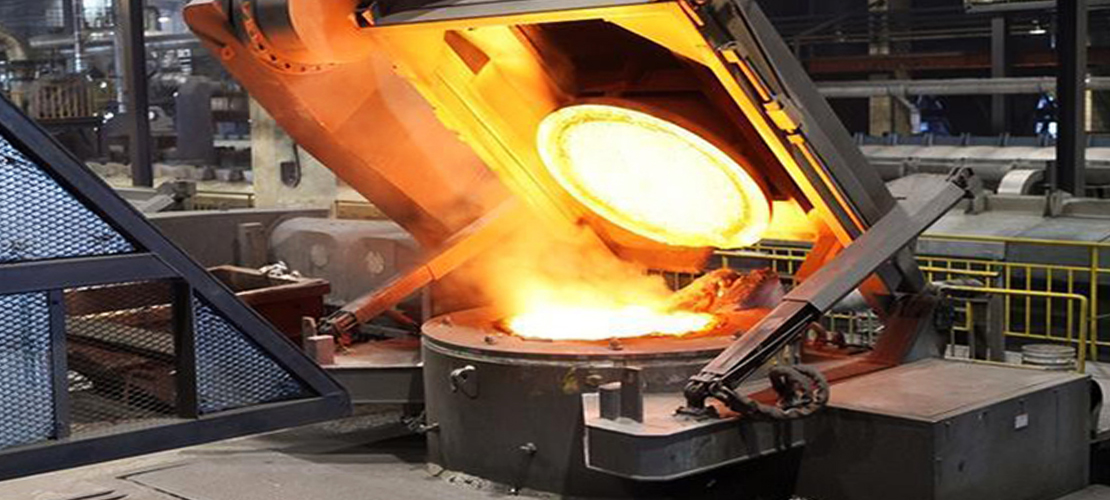

This induction furnaces can be used to smelt various metals, such as scrap metal, iron, steel, copper and aluminum. It consists of a furnace body, a power control cabinet, a capacitor rack and a hydraulic station, etc. It is designed to work continuously for 24 hours and is equipped with self-test and water leakage alarm functions.

Heating Principle of Metal Silicon Induction Furnace

The heating principle of the metal silicon induction melting furnace is to use electromagnetic induction to generate an alternating magnetic field in the induction coil through high-frequency alternating current, thereby inducing eddy currents inside the metal silicon material. The Joule heat generated by the eddy current makes the metal silicon itself heat up, achieving the purpose of melting or heating to melt the metal silicon.

This heating method is characterized by less heat energy loss and a stirring function, which helps the uniformity of the molten pool and the metallurgical reaction of the material. Induction heating enables a fast, efficient and clean heating process.

Specifically, the induction furnaces is mainly composed of the following parts:

1. Power supply: Provides high-frequency alternating current, which is the source of energy for the induction melting furnace.

2. Induction coil: A coil wound into a specific shape, which generates an alternating magnetic field after passing a high-frequency current.

3. Crucible: A container for placing metal silicon materials, usually made of refractory materials.

4. Control system: Responsible for controlling the frequency, current and other parameters of the power supply to achieve precise control of the heating process.

When the alternating current provided by the power supply passes through the induction coil, an alternating magnetic field is generated around the coil. This magnetic field penetrates the metal silicon material in the crucible and induces eddy currents inside it.

Because metal silicon has resistance, eddy currents will generate a lot of Joule heat when flowing inside the material, causing the metal silicon itself to heat up and eventually melt.

Advantages of Induction Heating:

• Fast heating speed: Energy is generated directly inside the metal, and the heating efficiency is high.

• Precise temperature control: The heating temperature can be controlled by adjusting the power supply parameters to meet different process requirements.

• Clean and environmentally friendly: No fuel is used, avoiding smoke and exhaust gas pollution caused by combustion.

• Uniform melting: The magnetic field has a certain stirring effect on metal silicon, making the molten metal composition and temperature more uniform.

• Wide range of application: Metal silicon induction furnace can be used to melt various metals, including non-ferrous metals and alloys.

In short, the metal silicon induction melting furnace uses the principle of electromagnetic induction and the eddy current effect to achieve efficient, precise and clean heating of metal silicon, and has a wide range of applications in industrial production.
