Electric Arc Furnace Short Process Steelmaking

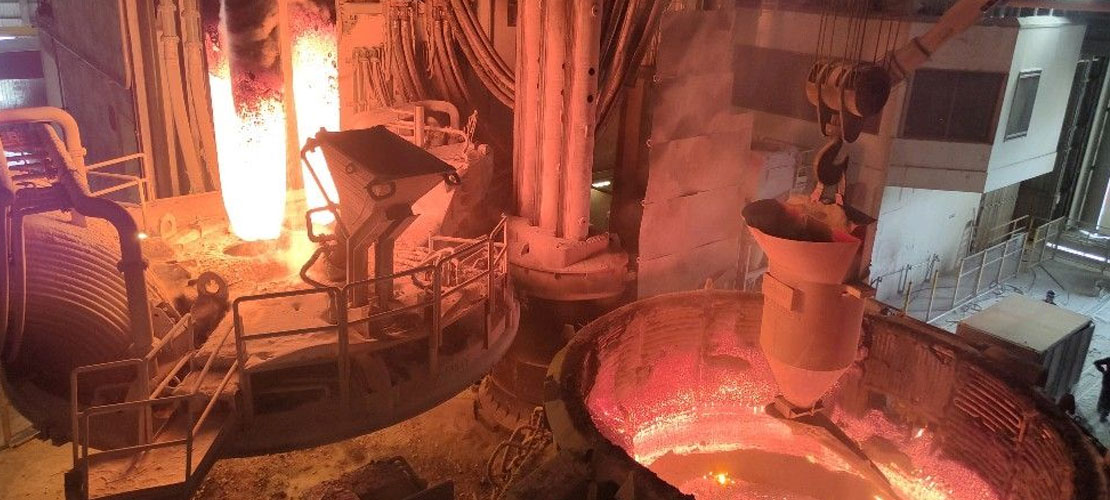

Electric arc furnace (EAF) steelmaking is a method where the heat generated by the electric arc is used to melt raw materials. In this process, graphite electrodes input electrical energy into the electric arc furnace, and the heat produced by the arc between the electrode tip and the furnace charge is used to melt the materials.

Raw Materials and Process Steps of Electric Arc Furnace Steelmaking:

The primary raw material for EAF steelmaking is scrap steel. By recycling old steel, the process not only reduces production costs but also lessens the dependence on natural mineral resources. Besides scrap steel, the EAF process also requires alloying elements, lime, carbon agents, and other auxiliary materials to adjust the composition of the steel and regulate the temperature during the smelting process.

The main steps of the EAF steelmaking process include:

1. Slag Removal and Furnace Filling:
   During the smelting process, slag forms on the surface of the molten steel. This slag needs to be periodically removed to ensure smooth production and avoid contamination of the steel by harmful impurities in the slag. After slag removal, new raw materials are added, typically scrap steel, along with a small amount of alloying elements or auxiliary materials.

2. Charging of Metal Scrap:
   The scrap steel, alloys, lime, and other auxiliary materials are charged into the furnace. The type and composition of scrap steel directly influence the quality of the steel produced. In some cases, the scrap steel may undergo pretreatment, such as cutting or preheating, before being charged into the furnace.

3. Powering the Furnace and Melting:
   After charging the raw materials, electrical power is supplied to the furnace via the graphite electrodes, generating a high-temperature electric arc. The temperature inside the furnace can exceed 3000°C, causing the scrap steel to melt into molten steel rapidly. During the melting process, the electric arc’s heat not only melts the charge but also triggers physical and chemical reactions.

4. Oxidation and Reduction Reactions:
   To remove impurities such as sulfur, phosphorus, and carbon from the molten steel, oxidation and reduction reactions are carried out. For example, lime and other oxidizing agents are added to the furnace, where oxygen reacts with the impurities in the steel, turning them into oxides that can be separated into the slag. Some reduction reactions also occur to remove excess oxides and adjust the chemical composition of the steel.

5. Refining and Steel Tapping:
   After several oxidation and reduction steps, the molten steel reaches the desired chemical composition and purity. The steel is then tapped from the furnace through the tapping hole and transferred for further processing, such as casting or rolling.

The electric arc furnace short process steelmaking method is known for its ability to quickly and cost-effectively recycle scrap steel to produce new steel, and by optimizing process parameters, the quality and composition of the steel can be precisely controlled.

Green Electric Arc Furnace Steelmaking Technologies

With the increasing demand for environmental protection and the growing concerns about energy shortages, green steelmaking technologies for the electric arc furnace have been developed. These technologies aim to reduce energy consumption, lower pollutant emissions, and improve resource recycling efficiency. Green EAF production is not only an inevitable trend in the industry but also an important step towards sustainable development.

The following are key green technologies applied in electric arc furnace steelmaking:

1. Waste Heat Recovery Technology:
   The smelting process in an EAF generates a large amount of high-temperature, dust-laden flue gas, which carries away a significant portion of the total energy input. These gases can reach temperatures as high as 1000°C or more. By recovering the heat from this flue gas, energy consumption can be greatly reduced. Heat recovery systems can use the recovered energy to preheat the charge, heat water, or power other processes. Studies show that the flue gas from the EAF carries away around 11% to 20% of the total input energy. If this heat can be effectively recovered, it can significantly increase energy efficiency and reduce CO₂ emissions.

2. Coke Substitution Technology:
   In traditional EAF steelmaking, coke is used to provide the necessary carbon source for melting the charge, stirring the melt, and generating foamy slag. However, coke production depends on fossil fuels and generates a large amount of CO₂ during its production. To achieve greener steel production, current technological developments focus on reducing the use of coke by finding alternative materials. For example, electric energy can be used to directly heat the charge, or renewable resources such as biomass or reducing agents can replace coke, thus reducing the dependence on non-renewable resources and cutting carbon emissions.

3. Scrap Preheating Technology:
   Preheating scrap steel before charging it into the furnace is another important energy-saving technology in green EAF steelmaking. By preheating scrap steel to a certain temperature, energy consumption during the smelting process can be significantly reduced. Preheated scrap steel melts more quickly when charged into the furnace, shortening the overall refining time and reducing the external electrical energy demand. Scrap preheating is often achieved through waste heat recovery systems, which not only reduce flue gas emissions but also make use of the heat generated during the smelting process. This results in higher energy efficiency.

4. Slag Treatment and Recycling Technology:
   The slag generated during the EAF smelting process contains valuable metals and other substances. Therefore, proper treatment and recycling of slag are essential to reducing resource waste and improving environmental performance. Modern green EAF technologies focus on recycling valuable metals from the slag and returning them to the production cycle. Additionally, some slags can be used as raw materials in construction, further promoting resource recycling.




Conclusion

The electric arc furnace short process steelmaking method, with its low energy consumption, high resource utilization, and reduced raw material requirements, has become a key technology in modern steel production. As green technologies continue to evolve, electric arc furnaces will not only improve production efficiency but also significantly reduce their environmental impact. Technologies such as waste heat recovery, coke substitution, and scrap preheating optimize the production process, enhance energy efficiency, and help the steel industry transition towards a low-carbon, sustainable future. As these technologies advance, electric arc furnace steelmaking will continue to be a cornerstone of green manufacturing.
