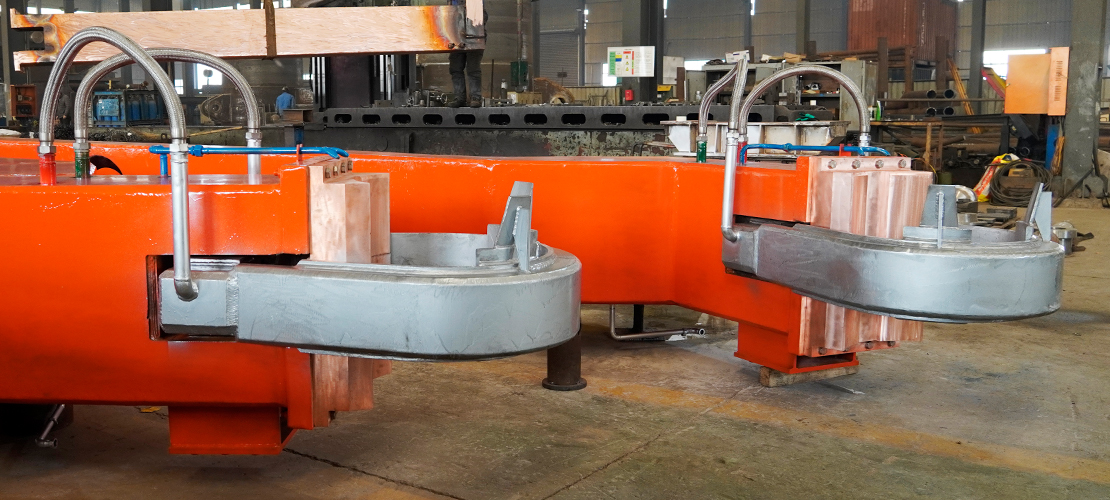

Electric Arc Furnace Electrode Holders the Features and Functions

The electric arc furnace electrode holders is a key conductive component, primarily responsible for electrode fixation and current conduction. Its core structure includes the clamping heads, conductive plates, a cooling system, and connecting devices. Copper-iron composite materials are commonly used to balance conductivity with mechanical strength and electrical performance.

A typical design includes an arc-shaped mounting groove for fixing the conductive plate, a water-circulating heat dissipation module, and a flexible anti-loosening component. Some improvements use an air jet system to remove oxides from the contact surface or employ hydraulic transmission to achieve stable clamping. Commonly used materials are T2 copper and chromium-zirconium copper, widely applied in high-temperature industrial environments such as electric arc steelmaking furnaces and electric calcining furnaces.

Structure of the Electrode Holders

• The electrode holder consists of a main frame made up of symmetrically distributed semi-circular clamping heads, with an arc-shaped mounting groove in the inner ring for fixing the replaceable conductive plate.

• The holder achieves mechanical fixation via bolted connecting plates and elastic pads. Some models are equipped with a lever-cylinder transmission system to replace the traditional bolt structure, improving clamping stability.

• The main body integrates a spiral or U-shaped cooling water chamber, which is connected in series with flexible hoses to form a circulating heat dissipation channel. The outlet temperature is monitored in real time by an ALJ5A3-1-Z/N2 sensor.

The Role of the Electric Arc Furnace Electrode Holders

The EAF electrode chuck is one of the core components of a steelmaking electric arc furnaces, and its performance directly affects smelting efficiency, energy consumption, and safety. Its main function is to firmly, stably, and with good conductivity hold the graphite electrode and transmit a huge current (up to tens of thousands of amperes) from the short wire (secondary side conductor) to the electrode to generate a high-temperature electric arc to melt the scrap steel. Specifically:

1. Mechanical Clamping and Stabilization:

During the smelting process, the electrode needs to be frequently raised and lowered, and the arc length needs to be adjusted. The electrode holder must provide sufficient clamping force to prevent the electrode from slipping under vibration or impact, ensuring accurate electrode positioning.

2. High-Efficiency Power Transmission:

As the "last link" in current transmission, it must have extremely low contact resistance to reduce power loss (manifested as heat generation) and improve electrical efficiency.

3. Safety Assurance:

In abnormal situations (such as electrode breakage), reliable clamping can prevent accidents. Simultaneously, its design and materials must withstand high-temperature radiation and splashes.

4. Adaptability to Thermal Expansion:

The electrode holder themselves will expand due to heat during operation. Their design must allow for a certain thermal displacement to avoid excessive mechanical stress.

Features of Electric Arc Furnace Electrode Chuck

1. High Strength & Heat Resistance:

Typically made of high-strength copper alloys (such as chromium-zirconium copper, copper-silver alloys). Copper ensures excellent electrical conductivity, while added elements such as chromium and zirconium improve recrystallization temperature, high-temperature strength, and wear resistance, enabling long-term operation in the high-temperature zone of the furnace mouth (radiation temperature can reach over 1000°C). [1]

2. Highly Efficient Internal Water-Cooling Structure:

This is one of its most critical features. The electric arc furnace electrode holders has a complex internal water-cooling channel design (usually drilled or cast water channels). Through forced circulation of cooling water, a large amount of heat generated by resistance heating and radiation within the electric furnace is removed, preventing material softening and failure, and reducing oxidation.

3. Optimized Clamping Mechanism:

• Spring-Hydraulic Composite: This structure is commonly used in modern large electric furnaces. The spring provides initial and constant clamping force (safety redundancy, no loss of force in the event of power failure), while the hydraulic cylinder provides greater release force and adjustable clamping force control. This is safer and more reliable than purely pneumatic or hydraulic clamping.

• Uniform Clamping: The design ensures uniform clamping force distribution on the circular electrode, avoiding electrode damage caused by localized stress. [2]

4. Low Resistance & Low Energy Consumption Design:

• Large Contact Area: The inner surface of the clamping surface (copper tile) in contact with the electrode is typically machined into an arc surface matching the electrode curvature to increase the conductive contact area.

• Surface Treatment: The contact surface may be silver-plated or coated with a special coating to further reduce contact resistance. [3]

5. Modular & Long-Life Design:

The vulnerable contact parts (copper tile) and the main structure are designed as quickly replaceable modules, reducing maintenance downtime. Through high-quality materials and water cooling, its service life can reach thousands of furnace cycles.

Industrial Application Cases

In the application of a 3-ton electric arc furnace steelmaking, the traditional wedge-type electrode chuck mechanism resulted in an electrode breakage rate as high as 12% due to stress concentration. After improvement to a hydraulic clamping structure, this rate dropped to below 1.5%. A brown corundum calcining furnace project adopted a copper-iron combined clamping device (patent number CN2024), extending the electrode lifespan per furnace from 90 heats to 220 heats.

In summary, the electric arc furnace electrode holders device is a key piece of equipment integrating high-strength structure, efficient water cooling, high current transmission, and precision mechanical clamping. Its development has always revolved around the core goal of "more reliable clamping, more efficient conductivity, and more durable operation," and it is an important guarantee for modern electric arc furnaces to achieve efficient, energy-saving, and automated steelmaking.

Source:

[1] Material selection is commonly found in professional papers and manufacturer materials. For example, engineering and technical articles such as "Design and Improvement of Electrode Clamping Devices for Large Electric Arc Furnaces" will analyze the advantages of copper alloy materials in detail.

[2] Patent documents and technology improvement reports, such as "Design of a Novel Hydraulic System for Electric Arc Furnace Electrode Holder," etc.

[3] Industry standard "Energy-Saving Technology for Electric Arc Furnace Steelmaking"
