Jul. 04, 2025

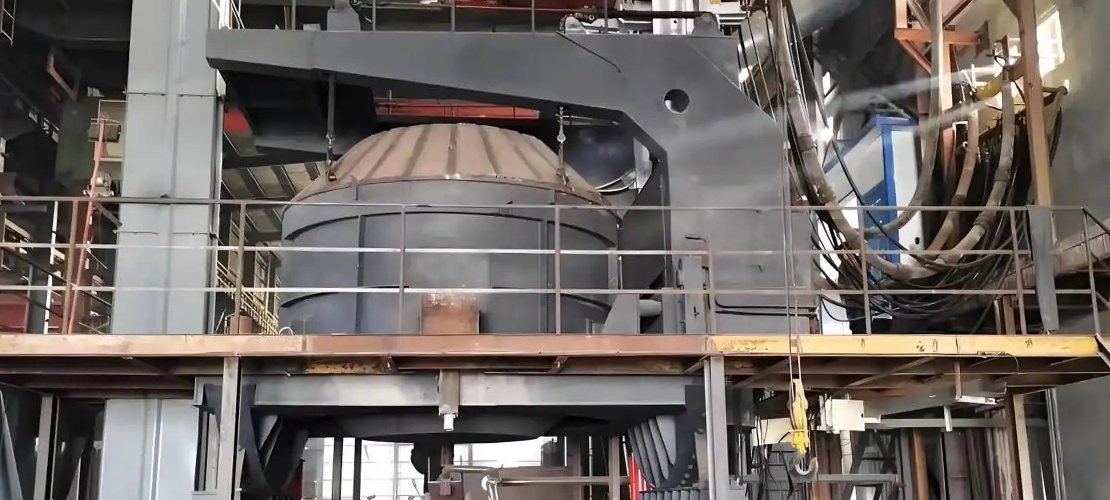

Good news! The 1500kW DC Furnace steelmaking system independently developed by Sanrui Electric Furnace has been signed and is currently being put into production and operation in an orderly manner.
A DC electric furnaces refers to an EAF that uses direct current as energy. Like an AC electric arc furnaces, it uses the arc generated between the electrode and the charge (or molten pool) to generate heat to achieve the purpose of smelting. As a representative work of new green smelting equipment, this EAF steelmaking furnace will bring innovative solutions to the metal smelting industry with its excellent technical performance and innovative design.
DC EAF Compared with traditional AC electric arc furnace, Sanrui Electric Furnace's 1500kW DC electric arc furnace system has three core advantages
1. Efficient energy conversion:
Using patented rectification technology to achieve highly concentrated and stable arc, molten pool stirring efficiency increased by 40%, and furnace lining erosion reduced by 30%
2. Grid-friendly design:
Original composite DC reactor system, current fluctuation rate ≤1.5%, cable life extended to 1.8 times that of peers
3. Intelligent electrode control:
Dual servo electrode adjustment system with adaptive algorithm, ton of steel electrode consumption is 50% lower than traditional equipment
This DC electric furnaces is compatible with the efficient smelting of the following metal materials:
Special steel: bearing steel, mold steel, stainless steel, high manganese steel and other industrial steels
Non-ferrous alloys: copper alloys (brass/bronze), nickel-based alloys, zinc-aluminum alloys, etc.
Precious metal smelting: refining and purification of gold/silver/platinum group metals
Circular economy: blast furnace slag regeneration, scrap metal recycling
Customized scenarios: special smelting of titanium alloys, magnetic materials, superconducting materials, etc.
No. | Name | Quantity | Weight |
1 | Mechanical Equipment - DC Electric Arc Furnace | ||
1.1 | Furnace body | 1 set | |
Each set includes: one furnace shell, one furnace door mechanism, and one liquid discharge tank | |||
1.2 | Low cigarette hood | 1 set | |
Each set includes: one short eye mask and three furnace doors | |||
1.3 | Electrode lifting device | 1 set | |
Each set includes: 1 column, 1 set of lifting column, 1 set of electrode clamping mechanism, 1 set of electrode lifting cylinder, 1 set of insulation parts, 1 set of conductive cross arm and 1 set of electrode chuck | |||
1.4 | Furnace pouring mechanism | 1 set | |
Each set includes: a set of arc frames, 2 tilt furnace cylinders, a set of manual locking devices, and two sets of tracks | |||
1.5 | Short network | 1 set | |
Each set includes: 1 set of secondary outlet soft compensator, 1 set of copper bar, 1 set of Roche coil, 2 copper female cables, 1 set of brackets, and a set of insulating parts for connecting fasteners | 2 copper mother cables 4500 square meters | ||
1.6 | Bottom electrode | ||
Each set contains 2 dry-type air-cooled cables, 1 set of bottom electrode devices, 1 set of electrode paste | Copper mother cable 4500 square meters | ||
1.7 | Cooling water system and compressed air system | ||
Each set includes: 1 set of cooling tower, 1 piece of water inlet distributor, 1 set of valve, meter, 1 return tank, 1 set of soft and hard pipes in and out of water | Note: From the water inlet contact point to the water return contact point provided by the user. | ||
1.8 | Hydraulic system | ||
Each set includes: one set of pump station A set of valve tables for electric stoves A set of soft and hard tubes | |||
2 | Electrical Equipment | ||
2.1 | High voltage cabinet | 1 set | 6kv (2 cabinets) |
2.2 | Electric furnace transformer 1500kva/6kv | 1 unit | |
2.3 | Low voltage power supply system | 1 set | |
2.4 | Automatic electrode lifting and adjustment system | 1 set | |
2.5 | DC power cabinet 1500kw | 1 set | |
2.6 | Installation materials | 1 set | |
2.7 | Dust removal system (optional) | 1 set | 26W |
Whether it is a 1500KW DC furnace or other metal smelting equipment, Sanrui Electric Furnace provides full-process services from equipment selection, process design to installation and commissioning, and supports customization of 30-3000kW full range of steelmaking electric arc furnace solutions according to customer needs.
It has been successfully applied to automobile parts manufacturing, rail transit parts production, non-ferrous metal deep processing and other fields, helping customers achieve:
✓ Reduce electricity consumption per ton of steel by 15%-20%
✓ Reduce electrode consumption cost by 40%+
✓ Extend the service life of the furnace lining by 50%
✓ Increase metal recovery rate to 98%+
If you have any needs and questions about the electric furnaces, please contact us immediately to get exclusive technical solutions!
