Jun. 03, 2025

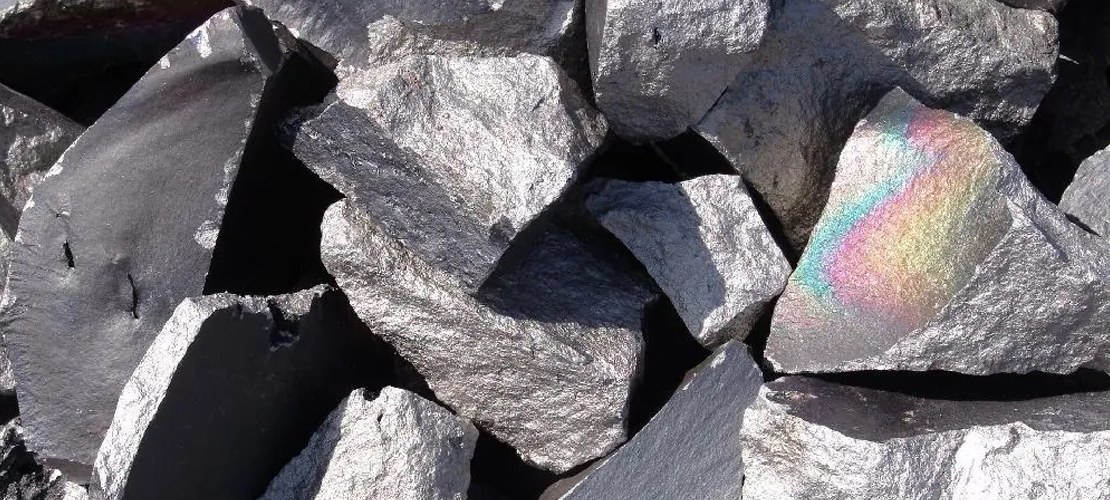

Silicon manganese alloy is an alloy composed of manganese, silicon, iron, a small amount of carbon and other elements. It is a ferroalloy with a wide range of uses and a large output. Its consumption ranks second among ferroalloy products of electric furnace and submerged arc furnace.
The manganese and silicon in manganese silicon alloy have a strong affinity with .oxygen. When manganese silicon alloy is used in steelmaking, the melting points of the deoxidation products MnSiO3 and Mn2SiO4 produced are 1270℃ and 1327℃ respectively. They have the advantages of low melting point, large particles, easy floating and good deoxidation effect.
Under the same conditions, the burnout rates of manganese or silicon alone for deoxidation are 46% and 37% respectively, while the burnout rates of manganese silicon alloy for deoxidation are both 29%.
Silicon manganese alloys are produced by using carbon to simultaneously reduce manganese oxide and silicon dioxide in manganese ore (including manganese-rich slag) and silica in a submerged arc furnaces.
Raw materials: manganese ore, manganese-rich slag, coke, silica, lime, etc.
Silicon manganese alloy is a ferroalloy widely used in smelting in submerged arc furnace, mainly used in steel production. It can effectively deoxidize and alloy steel, improving the quality and performance of steel. Specifically, the role of silicon manganese includes:
Manganese and silicon combine with oxygen in molten steel to form manganese silicate (MnSiO3, MnSiO4) with a low melting point. These manganese silicates are easy to float, thereby reducing the oxygen content in the steel and improving the purity of the steel.
Manganese and silicon can change the composition and organization of steel, thereby improving the strength, hardness, toughness, wear resistance, corrosion resistance and other properties of steel.
For example, manganese can reduce the brittleness of steel and improve hot working properties, while silicon can improve the elastic modulus and corrosion resistance of steel.
Silicon manganese can reduce oxide inclusions in steel, improve the organizational structure of steel, and make it have better mechanical properties.
Semi-finished products for smelting medium and low carbon ferromanganese and metallic manganese:
Silicon manganese alloy is also a semi-finished product for producing medium and low carbon ferromanganese and electrosilicon thermal method metallic manganese.
Silicon manganese is also used in the production of cast iron and cast steel, which can improve the overall performance of castings, improve wear resistance, corrosion resistance and thermal expansion coefficient.
In short, silicon manganese alloy plays an important role in submerged arc furnace steel smelting. It can effectively remove impurities in steel, improve the strength, hardness and toughness of steel, and make steel more suitable for various application fields, such as structural steel, tool steel, stainless steel, etc.
