Jul. 07, 2025

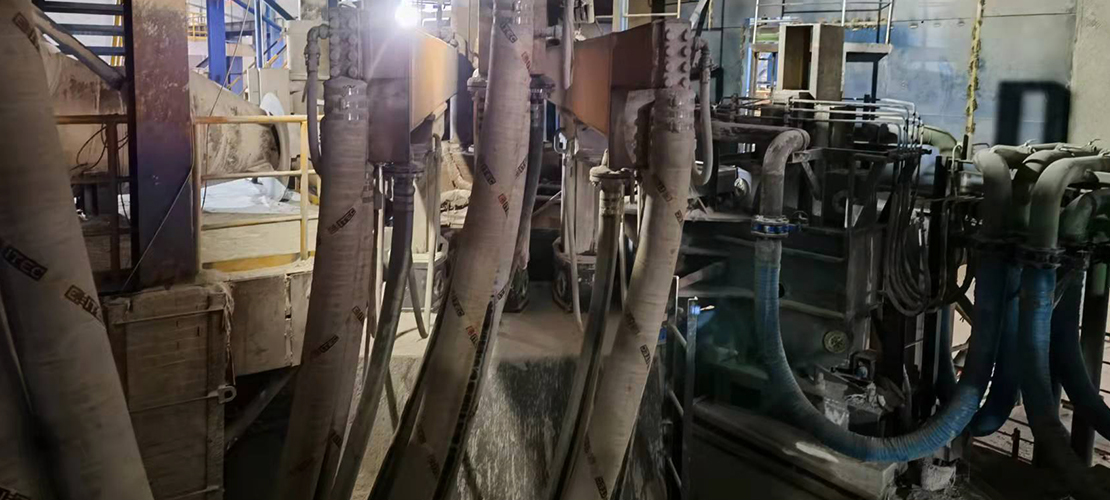

Water cooled cable is a special cable designed for high-current heating equipment used in submerged arc furnaces. The surface of the cable is usually tinned, and the position of the water inlet and outlet can be determined according to the equipment installation. The outer sheath rubber tube is treated with high-temperature fireproofing to adapt to the high-temperature environment of the submerged arc furnace.
Its core feature is the hollow structure, which allows water circulation cooling. The main material is T2 copper, and the electrode structure can be customized. This design can effectively solve the problem of electrode heating, improve the service life of the cable, and reduce the cost of use.
Water-cooled cables are usually composed of electrodes, conductors and outer sheath tubes, and are often used for medium-frequency and industrial-frequency high-current transmission. Compared with traditional cables, submerged arc furnace water-cooled cable have advantages in processability, weight and material use.
High conductivity:
Using highly conductive copper as the cable core material can effectively reduce resistance and energy loss.
High heat dissipation:
The hollow design and water cooling can quickly take away the heat generated by the cable, prevent overheating, and extend service life.
High insulation:
High temperature resistant and corrosion resistant insulation materials are used to ensure the safe operation of the cable under high temperature and high pressure environment.
Solid structure:
Made by special process, compact structure, high tensile strength, able to withstand mechanical vibration and impact generated during the operation of the submerged arc furnace.
Easy maintenance:
Submerged arc furnace water-cooled cable: Reasonable structural design, convenient installation and maintenance, reducing maintenance costs.
Transmit large current:
Submerged arc furnaces need to transmit large currents to provide the energy required for smelting, and water cooled cable can safely and reliably transmit large currents.
Reducing cable temperature:
SAF generate a lot of heat during operation, and water-cooled cables can effectively reduce cable temperature, prevent overheating damage, and ensure safe operation of equipment.
Extending service life:
By reducing cable temperature, cable aging and damage are reduced, the service life of submerged arc furnace water-cooled cable is extended, and operating costs are reduced.
Improving safety:
Effectively reduces safety hazards such as overheating and short circuit of electric furnace cables, and improves the safety of submerged arc furnace.
Improve efficiency:
Effectively reduce energy loss and improve smelting efficiency
Xi'an Sanrui Electric Furnace produces this water cooled cable. It has the characteristics of high conductivity, high heat dissipation and high insulation. It can withstand high current and high temperature, and effectively reduce the cable temperature to ensure the safe and stable operation of the submerged arc furnaces.
