Sep. 13, 2025
Ladle furnace graphite electrode is crucial in the steelmaking process, primarily used for arc heating, melting molten steel, and refining. Made from high-purity graphite, they offer excellent electrical conductivity, high-temperature resistance, and corrosion resistance.
The quality of graphite electrodes directly impacts ladle furnace production efficiency and steel quality. Selecting the appropriate graphite electrode specifications and models, along with proper operation and maintenance, is crucial for extending electrode life, reducing production costs, and improving product quality.

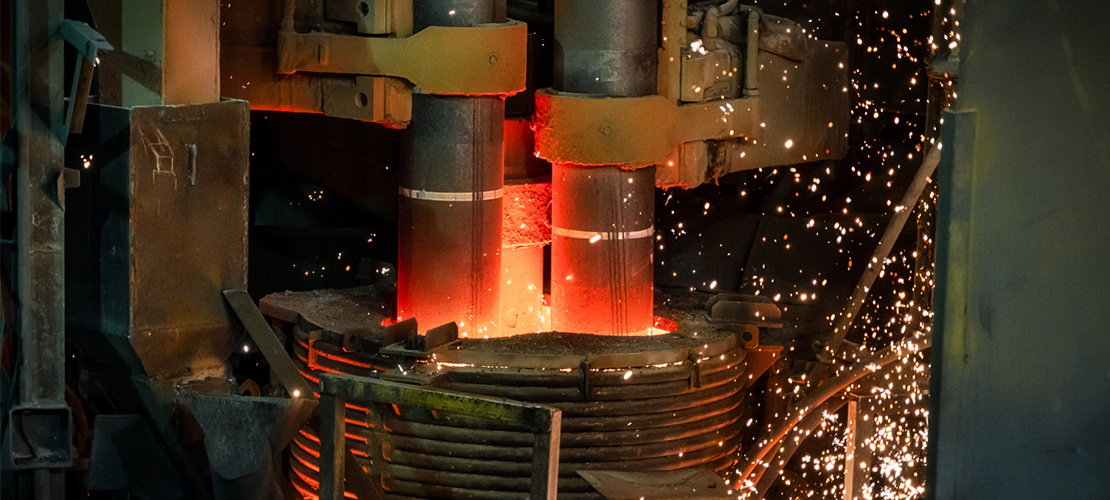

The graphite electrodes in the Ladle furnace are cylindrical graphite rods used for molten steel refining. They generate an arc through electrical conduction, maintaining the ultra-high temperatures required for steel refining. They are a crucial component of the ladle refining furnaces and feature high-temperature resistance, corrosion resistance, and high mechanical strength. They can withstand multiple refining cycles, ensuring a long service life and are crucial for controlling furnace temperature.
Graphite electrodes generate a powerful arc within the ladle refining furnaces. The heat released is used to melt the molten steel and raise the furnace temperature without the need for remelting the steel.
As conductors, graphite electrodes conduct current into the LF furnace, providing energy for arc generation and playing an indispensable role in the smelting process.
The performance of graphite electrodes and the ability to control furnace temperature are key to producing high-quality steel.
Graphite inherently possesses extremely high temperature resistance, remaining stable under the extremely high temperatures of electric arc furnaces and resistant to melting or deformation.
Graphite is an excellent conductor, effectively conducting high-intensity currents and ensuring arc formation and stability.
Graphite electrodes possess high mechanical strength, capable of withstanding the significant mechanical and thermal stresses within the furnace.
Mainly used in steelmaking and non-ferrous metal smelting in electric arc furnaces (EAFs), melting scrap steel or raw materials by generating an electric arc.
Used in the refining process of ladle refining furnaces, providing the heat required for molten steel refining.
Based on their power capacity, graphite electrodes are classified into different grades, such as regular power (RP), high power (HP), and ultra-high power (UHP), to meet the needs of different smelting furnaces.
UHP graphite electrodes are suitable for high-power electric arc furnaces and high-load ladle furnaces. They are produced from high-quality needle coke.
This describes the functions and characteristics of ladle furnace graphite electrode. If you have any questions or needs regarding melting furnaces such as LF furnaces, refining furnaces, electric arc furnaces, submerged arc furnaces, and induction furnaces, please feel free to contact us.
