Sep. 09, 2025

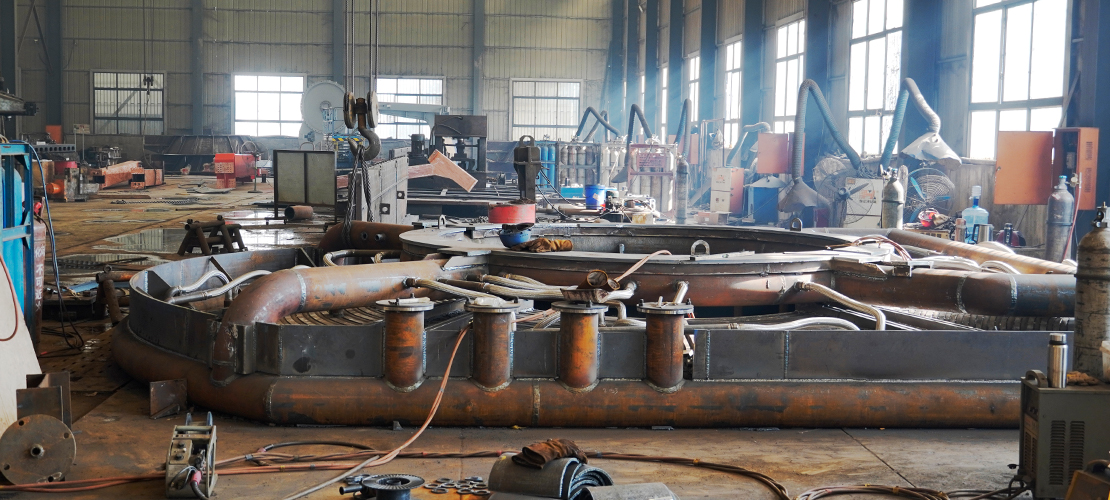

The water-cooled cover of an electric arc furnace is a crucial component of the EAF. It utilizes water cooling technology to protect the roof from damage caused by high temperatures.
The design of the water-cooled roof effectively reduces roof temperatures, thereby extending its service life and reducing maintenance costs. Due to the extremely high temperatures inside the electric arc furnaces,water cooling technology is crucial for the stable operation of the steelmaking electric furnace.
Different roof designs can affect EAF efficiency and smelting quality. For example, the roof shape and the layout of the water cooling channels can affect heat transfer and gas flow.
Cooling Efficiency and Furnace Temperature Control: The roof removes a significant amount of heat through the water cooling channels, reducing the roof surface temperature and preventing local overheating. A stable roof temperature helps maintain a consistent gap between the roof and the casting, minimizing thermal deformation that interferes with the reaction zone.
Impact of Heat Loss on Efficiency: Excessively high furnace roof temperatures increase thermal radiation and convection losses, reducing power utilization per unit time. A reasonable cooling design can minimize unnecessary heat loss while ensuring safety, thereby increasing smelting output per unit power.
Effect of temperature on arc behavior: If the temperature in the furnace cover area is uneven or too high, it may cause changes in gas volume and local density differences, which in turn affect the stability of the plasma column and the distribution of the arc column.
Gap and Discharge Efficiency: Thermal expansion of the furnace roof, which causes changes in furnace chamber geometry, can alter the discharge gap distribution, affecting arc stability and average voltage drop, ultimately impacting melting efficiency and energy consumption.
Influence of the Furnace Roof on Furnace Chamber Airflow: Different water cooling channel layouts affect the gas flow pattern beneath the furnace roof and the distribution of the smelting atmosphere (e.g., oxygen content, reducing properties, etc.) within the furnace. Appropriate design can improve gas renewal rates, enhance smelting efficiency, and improve the uniformity of the steel/alloy.
Management of Molten Pool Coverage and Steam/Radiant Heat: A properly designed cooling system can reduce the amount of heat returned to the furnace by radiation, minimizing disturbances to the furnace's melt pool temperature field. This stabilizes the alloy composition distribution and improves the consistency of finished product quality.
Cooling Water Flow and Pump Power: The cooling system requires a certain amount of energy to circulate water. Excessively high water flow rates increase energy consumption, while excessively low flow rates can lead to elevated furnace roof temperatures, safety risks, and increased maintenance costs. Optimized cooling parameters ensure the safety of the furnace roof while minimizing energy consumption per unit of smelting output.
Heat Recovery Potential: Some system designs can reuse heat removed from the furnace lid for secondary preheating or other process steps, improving overall energy efficiency.
Temperature Control and Material Fatigue: Stable and uniform cooling helps reduce the risk of thermal fatigue, cracking, and deformation, thereby extending furnace roof life, reducing replacement frequency, and improving overall efficiency (increasing equipment availability).
Corrosion and Water Quality Management: Poor water quality management in water-cooling systems can easily lead to corrosion and scaling, resulting in reduced cooling efficiency and indirectly impacting furnace efficiency and operating costs.
The EAF water-cooled furnace cover comprehensively determines the efficiency and stability of the steelmaking electric furnace through effective thermal management, indirect impact on arc column stability, control of furnace chamber airflow and heat radiation, and impact on system energy consumption and maintenance costs.
Whether it's electric arc furnaces water-cooled furnace cover or furnace accessories,and any other melting furnace, if you have specific furnace types, production capacity targets, or design requirements, Sanrui Electric Furnace can provide you with professional solutions and quotes.
