Nov. 14, 2025
5-ton Electric Arc Furnace vs Induction Furnace: The main differences lie in their heating methods and applicable scenarios.
An EAF melting furnaces indirectly melts materials by generating high temperatures through an electric arc, making it more suitable for processing scrap steel and possessing strong metallurgical reactivity.
An IF furnaces, on the other hand, utilizes electromagnetic induction to directly generate heat within the material, offering higher efficiency and precision when melting known, clean materials.
In general, induction furnaces outperform electric arc furnaces in thermal efficiency, element loss rate, and molten steel condition, but their metallurgical reactivity is slightly inferior.
The choice of smelting furnace depends on specific production needs, such as the emphasis on material cleanliness, metallurgical reactivity, and environmental requirements.
To understand the practical differences, you must first understand how each type of furnace generates heat. Their mechanisms are fundamentally opposite: one is external, the other internal.

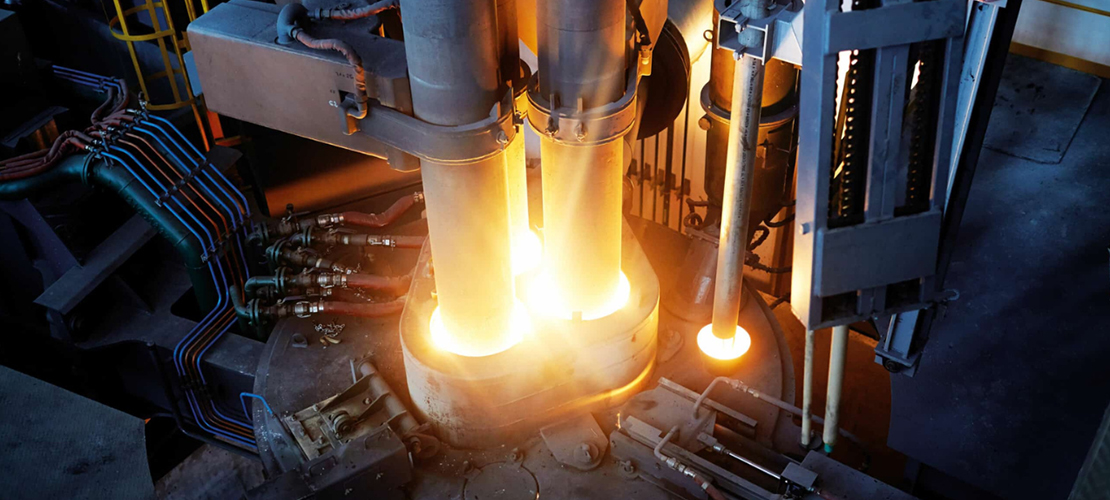

Steelmaking electric arc furnaces use an external heat source to melt metal.
Large graphite electrodes are placed in the furnace, and a huge current passes through them, generating an electric arc that jumps towards the metal charge.
This electric arc can reach temperatures of several thousand degrees Celsius, melting metal by transferring heat through a layer of slag. This process is a form of indirect heating.
Induction furnaces work similarly to microwave ovens, but are suitable for conductive metals. They utilize internal heat generation.
Alternating current passes through a copper coil, generating a strong, fluctuating magnetic field. When conductive materials such as steel are placed in this magnetic field, the field induces currents (eddy currents) directly within the metal. The metal's own resistance causes it to heat up rapidly and melt from the inside out. This is direct heating.
5 ton electric arc furnace mainly used for steelmaking, especially when using scrap steel as raw material. The advantages of electric arc furnaces are high process flexibility, effective removal of impurities, and easy temperature control.
The Induction furnace can also generally be used for metal smelting. Both electric arc furnaces and induction furnaces have wide applications in the metallurgical industry; their choice depends on specific smelting needs and requirements for metal composition.
Your final decision should be guided by your specific operational goals, considering factors from the type of metal being produced to environmental and efficiency objectives: For large-scale steel production from scrap requiring dephosphorization: Electric arc furnaces are a proven and powerful choice for high-volume refining.
For producing high-purity specialty alloys with precise chemical compositions: Induction furnaces offer superior control, cleanliness, and uniformity.
For maximizing energy efficiency and minimizing environmental impact: Induction furnaces offer significant advantages due to their direct heating method and the absence of polluting electrodes.
This concludes the introduction to the electric arc furnace VS induction furnace. A comprehensive analysis is essential when selecting a smelting furnace to leverage its strengths and mitigate its weaknesses, choosing the smelting equipment that best meets your production needs.
