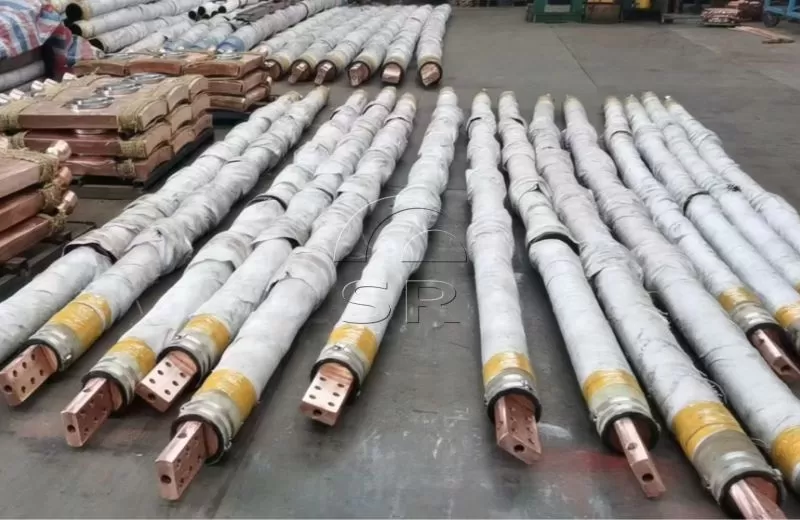

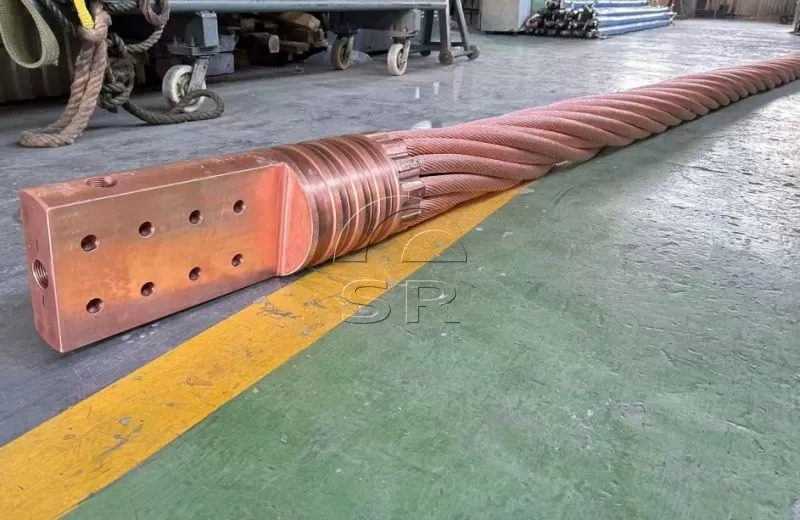

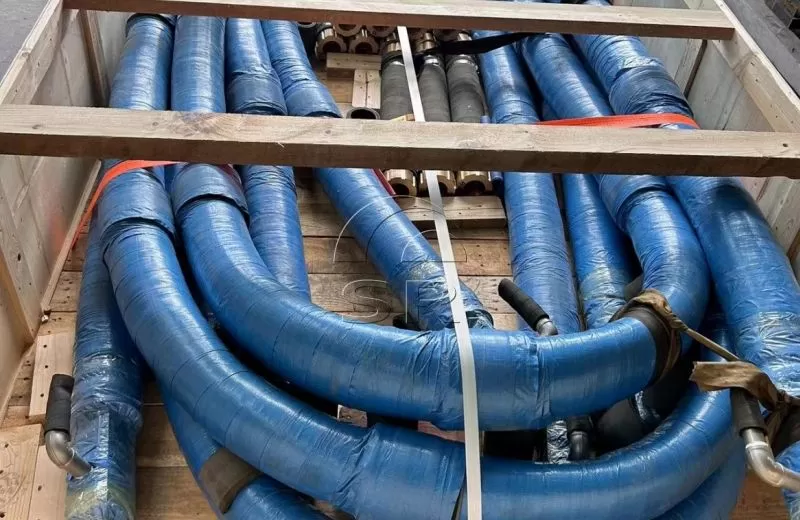

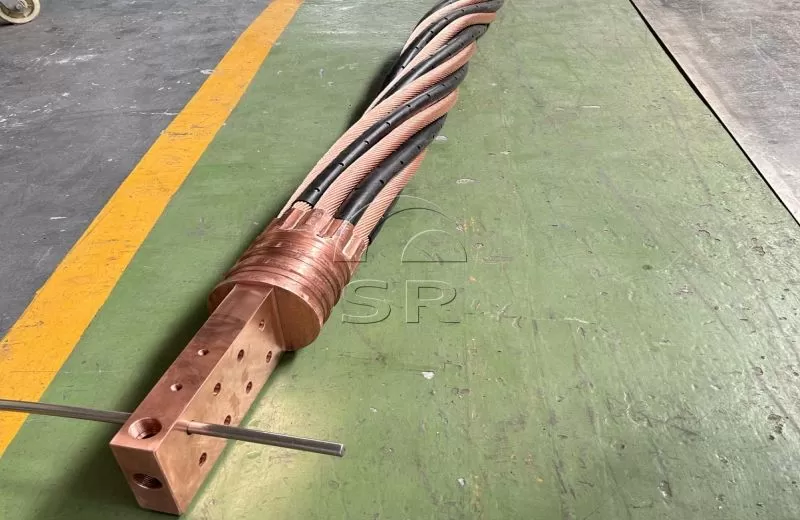

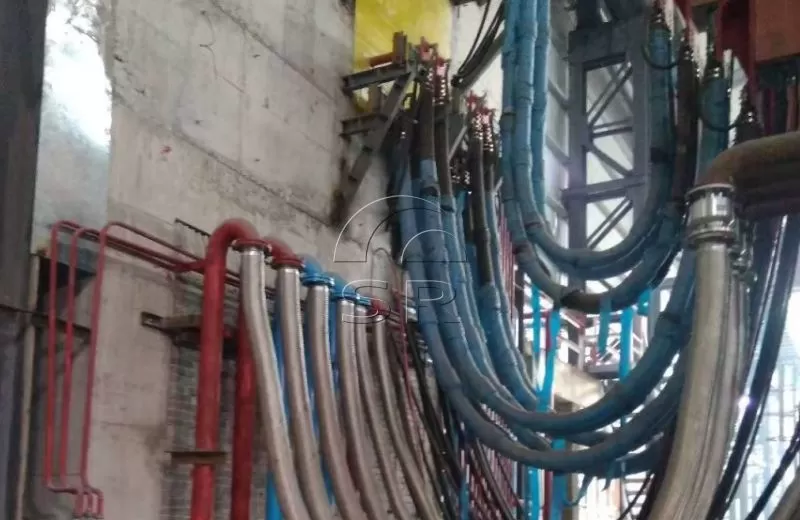

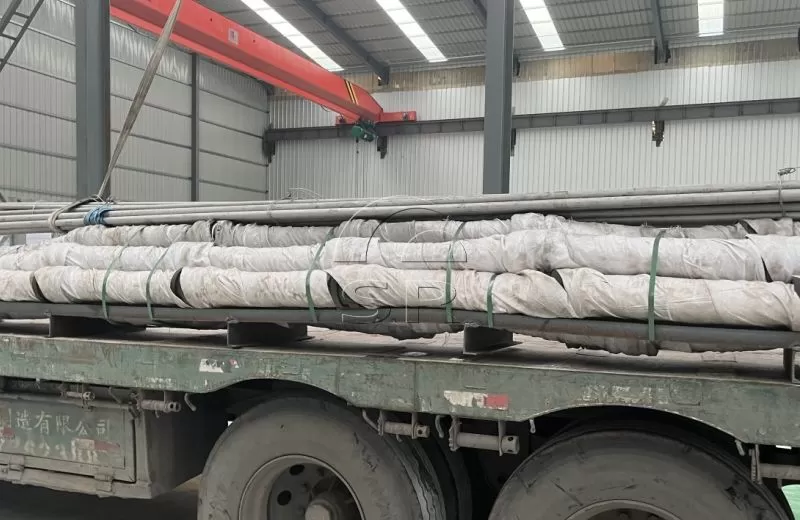

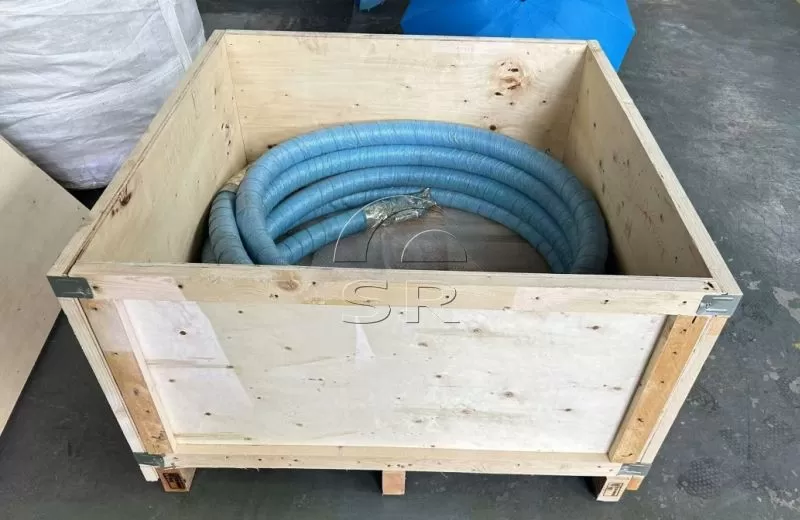

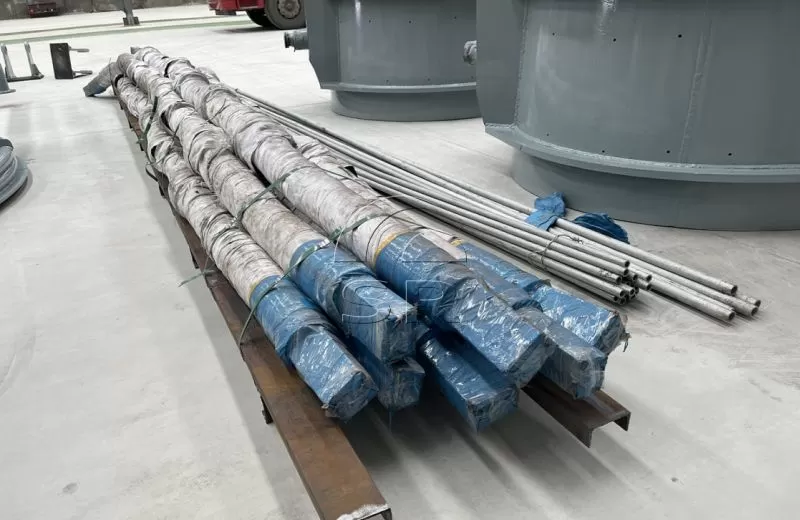

Introduction of Water Cooling Cable
Water Cooling Cable For Ladle Refining Furnace is a water-cooling system used in molten steel refining equipment, mainly used for conducting current and cooling. Its usually made of copper-steel composite materials to provide good conductivity and heat resistance to ensure temperature control during the refining process.
Introduction of Water Cooling Cable
Water Cooling Cable For Ladle Refining Furnace is a water-cooling system used in molten steel refining equipment, mainly used for conducting current and cooling. Its usually made of copper-steel composite materials to provide good conductivity and heat resistance to ensure temperature control during the refining process.
Water cooling cable is a cable designed for the high temperature and high pressure environment of smelting furnaces, and is widely used in metallurgy, casting and other heavy industries. The main function of this cable is to transmit power in high-temperature furnaces while keeping the cable safe and stable.
Purpose of Water-cooled Cables For Refining Furnaces
Water cooling cable for ladle refining furnace used in the steel smelting process can not only meet the electrical conductivity requirements, but also effectively dissipate heat through water cooling, thereby extending the service life of the cable.
As an important component of the short-circuit network system, this cable can operate stably under high temperature and high pressure environments.
Advantages of Water Cooled High Current Cables
Improve safety
The water-cooling technology of the water-cooled cable of the refining furnace effectively reduces the risk of cable overheating, thereby improving overall safety.
Extend service life
Good temperature control and insulation performance can significantly extend the service life of the cable.
High efficiency conduction
The water cooled cable manufacturer Sanrui has optimized the cable design to reduce power loss and energy consumption.
Reduce maintenance costs
The Water cooled high current cables has a long service life and a low failure rate, which reduces the frequency of maintenance and replacement.
Water Cooling Cable For Ladle Refining Furnace Some Parameters
| Temperature Range | Generally can be used in environments ranging from -40°C to +300°C |
| Rated Voltage | Usually ranges from 1kV to 3kV, depending on the specific application |
| Conductor Material | Commonly used copper conductors, some models may use aluminum conductors |
| Insulation & Sheath Material | Mostly use high heat-resistant materials such as polyvinyl chloride (PVC) and cross-linked polyethylene (XLPE) |
| Cooling Water Flow | Set according to current load and cable length, usually to suit the equipment requirements |
Water cooling cable play an important role in power transmission under high temperature conditions such as metallurgical electric furnaces due to their unique design and superior performance.
Features of Water Cooling Cable For Ladle Refining Furnace
High temperature resistance
Water-cooled cables produced and supplied by water cooled cable manufacturer - Sanrui usually have high heat resistance and can withstand temperatures up to 300°C.
Cooling system
By circulating cooling water through the outside of the cable, the temperature of the cable is kept within a safe range to prevent overheating.
Sturdy structure
Water cooled high current cables have good mechanical strength, wear resistance and impact resistance to adapt to harsh environments.
Superior insulation performance
LRF Water cooling cables use high-quality insulation materials to ensure safety when used under high voltage.
