Ladle Plunger Mechanism

Ladle plunger mechanism is a key component used for ladle (container with liquid molten steel) in metallurgical industry. Its main function is to realize effective control and transfer of liquid molten steel in the ladle through hydraulic or mechanical drive.

Share:
Ladle Plunger Mechanism Introduction

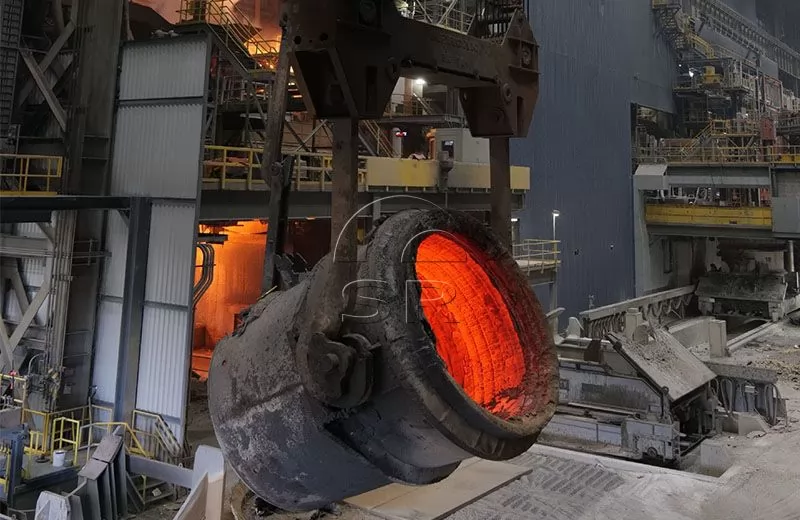

Ladle Plunger Mechanism Introduction

The working principle of the ladle plunger mechanism is relatively simple. When it is necessary to control the molten steel in the ladle, the drive system will start to drive the plunger up and down in the cylinder or reciprocate.


By adjusting the position of the plunger, the size of the tapping hole of the ladle can be controlled, so as to control the flow and speed of molten steel.


Ladle plunger mechanism is widely used in metallurgy industry, mainly used in steel making, continuous casting and other production processes.


Ladle plunger mechanism can realize accurate control of molten steel, improve production efficiency and product quality, and reduce production cost and safety risks. In addition, the ladle plunger mechanism can also be used in other areas where control of liquid or gas flow is required.
