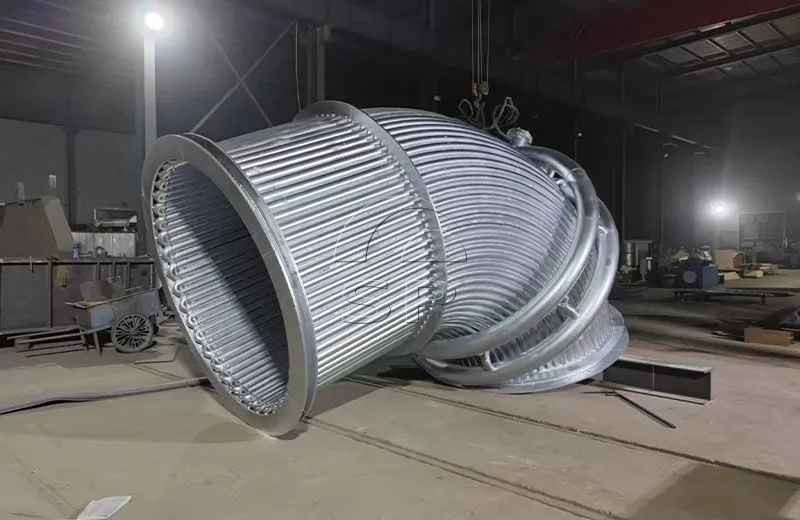

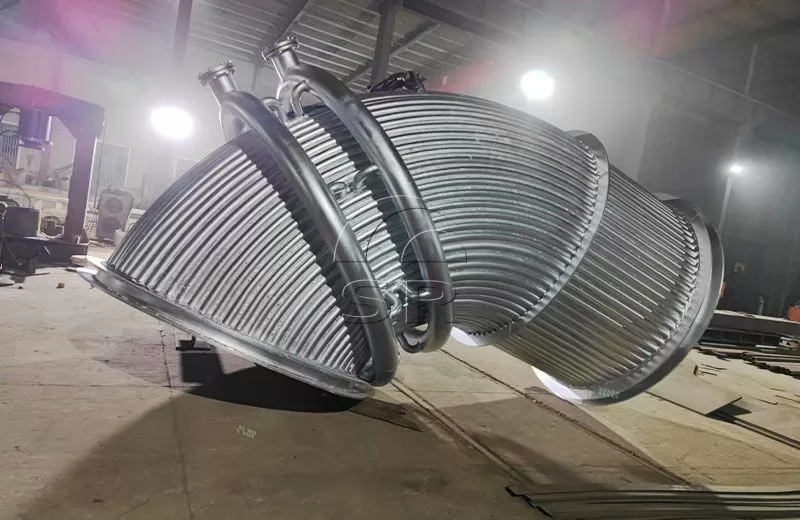

The Water Cooled Roof Elbow is mainly used to change the flow direction of flue gas in the flue gas emission system.
Meanwhile, the water cooling system is used to reduce the temperature of the bend and its surrounding environment to ensure the stable operation of the system.

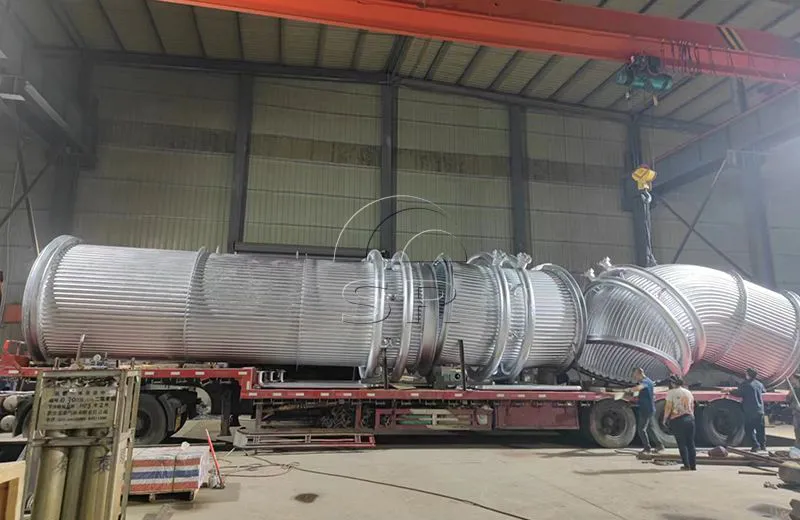

Water Cooled Roof Elbow for Fume Extaction System Introduction
The Water Cooled Roof Elbow is mainly used to change the flow direction of flue gas in the flue gas emission system.
Meanwhile, the water cooling system is used to reduce the temperature of the bend and its surrounding environment to ensure the stable operation of the system.
Application
Water Cooled Roof Elbow is widely used in the flue gas emission system of submerged arc furnace, electric arc furnace, steel smelting and other industries, and is one of the important equipment to ensure the safety, efficiency and environmental protection of the smelting process.
Features
Materials
High-temperature and corrosion resistant metal materials, such as stainless steel or special alloy steel, are generally used to cope with the high temperature and corrosive environment in the furnace.
Design
Thermal expansion and thermal stress are taken into consideration in the design of bend, and the stability and safety under high temperature are ensured through reasonable layout and structural design.
Water cooling system
The built-in water cooling system takes away the heat on the surface of the bend through the circulating cooling water to reduce the temperature and improve the service life and performance.
Advantage
Change the water cooled elbow flow direction of flue gas: the water cooled roof elbow plays a role in guiding the flue gas flow in the system to ensure that the flue gas can smoothly enter the subsequent treatment equipment.
Improve the exhaust efficiency: the water cooling design effectively reduces the temperature of the bend and its surrounding environment, reduces the energy loss of the flue gas in the exhaust process, and improves the exhaust efficiency.
Reduce environmental pollution: efficient smoke exhaust system helps to reduce the emission of harmful gases and dust generated during smelting and reduce the environmental pollution.
Extending the service life of the equipment: the water cooling system reduces the temperature of the elbow, reduces the impact of thermal stress and corrosion, and prolongs the service life of the equipment.
As an important part of the flue gas emission system, Water Cooled Row Elbow plays an important role in changing the flow direction of flue gas, improving the exhaust efficiency, reducing environmental pollution and extending the service life of equipment through its unique water cooling design and structural characteristics.
In the selection and application process, comprehensive consideration shall be carried out according to the requirements of specific smelting equipment and flue gas emission system.
Related Products
Customized metallurgical machinery and equipment range: Electric Arc Furnace, Submerged Arc Furnace, LF Refining Furnace, Vacuum Furnace, Induction Furnace, Dust Remove System, Water Treatment Equipment, etc. Providing the most advanced equipment integration services, metallurgical equipment can be customized according to different needs of customers, and production capacity can be adjusted according to customer requirements.
Submerged Arc Furnace Open-hole Plugging Machine
Submerged arc furnace open-hole plugging machine refers to the special equipment used to open and block the iron outlet by submerged arc reduction electric furnace for smelting iron alloy.
Submerged Arc Furnace Pressure Ring
Submerged arc furnace pressure ring is used to monitor the change of air pressure in the furnace in real time, and adjust the air pressure automatically or manually according to the preset parameters to ensure the stability of air pressure in the furnace
Submerged Arc Furnace Combined Holder
Series submerged arc furnace combined holder electrode includes: 12.5MVA submerged arc furnace electrode, 16.5MVA submerged arc furnace electrode, 25.5MVA submerged arc furnace electrode, 30.0MVA submerged arc furnace electrode, etc.
Furnace Cover Lifting and Rotating Device
The furnace cover lifting and rotating device consists of a furnace cover lifting mechanism, a rotating mechanism and a rotating frame.
There are many insulation links between the EAF electrode holder and the conductive cross arm body, which greatly simplifies the cconductive cross arm structure and is a new type of electrode arm on the ultra-high power arc furnace.
The water-cooled furnace cover of the arc furnace adopts the tubular frame water-cooling furnace cover, and the water-cooled cover is designed as per two halves for the convenience of replacement and transportation.
Generally, the furnace cover of the electric arc furnace adopts the tubular water-cooled closed tube furnace cover structure.
Short network bus systems), also known as high current line, refers to the general term of the carrier fluid from the secondary outlet terminal of the transformer to the electrode (including the electrode).
